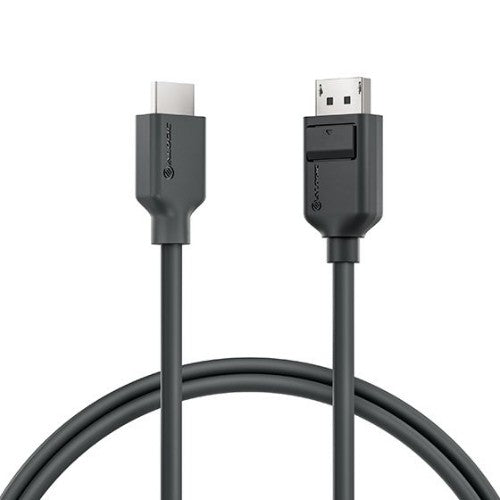

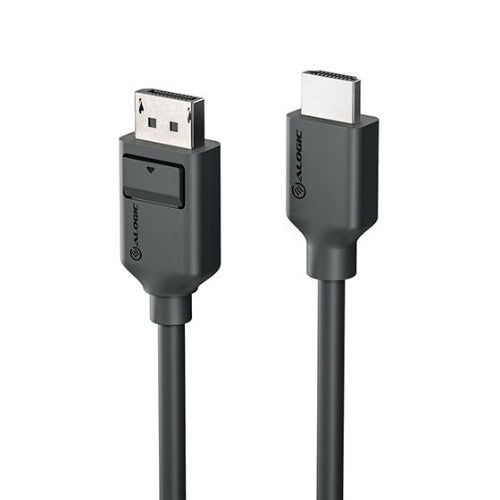

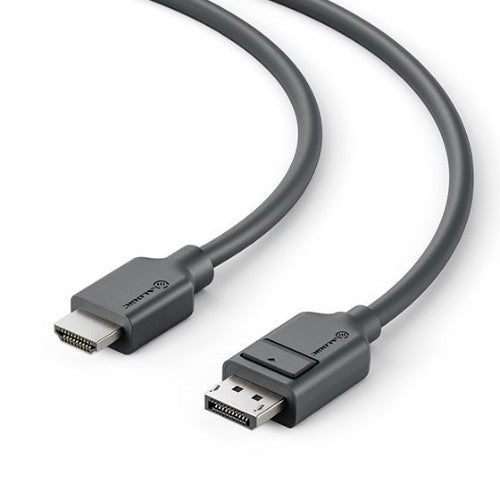

Elements DisplayPort to HDMI Cable - 1m
Key Features
- Connects DisplayPort DP++ sources [including laptops] to HDMI displays [including computer monitors]
- Supports resolution up to 4K [30Hz] and Full HD 1920X1080 [144Hz]
- Data rates up to 10.2Gbps. Supports 3D video and colour depth to 48 bits -16 bits per colour
- Highly bendable cable for tight spaces
Description
The Cable for Crisp HDMI DisplaysALOGIC’s Elements Series DisplayPort to HDMI Cable [Male to Male] is the price-friendly cable for homes and businesses that need to marry a DisplayPort source [such as a computer] with an HDMI display [such as a computer monitor or projector].
Your warranty-backed Elements cables support HDMI resolutions up to the HDMI 1.4 maximum of 4K [30Hz] and Full HD 1920x1080 [144Hz].
Now you’re equipped for crisp and reliable displays when it’s time to take a video call, present to your team, scroll visual documents or web pages, or add an additional external display to your desk.
User-Friendly CablesWhether you’re looking to install one of our 30AWG cables in your home, or to fit out a workplace, rest assured that ALOGIC’s Elements range is engineered for maximum user-friendliness.
The highly bendable Elements cables feature compact connectors and low-bend radiuses. Their anatomy, which also features easy-grip PVC jacketing, makes them considerably easier to guide into ports in tight spaces, such as behind displays, and in equipment racks.
Our cables also feature a latch, so once you plug them in, they stay in.
Your Cable When Reliability is EssentialConnector construction undermines the longevity of many DisplayPort cables. That’s why our engineers and designers have developed a unique ABS connector shell that holds up in high-traffic installation environments.
The Elements range is developed out of ALOGIC’s experience producing hundreds of thousands of cables to stand the test of time in the most demanding professional and household environments.
Whether at home or in the office, be assured that these cables won’t let you down. We vouch for this with a lifetime warranty.
Specifications
| Features |
|---|
| Colour depth |
48 bit |
| HDMI version |
1.4 |
| Product colour |
Black |
| Cable length |
39.4" (1 m) |
| Connector 1 |
DisplayPort |
| Connector 2 |
HDMI |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
30 |
| Data transfer rate |
10.2 Gbit/s |
| 3D |
Yes |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
144 Hz |
| Cable type |
Round cable |
| Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
| Refresh rate at maximum resolution |
30 Hz |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
