Thunderbolt 4 BLAZE Docking Station
Key Features
- 3 x USB-C Thunderbolt 4/USB 4.0 (40 Gbps/3A), 3 x USB-A 3.1 Gen 2 (10Gbps), 1 x USB-A 2.0 (480Mbps) BC1.2 (1.5A), 1 x 3.5mm Combo Jack, , 1 x Gigabit Ethernet Port,1 x SD Card Reader (SD 4.0)
- Dual 4K@60Hz Display Support
- Up to 96W power to laptop
- Premium Aluminium Design
Description
Thunderbolt 4 Blazing PerformanceDesigned for when speed and performance matter, the dock provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt docks which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE docking station can connect up to 3x downstream Thunderbolt 4 / USB 4.0 peripherals. With the addition of the inbuilt SD 4.0 card reader this dock offers unparalleled productivity for creative professionals.
Single Cable Simplicity –96W ChargingThis dock truly does it all –and all over a single cable. In addition to transferring data and video over a single connection to the computer, the dock can also provide up to 96W of power to charge laptops using USB Power Delivery technology. This is sufficient to power almost any notebook PC including 16” MacBook devices.

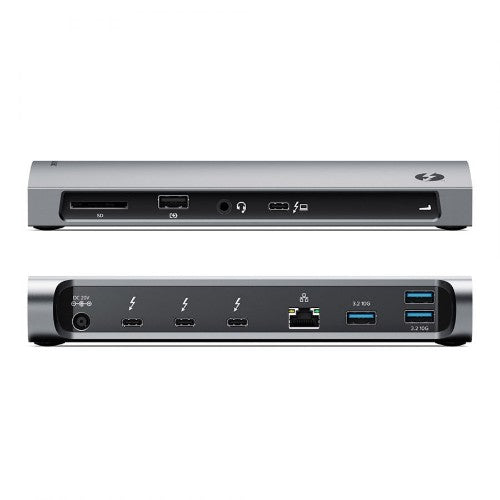

Comprehensive ConnectivityThe ALOGIC BLAZE dock features a comprehensive range of ports to allow connection of all standard peripherals including:
- 3 x Thunderbolt/USB-C (40G)
- 3 x USB-A (10G)
- 1 x USB-A with Mobile Device Charging (480Mbps)
- Gigabit Ethernet
- Combo Headphone/Microphone Jack
- SD 4.0 Card Reader

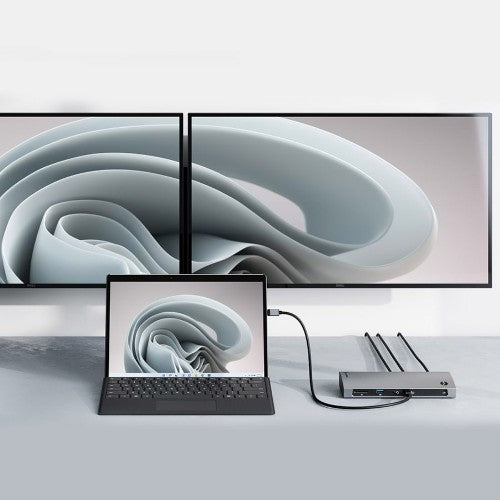

Dual Ultra-High Definition Display: 4K@60HzThe BLAZE dock provides dual monitor support for Thunderbolt equipped host computers and single monitor support for hosts connected using USB-C (DP Alt Mode) as follows:
- Thunderbolt 3 or 4: Dual 4K monitors at 60Hz
- USB-C (DP Alt Mode): Single 4K monitor at up to 60Hz
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Headphone connectivity |
3.5 mm |
| Host interface |
Thunderbolt 4 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Microphone in |
No |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| Thunderbolt 4 ports quantity |
3 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| Card reader integrated |
Yes |
| Compatibility |
Apple, Microsoft |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Compatible memory cards |
SD |
| HD type |
4K Ultra HD |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminum |
| Maximum refresh rate |
60 Hz |
| Technical details |
|---|
| Product colour |
Black |
| Compatibility |
Apple, Microsoft |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
SD |
| Power |
|---|
| Power consumption (max) |
96 W |
| Power supply |
135 W |
| Indication |
|---|
| LED indicators |
Yes |
| Weight & dimensions |
|---|
| Width |
3.31" (84 mm) |
| Depth |
7.64" (194 mm) |
| Height |
1.18" (30 mm) |
| Design |
|---|
| Product colour |
Black |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
