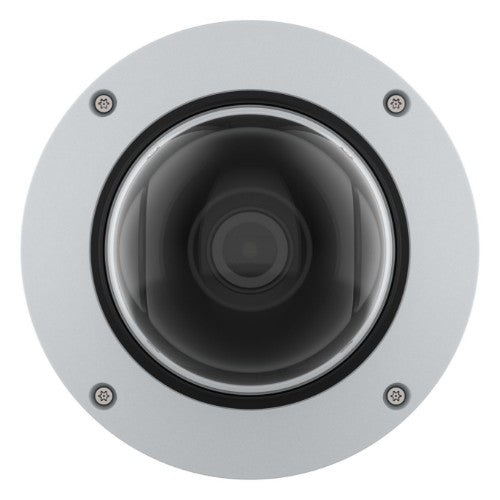

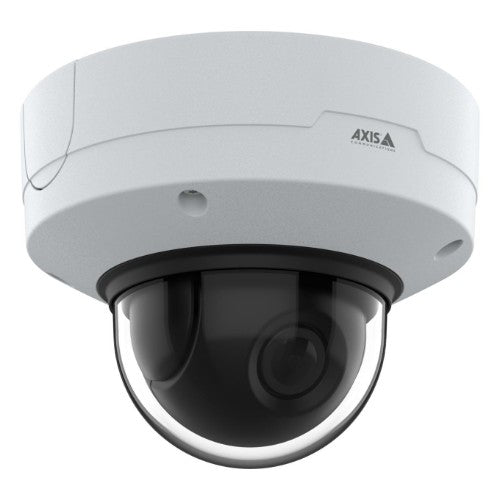

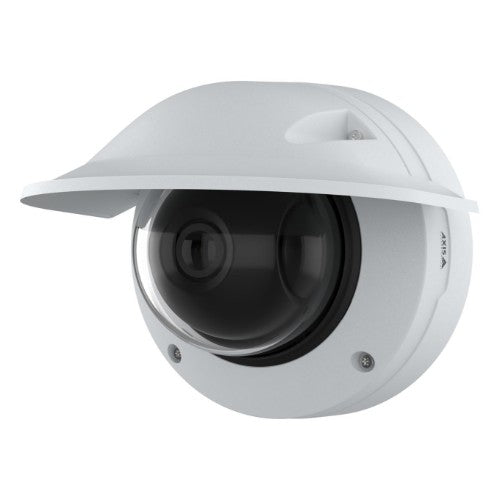

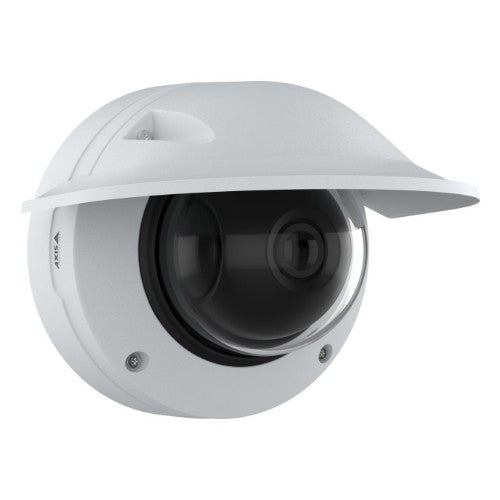

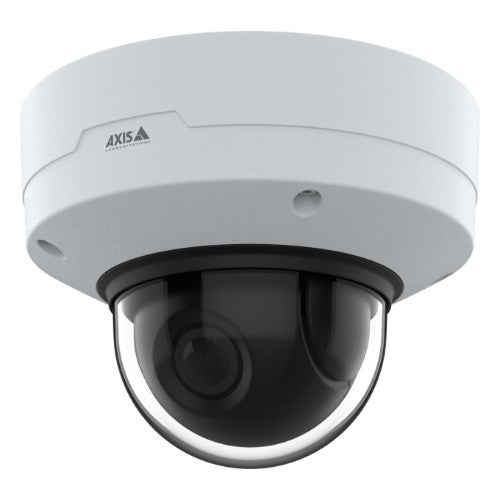

Axis Q3626-VE Dome IP security camera Outdoor 2688 x 1512 pixels Wall

4 MP, CMOS, 1/1.8", WDR, 2688 x 1512, IP66, IP6K9K, IK10

Key Features

• Outstanding image quality in 4 MP
• Remote adjustment of the camera angle
• Analytics with deep learning
• Electronic image stabilization
• Axis Edge Vault

Description

This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it’s quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.

Remotely adjust the field of view
This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.

Outstanding image quality
AXIS Q3626-VE offers outstanding image quality and forensic details in 4 MP resolution—even in low light. Plus, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before—on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.

Robust and ready for tough environments
This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Number of languages	18
Languages support	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Processor model	ARTPEC-8
PTZ modes	Digital PTZ
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Design
IK code	IK10
Form factor	Dome
Product colour	White
Mounting type	Wall
International Protection (IP) code	IP66
Housing material	Aluminum, Polycarbonate (PC)
Camera
Minimum illumination	0.06 lx
Tilt angle range	-8 - 75°
Pan range	0 - 190°
Camera shutter speed	1/91000 - 1 s
Lens viewing angle, horizontal	103 - 52°
Lens viewing angle, vertical	56.2 - 29.6°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/1.8"
Number of sensors	1
Lens system
Maximum aperture number	2.4
Minimum aperture number	1.5
Focal length range	4.3 - 8.6 mm
Night vision
Night vision	Yes
Video
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Privacy masking	Yes
Image stabilizer	Yes
Video compression formats	H.264, H.265, M-JPEG
Maximum resolution	2688 x 1512 pixels
Supported graphics resolutions	160 x 120, 160 x 90, 1280 x 800, 2688 x 1512
Frame rate	60 fps
Video streaming	Yes
Audio
Voice codecs	AGC
Sample rate	48 kHz
Audio system full duplex	Yes
Audio system	2-way
Audio formats supported	AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio detection	Yes
Network
Bluetooth	No
Networking standards	IEEE 802.1x, IEEE 802.3at
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Storage
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory	2048 MB
Flash memory	8192 MB
Ports & interfaces
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Memory
Internal memory	2048 MB
Flash memory	8192 MB
Hard drive
Built-in HDD	No
Technical details
Video compression formats	H.264, H.265, M-JPEG
Type	IP security camera
Form factor	Dome
PTZ control	Yes
Placement supported	Outdoor
Product colour	White
Mounting type	Wall
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Progressive scan	Yes
Warranty period	5 year(s)
Security
Alert notification type	E-mail
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Material
Housing material	Aluminum, Polycarbonate (PC)
Power
Power source type	DC, PoE
Power consumption (max)	25 W
Power consumption (typical)	7 W
DC-in jack	Yes
DC output voltage	10, 28
Certificates
International Protection (IP) code	IP66
Operational conditions
Operating temperature (T-T)	-50 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Height	5.55" (141 mm)
Diameter	7.24" (18.4 cm)
Weight	4.63 lbs (2.1 kg)
Packaging content
Number of cameras	1
Mounting brackets included	Yes
Manual	Yes
Other features
Video compression formats	H.264, H.265, M-JPEG
Warranty period	5 year(s)
