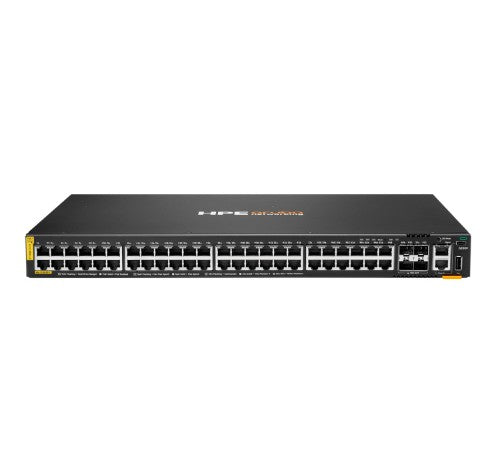

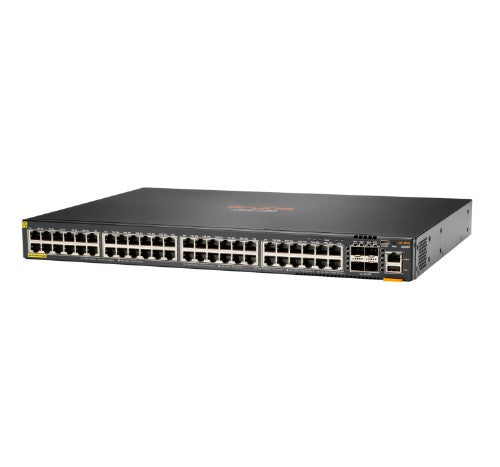

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Description
HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/USB Type-C. MAC address table: 32768 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Console port |
RJ-45/USB Type-C |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| IGMP snooping |
Yes |
| Optical fiber |
|---|
| Transmission distance (max) |
10 km |
| Data transmission |
|---|
| Throughput |
130.9 Mpps |
| Latency (1 Gbps) |
2.28 µs |
| Latency (10 Gbps) |
1.46 µs |
| Packet buffer memory |
8 MB |
| MAC address table |
32768 entries |
| Switching capacity |
176 Gbit/s |
| Security |
|---|
| Authentication |
MAC-based authentication, Web-based authentication |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS, TACACS+ |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Physical stacking (units) |
8 |
| Processor frequency |
1800 MHz |
| Memory type |
SDRAM / Flash |
| Internal memory |
8192 MB |
| Flash memory |
16384 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A72 |
| Packet buffer memory |
8 MB |
| Stackable |
Yes |
| Power |
|---|
| Power consumption (max) |
76 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Redundant power supply (RPS) support |
No |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
17.4" (442 mm) |
| Depth |
12.9" (327 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
11.2 lbs (5.1 kg) |
| Technical details |
|---|
| Physical stacking (units) |
8 |
| Form factor |
1U |
| Stackable |
Yes |
| Processor frequency |
1800 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Memory |
|---|
| Packet buffer memory |
8 MB |
| Memory type |
SDRAM / Flash |
| Internal memory |
8192 MB |
| Flash memory |
16384 MB |
