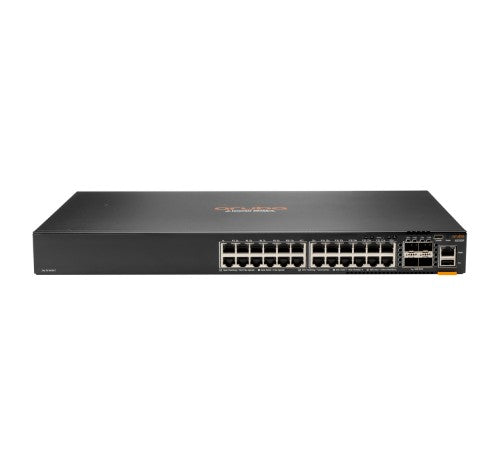

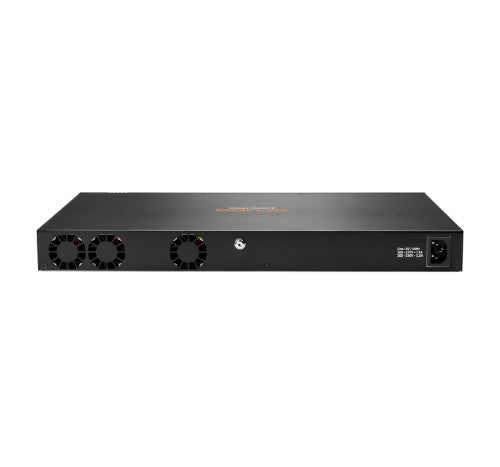

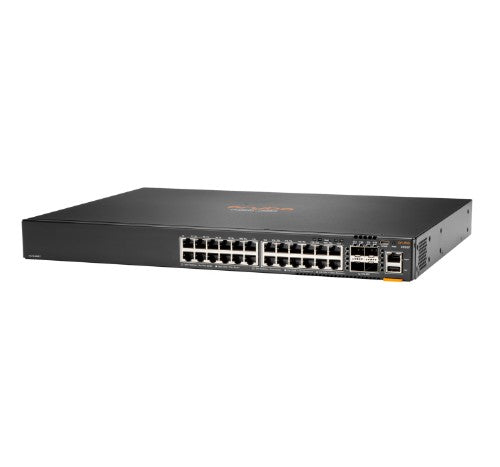

HPE Aruba Networking CX 6200F 24G 4SFP+, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Description
HPE Aruba Networking CX 6200F 24G 4SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 32768 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE.... Rack mounting, Form factor: 1U
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Console port |
RJ-45/USB Type-C |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| IGMP snooping |
Yes |
| Optical fiber |
|---|
| Transmission distance (max) |
10 km |
| Data transmission |
|---|
| Throughput |
95.2 Mpps |
| Latency (1 Gbps) |
2.28 µs |
| Latency (10 Gbps) |
1.46 µs |
| Packet buffer memory |
8 MB |
| MAC address table |
32768 entries |
| Switching capacity |
128 Gbit/s |
| Security |
|---|
| Authentication |
MAC-based authentication, Web-based authentication |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS, TACACS+ |
| Access Control List (ACL) ingress |
5120 |
| Access Control List (ACL) egress |
22048 |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Physical stacking (units) |
8 |
| Processor frequency |
1800 MHz |
| Memory type |
SDRAM / Flash |
| Internal memory |
8192 MB |
| Flash memory |
16384 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A72 |
| Packet buffer memory |
8 MB |
| Stackable |
Yes |
| Power |
|---|
| Power consumption (max) |
59 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
17.4" (442 mm) |
| Depth |
12.9" (327 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
11.2 lbs (5.1 kg) |
| Technical details |
|---|
| Physical stacking (units) |
8 |
| Form factor |
1U |
| Stackable |
Yes |
| Processor frequency |
1800 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Memory |
|---|
| Packet buffer memory |
8 MB |
| Memory type |
SDRAM / Flash |
| Internal memory |
8192 MB |
| Flash memory |
16384 MB |
