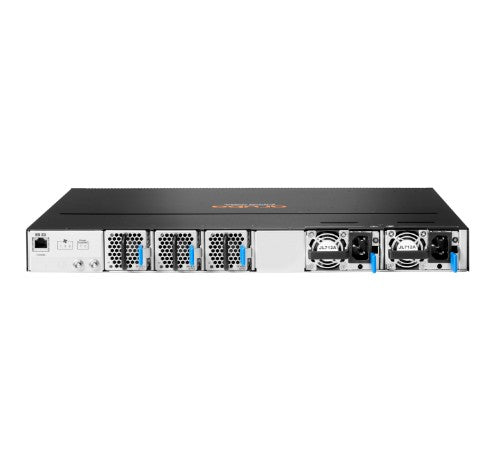

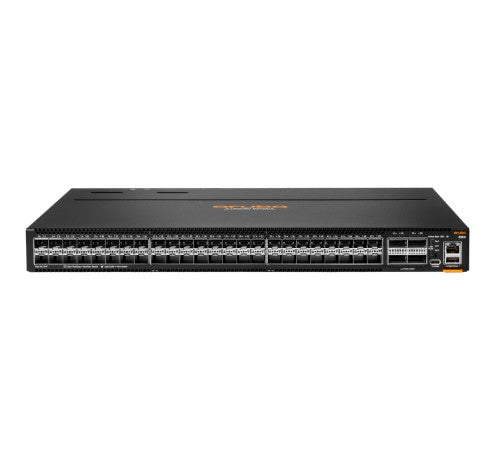

HPE Aruba Networking CX 8100 48x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU, Managed, L3, Rack mounting, 1U
Description
HPE Aruba Networking CX 8100 48x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 147456 entries, Switching capacity: 1760 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack mounting, Form factor: 1U
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
48 |
| Basic switching RJ-45 Ethernet ports quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
No |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Console port |
RJ-45/USB Type-C |
| QSFP28 ports quantity |
4 |
| USB Type-A ports quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
1024 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| 10G support |
Yes |
| Virtual LAN features |
Port-based VLAN |
| IGMP snooping |
Yes |
| MLD entries |
4096 |
| IPv6 multicast entries |
4096 |
| IPv4 multicast entries |
4096 |
| Data transmission |
|---|
| Packet buffer memory |
32 MB |
| MAC address table |
147456 entries |
| Switching capacity |
1760 Gbit/s |
| Jumbo frames support |
Yes |
| Number of VLANs |
1024 |
| Security |
|---|
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS, TACACS+ |
| DHCP features |
DHCP relay, DHCP server |
| Multicast features |
|---|
| Multicast support |
Yes |
| MLD entries |
4096 |
| IPv6 multicast entries |
4096 |
| IPv4 multicast entries |
4096 |
| Protocols |
|---|
| Management protocols |
SNMPv2c, SNMPv3 |
| Routing protocols |
BGP, BGP4, OSPF, RIP-2, RIPng, VRRP |
| Design |
|---|
| Form factor |
1U |
| Stackable |
No |
| Rack mounting |
Yes |
| Airflow direction |
Front-to-back airflow |
| Number of fans |
3 fan(s) |
| Redundant fans support |
Yes |
| Performance |
|---|
| Processor frequency |
1800 MHz |
| Memory type |
RAM / Flash |
| Internal memory |
16384 MB |
| Flash memory |
32768 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A72 |
| Packet buffer memory |
32 MB |
| Stackable |
No |
| Power |
|---|
| Power consumption (max) |
450 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
47/63 Hz |
| Redundant power supply (RPS) support |
Yes |
| Number of power supply units |
2 |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 95% |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Non-operating altitude |
0 - 181102.4" (0 - 4600 m) |
| Heat dissipation |
1535 BTU/h |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
1024 |
| Virtual LAN features |
Port-based VLAN |
| Weight & dimensions |
|---|
| Width |
17.4" (442.5 mm) |
| Depth |
16" (406.4 mm) |
| Height |
1.73" (44 mm) |
| Weight |
18.5 lbs (8.39 kg) |
| Technical details |
|---|
| Form factor |
1U |
| Stackable |
No |
| Processor frequency |
1800 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Memory |
|---|
| Packet buffer memory |
32 MB |
| Memory type |
RAM / Flash |
| Internal memory |
16384 MB |
| Flash memory |
32768 MB |
