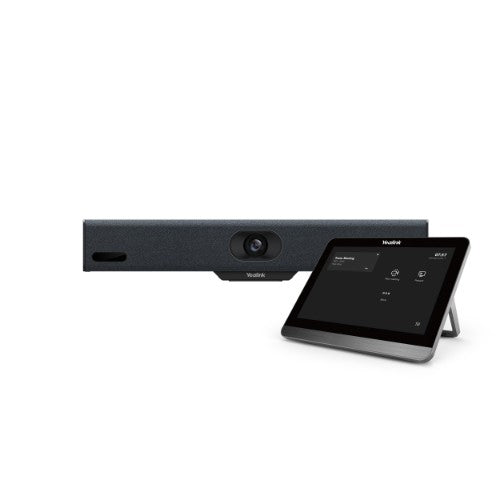

MeetingBar A10-020 - all-in-one video bar - Teams/Zoom/BYOD - video conferencing kit (video bar, touch console CTP18)
Key Features
- Built-in 4k camera with 120° field of view
- AI-powered video features: Auto Framing, Speaker Tracking and Smart Gallary (Zoom supported)
- Built-in 8-MEMS beamforming microphones, full-duplex audio
- AI-enhanced noise cancellation and reverberation suppression
- Intuitive meeting control on the touch panel
Description

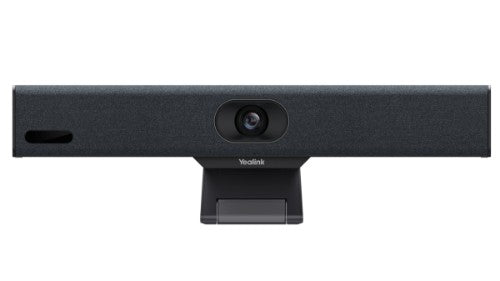

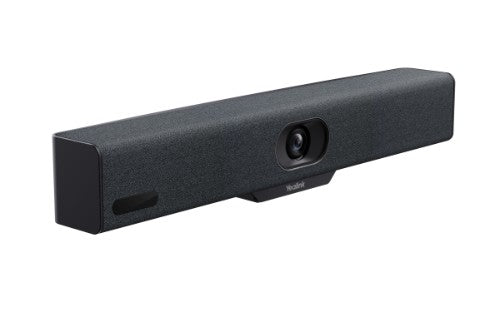

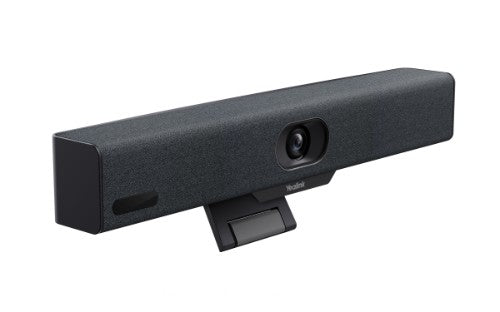

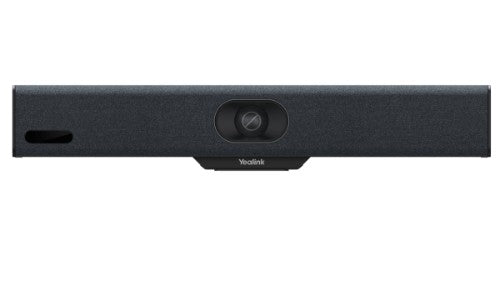

Yealink MeetingBar A10 is an all-ine-one video bar deisgned for small space (1-7 people) and home office. The built-in 4k camera with 120° field of view catches details precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.
Specifications
| Performance |
|---|
| Product type |
Video collaboration bar |
| Product colour |
Black, Gray |
| Wall mountable |
Yes |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
4.2 |
| Number of cameras |
1 |
| Auto framing |
Yes |
| Auto-tracking |
Yes |
| Tracking modes |
Presenter mode |
| Meeting features |
Add participates, Calendar, Content sharing, Hold/Resume, One-click join |
| Technical details |
|---|
| Product type |
Video collaboration bar |
| Product colour |
Black, Gray |
| Wall mountable |
Yes |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
4.2 |
| Number of cameras |
1 |
| Video |
|---|
| HD type |
4K Ultra HD |
| Video codecs |
H.264 High profile, H.264 SVC, H.264 |
| Maximum frame rate |
30 fps |
| Maximum video resolution |
3840 x 2160 pixels |
| Audio |
|---|
| Speaker power |
5 W |
| Echo cancellation |
Yes |
| Built-in speaker(s) |
Yes |
| Audio system full duplex |
Yes |

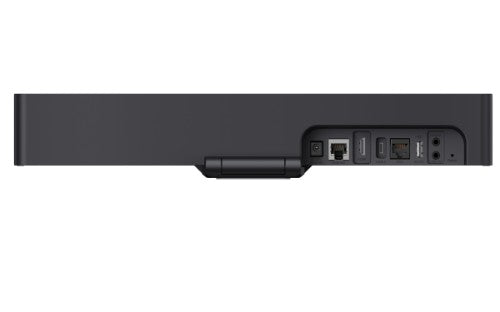

| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Line-out |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| DC-in jack |
Yes |
| Microphone in |
Yes |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI output ports quantity |
1 |
| Reset slot |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Wi-Fi |
Yes |
| Security algorithms |
256-bit AES, EAP-TLS, MSCHAPv2, PEAP, TLS |
| Camera |
|---|
| Horizontal field of view |
105° |
| Remote control interface |
Ethernet |
| Diagonal field of view |
120° |
| Auto Focus (AF) object detection |
People |
| Camera type |
Single camera |
| Camera privacy shutter |
Yes |
| Display |
|---|
| Display diagonal |
8" |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Microphone |
|---|
| Microphone sensitivity |
88 dB |
| Microphone mute |
Yes |
| Number of microphone arrays |
8 |
| Features |
|---|
| Motion sensor |
Yes |
| Cable lock slot |
Yes |
| Computer system |
|---|
| Operating system installed |
Android 10 |
| Mobile operating systems supported |
Android 11.0 |
| Computer case |
|---|
| Operating system installed |
Android 10 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Power |
|---|
| Power consumption (max) |
14 W |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
10.5 W |
| Power source type |
AC |
| DC output voltage |
48 V |
| DC output current |
0.7 A |
| Power consumption (idle) |
10 W |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
| Weight & dimensions |
|---|
| Width |
15" (380 mm) |
| Depth |
2.68" (68 mm) |
| Height |
3.23" (82 mm) |
| Packaging content |
|---|
| Cables included |
HDMI, LAN (RJ-45) |
| Networking cable length |
118.1" (3 m) |
| HDMI cable length |
70.9" (1.8 m) |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
