Intel Core i5-13600 (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 770, NVIDIA Quadro T1000 (8GB GDDR6), LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
Key Features
- Windows 11 Pro 64-bit
- Intel Core i5-13600 (24MB Cache)
- NVIDIA Quadro T1000 (8GB GDDR6)
- 16GB DDR5-SDRAM (1 x 16) & 512GB SSD
Description

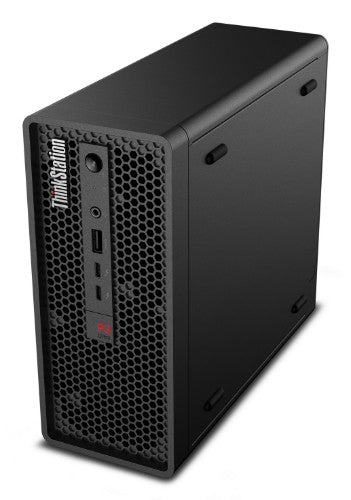

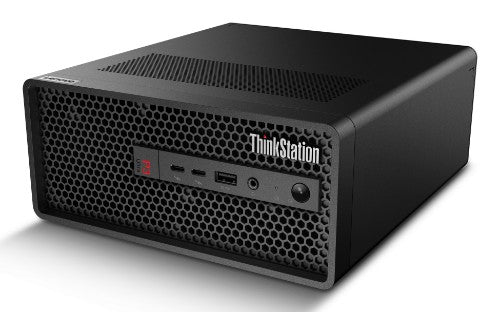

The Lenovo ThinkStation P3 Ultra features a revolutionary form factor that is redefining the power of small. With the latest 13th Gen Intel® Core™ processors, up to NVIDIA RTX™ A5500 mobile graphics, super-fast memory, and cutting-edge storage, this workstation breaks new ground by delivering superior performance and flexibility in a chassis less than four liters in total volume.
Specifications
| Processor |
|---|
| Processor generation |
13th gen Intel® Core™ i5 |
| Bus type |
DMI4 |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Processor model |
i5-13600 |
| Number of processors installed |
1 |
| Processor manufacturer |
Intel |
| Processor boost frequency |
5 GHz |
| Processor threads |
20 |
| Processor cores |
14 |
| Processor family |
Intel® Core™ i5 |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core base frequency |
2.7 GHz |
| Efficient-core base frequency |
2 GHz |
| Processor base power |
65 W |
| Maximum turbo power |
154 W |
| Efficient-core Max Turbo Frequency |
3.7 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Memory |
|---|
| Non-ECC |
Yes |
| Internal memory |
16 GB |
| Memory layout (slots x size) |
1 x 16 GB |
| Maximum internal memory |
128 GB |
| Memory slots |
4x SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Optical drive type |
No |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Card reader integrated |
No |
| Total storage capacity |
512 GB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
Yes |
| Discrete graphics card memory |
8 GB |
| Graphics card Mini DisplayPort ports quantity |
4 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
NVIDIA Quadro T1000 |
| Discrete graphics memory type |
GDDR6 |
| On-board graphics card model |
Intel UHD Graphics 770 |
| Number of discrete graphics cards |
1 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates |
1000,2500,100 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| Ethernet LAN (RJ-45) ports |
2 |
| DisplayPorts quantity |
3 |
| DisplayPort version |
1.2 |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Workstation |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
Mini Tower |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Motherboard chipset |
Intel W680 |
| Design |
|---|
| Volume |
3.9 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
Mini Tower |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Performance |
|---|
| BIOS type |
UEFI |
| Audio chip |
Realtek ALC897-Q |
| Number of speakers |
1 |
| Password protection |
Yes |
| Password protection type |
BIOS, Power on, Supervisor |
| Product type |
Workstation |
| Trusted Platform Module (TPM) |
Yes |
| Built-in speaker(s) |
Yes |
| Motherboard chipset |
Intel W680 |
| Software |
|---|
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
|---|
| CPU configuration (max) |
1 |
| Power |
|---|
| Power supply input voltage |
100 - 240 V |
| Power supply |
300 W |
| Operational conditions |
|---|
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
10 - 35 °C |
| Non-operating altitude |
0 - 480000" (0 - 12192 m) |
| Certificates |
|---|
| Certification |
EPEAT Gold Registered
ENERGY STAR 8.0
TCO Certified 9.0
RoHS compliant
MIL-STD-810H |
| Weight & dimensions |
|---|
| Volume |
3.9 L |
| Width |
3.43" (87 mm) |
| Depth |
8.78" (223 mm) |
| Height |
7.95" (202 mm) |
| Weight |
7.94 lbs (3.6 kg) |
| Packaging content |
|---|
| Mouse included |
Yes |
| Display included |
No |
| Keyboard included |
Yes |
| Other features |
|---|
| Number of speakers |
1 |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
Intel |
| Built-in speaker(s) |
Yes |
