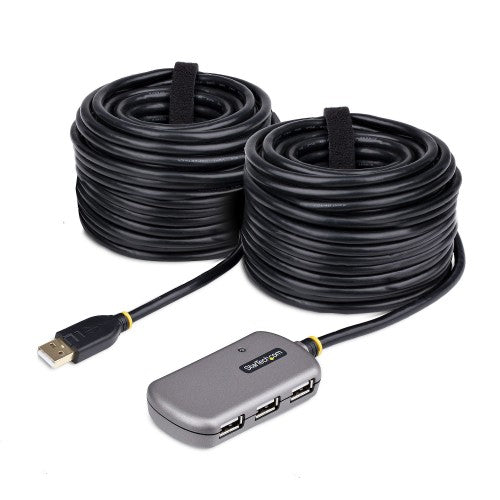

StarTech.com USB Extender Hub, 24m USB 2.0 Extension Cable with 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, Optional 10W Power Supply Included, Level 4 ESD Protection (U02442-USB-EXTENDER)
Key Features
- LONG-RANGE ACTIVE USB EXTENDER: USB-A Hub with 4x USB 2.0 ports and active extension cable 78.7ft (24m); Power the USB extension cable via bus-power or the included power adapter; Add a 2nd USB extender Hub for a maximum distance of 157.4ft (48m)

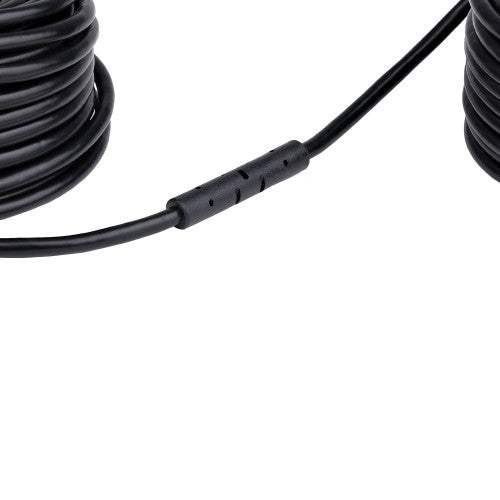

- STABLE SIGNAL: The booster chip located in the middle of the cable maintains signal quality and ensures optimal performance; The included power adapter (5V/2A DC) is not required in most scenarios; Power adapter allows up to 5V 0.5A per port
- FLEXIBLE INSTALLATION: Active electronics allow the compact 4-port USB extension cable to work via bus-power when no power outlets are available; Achieve a maximum range of 157.4ft (48m) by daisy-chaining two units
- COMPATIBILITY: The USB extender supports wake-on-USB to wake host systems remotely; Backward compatible with USB 1.1/1.0; Driverless and OS independent; Adds an extra layer of safety to your devices with Level 4 ESD protection (15kV air and 8kV contact)
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB hub for laptops is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Description

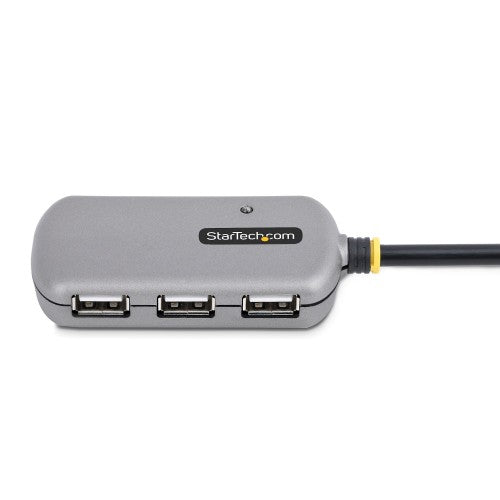

USB Extender Hub | USB 2.0 Extension Cable with 4-Port USB Hub | Bus-Powered | 78.7ft Long Cable
The 4-Port USB 2.0 Extension Cable (78.7ft/24m) enables multiport connectivity at distances that exceed standard USB 2.0 distance and power source limitations. Daisy chain two USB active extension cables for a maximum range of 157.4ft (48m).
Power Options

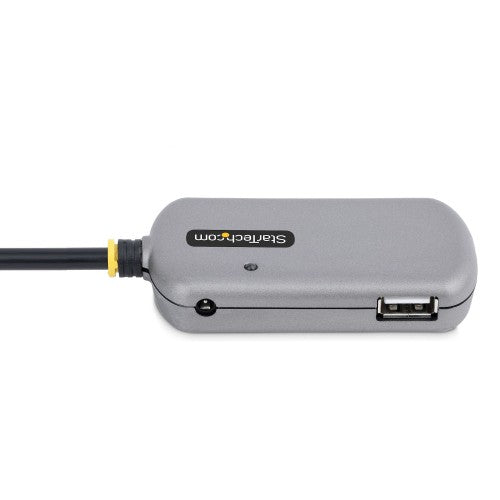

Active electronics allow the USB-A Hub to work without external power, multiplying the installation possibilities and accelerating any deployment. In addition, the 5V2A DC power adapter supports USB peripherals requiring additional power.
Control multiple USB peripherals in remote locations (e.g., webcams, CCTV remote monitoring, remote printers, SSDs, HDDs, scales, mice, keyboards, and other devices), using this 4-port 78.7ft (24m) USB extension cable.
Host and Device Compatibility
The backward compatibility with USB 1.1 and 1.0 ensures functionality with legacy equipment. The hub/cable features plug and play (PnP) setup on any operating system, enabling rapid deployment.
The level 4 ESD protection (15kV air and 8kV contact) and the cable shielding enhance USB device safety and minimize EMI.
The USB extender hub is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specifications
| Technical details |
|---|
| Type |
Console repeater |
| LED indicators |
Power |
| Housing material |
Plastic |
| Data transfer rate |
480 Mbit/s |
| Maximum transfer distance |
944.9" (24 m) |
| Product colour |
Black, Silver |
| Certification |
CE |
| Ports & interfaces |
|---|
| USB 2.0 Type-A ports quantity |
4 |
| Weight & dimensions |
|---|
| Package width |
7.09" (180 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
2.17" (55 mm) |
| Package weight |
2.2 lbs (1 kg) |
| Width |
1.65" (42 mm) |
| Height |
0.669" (17 mm) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 75 °C |
| Operating relative humidity (H-H) |
30 - 70% |
| Colour |
|---|
| Product colour |
Black, Silver |

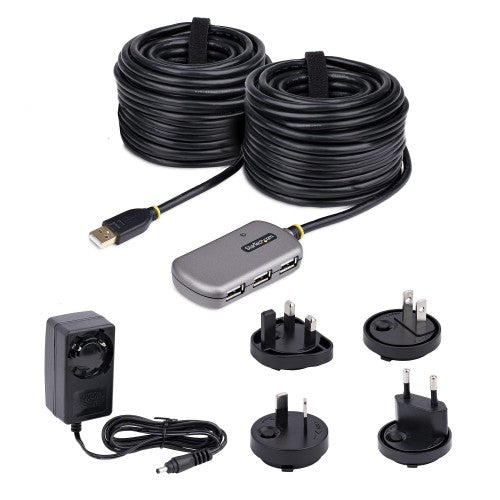

| Packaging content |
|---|
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Power |
|---|
| Power source type |
DC |
| Power consumption (typical) |
10 W |
| Input voltage |
100 - 240 V |
| Output voltage |
5 V |
| Output current |
2 A |
| Input current |
0.4 A |
| Logistics data |
|---|
| Master (outer) case width |
9.84" (250 mm) |
| Master (outer) case length |
16.7" (425 mm) |
| Master (outer) case height |
14.2" (360 mm) |
| Products per master (outer) case |
10 pc(s) |
