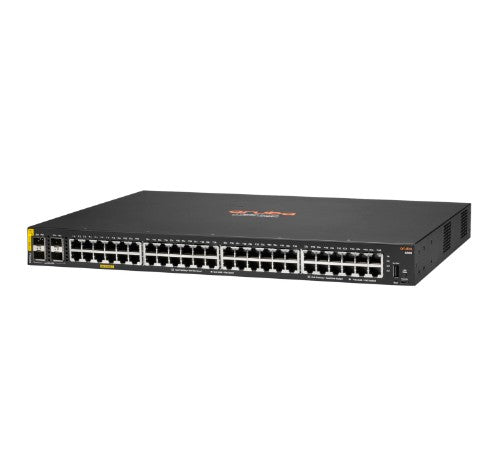

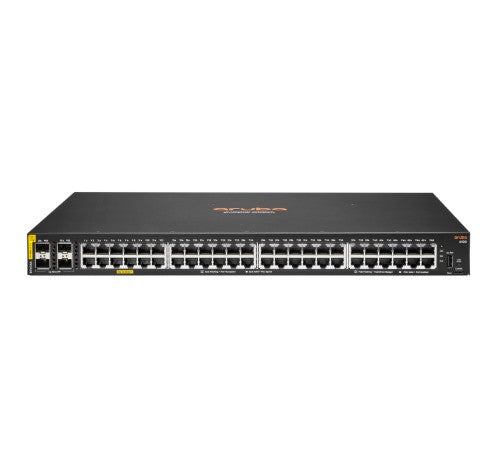

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Wall mountable
Description
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L3 |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Number of VLANs |
4094 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| 10G support |
Yes |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Throughput |
98.6 Mpps |
| Latency (1 Gbps) |
1.9 µs |
| Latency (10 Gbps) |
1.8 µs |
| Packet buffer memory |
12.38 MB |
| MAC address table |
8192 entries |
| Switching capacity |
176 Gbit/s |
| Number of VLANs |
4094 |
| Security |
|---|
| Authentication |
MAC-based authentication, Web-based authentication |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS, TACACS+ |
| DHCP features |
DHCP relay, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Management protocols |
SNMPv1, SNMPv2c, SNMPv3 |
| Design |
|---|
| Wall mountable |
Yes |
| Form factor |
1U |
| Stackable |
No |
| Rack mounting |
Yes |
| Airflow direction |
Side-to-side airflow |
| Performance |
|---|
| Processor frequency |
1016 MHz |
| Memory type |
DDR3-SDRAM |
| Internal memory |
4096 MB |
| Flash memory |
16384 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A9 |
| Packet buffer memory |
12.38 MB |
| Stackable |
No |
| Power |
|---|
| Power consumption (max) |
890 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
740 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 90% |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 181102.4" (0 - 4600 m) |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4094 |
| Weight & dimensions |
|---|
| Width |
17.4" (442.5 mm) |
| Depth |
12.8" (324.2 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
10.4 lbs (4.7 kg) |
| Technical details |
|---|
| Form factor |
1U |
| Stackable |
No |
| Processor frequency |
1016 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Memory |
|---|
| Packet buffer memory |
12.38 MB |
| Memory type |
DDR3-SDRAM |
| Internal memory |
4096 MB |
| Flash memory |
16384 MB |
