2.4GHz (574Mbps), 5GHz (2402Mbps), 1× Gigabit Ethernet (RJ-45), Wi-Fi 6 802.11ax/ac/n/g/b/a, 280.4 x 106.5 x 56.8 mm
Key Features
- Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology
- Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO
- 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160
- Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure
- Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
- Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
- PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app
Description
Fast and Smooth
Outdoor WiFi
AX3000 Indoor/Outdoor WiFi 6 Access Point- AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
- 160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
- High-Security WiFi 6
WAP3 encryption, Captive Portal (SMS, Facebook Wi-Fi, Voucher), and 802.1x authentication
- Long-Range Coverage
Professional Smart Antenna technology and dedicated high-power amplifier
- Omada Mesh Technology
Flexible wireless deployment without additional cabling
- Easy and Flexible Installation
Supports both 802.3at PoE+ and Passive PoE (adapter included) for flexible installation
- Seamless Roaming
Uninterrupted streaming when moving between APs
- IP67 Waterproof & Dustproof
Resistant to lightning, dust ingress, shock, vibration, and moisture
- Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud
Ideal for Small, Medium, and Large Business Outdoor WiFi CoverageOutdoor WiFi for Business Scenarios
Power up Your Business with New-Era Business WiFi 6WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Lightning-Fast AX3000 WiFi 6 SpeedsNew-era business Wi-Fi 6 with speeds up to 2976 Mbps brings more than twice the speed of Wi-Fi 5.*1 Every application feels more fluid with drastically improved Wi-Fi speeds.
Long-Range CoverageProfessional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.
Experience the Peak of
WiFi 6 with Smart AntennasTP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.
Flexible Deployment with Omada Mesh and PoE SupportLess Wiring with Mesh
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

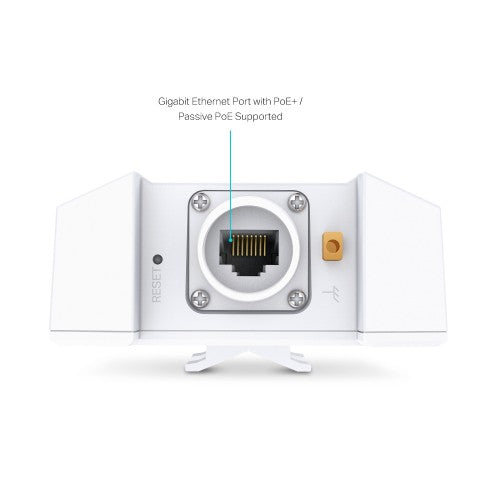

Powered with PoE+ Switch
Powered and connected by an 802.3at PoE+ switch using one single cable for convenient deployment.
Powered with Passive PoE
Powered and connected by the provided passive PoE adapter using one single cable, ideal for home WiFi deployment.
Always Stay Smooth with Seamless RoamingEnsures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

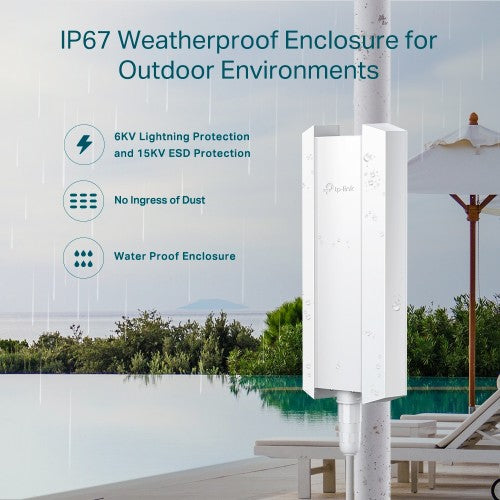

IP67 Weatherproof Enclosure for Outdoor EnvironmentsEAP650-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.
Versatile Mounting SolutionsOur mounting kits provide flexible installation, whether inside or outside.

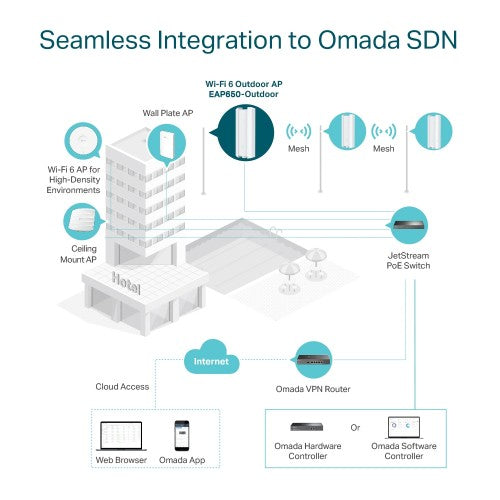

Seamless Integration into the Omada SDN PlatformThe Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Management with the OmadaFollow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a phone or tablet.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
3000 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Automatic channel selection |
Yes |
| Reset button |
Yes |
| Number of users |
250 user(s) |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Certification |
CE, FCC, RoHS |
| Maximum data transfer rate |
3000 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Network |
|---|
| Number of users |
250 user(s) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at |
| Management features |
|---|
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Features |
|---|
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Automatic channel selection |
Yes |
| Number of users |
250 user(s) |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Maximum data transfer rate |
3000 Mbit/s |
| Automatic channel scanning |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2402 Mbit/s |
| Fit AP mode features |
Mesh networking |
| BeamForming |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| MAC address filtering |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs, SSID broadcast on/off |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Cabling technology |
10/100/1000Base-T(X) |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| International Protection (IP) code |
IP67 |
| Placement |
Pole, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Yes |
| Certification |
CE, FCC, RoHS |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Technical details |
|---|
| Reset button |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Indication |
|---|
| LED indicators |
Yes |
| Software |
|---|
| Automatic channel scanning |
Yes |
| Weight & dimensions |
|---|
| Width |
11" (280.4 mm) |
| Depth |
4.19" (106.5 mm) |
| Height |
2.24" (56.8 mm) |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
