Description
Key Features
- SLC caching accelerates burst performance
- PCIe Gen4 x4
- Global wear leveling
- StaticDataRefresh technology ensures data integrity
- Data shaping increases endurance
- Intelligent garbage collection routines for advanced free space management
- NVMe Deallocate function support (NVMe equivalent of TRIM command)
- Host memory Buffer (HMB) support (OS dependent)
- S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) support
Description

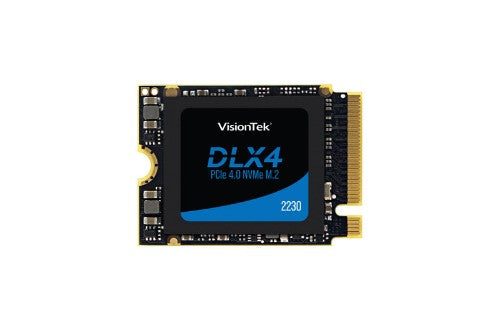

VisionTek DLX4 2230 M.2 PCIe 4.0 x4 SSD (NVMe)Powered by the Innogrit IG5220 controller, VisionTek DLX4 2230 M.2 NVMe SSDs offers speed and reliability for professionals, gamers and everyday users. With read speeds up to 5200MB/s and write speeds up to 4775MB/s take your storage to the next level.
VisionTek DLX4 2230 M.2 PCIe 4.0 x4 SSD (NVMe)
The VisionTek DLX4 M.2 NVMe SSD is designed to bring ultra-fast, reliable storage to PC users. With the shift from the hard disk drive to the solid state drive the VisionTek DLX4 M.2’s provide a drop-in replacement option for the hard disk drive (HDD) for M.2 NVMe compatible systems. It delivers superior reliability, durability, performance and power efficiency - keeping your system working reliably in the toughest of conditions.
Conforming to the industry standard NVMe connector specification, these SSDs integrate easily into compatible infrastructures. The VisionTek DLX4 Pro M.2’s provide high bandwidth and IOPS while efficiently managing write amplification. Employing M.2 NVMe SSDs in a compatible system enables faster boot times, quicker application load times, lower power consumption, and enhanced reliability.
Speed / Performance
Start your system in seconds, load files almost instantly, and accelerate the most demanding applications with VisionTek solid state drives. With the advancements in SSD technology, you can open a program and have it load immediately. Unlike a mechanical hard drive, an SSD has no moving parts ensuring faster performance, longer device life and more secure data.
Easy to Install
A solid state hard drive is easy to install, in just a few minutes time you can upgrade your internal system storage. No need to pay someone else, the installation of an SSD is quick and easy! Consult your system manufacturers documentation for system specific installation instructions.
Specifications
| Hard drive | |
|---|---|
| PCI Express interface data lanes | x16 |
| SSD capacity | 2 TB |
| Memory type | 3D NAND |
| Data transmission | |
| Read speed | 5200 MB/s |
| Write speed | 4775 MB/s |
| Random write (4KB) | 288 IOPS |
| Random read (4KB) | 370 IOPS |
| Endurance | |
| Mean time between failures (MTBF) | 1500000 h |
| Features | |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| PCI Express interface data lanes | x16 |
| SSD capacity | 2 TB |
| S.M.A.R.T. support | Yes |
| Read speed | 5200 MB/s |
| Write speed | 4775 MB/s |
| Memory type | 3D NAND |
| Random write (4KB) | 288 IOPS |
| Random read (4KB) | 370 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Hardware encryption | Yes |
| SSD form factor | M.2 |
| M.2 key ID | M |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Power | |
| Power consumption (read) | 4.75 W |
| Power consumption (idle) | 0.3 W |
| Performance | |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| PCI Express interface data lanes | x16 |
| SSD capacity | 2 TB |
| S.M.A.R.T. support | Yes |
| Read speed | 5200 MB/s |
| Write speed | 4775 MB/s |
| Memory type | 3D NAND |
| Random write (4KB) | 288 IOPS |
| Random read (4KB) | 370 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Hardware encryption | Yes |
| Design | |
| SSD form factor | M.2 |
| Weight & dimensions | |
| Width | 1.65" (42 mm) |
| Weight | 0.247 oz (7 g) |
| Depth | 0.866" (22 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Operating vibration | 3.1 G |
| Technical details | |
| Interface | PCI Express 4.0 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Operating vibration | 3.1 G |
| Hardware encryption | Yes |
| SSD form factor | M.2 |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
