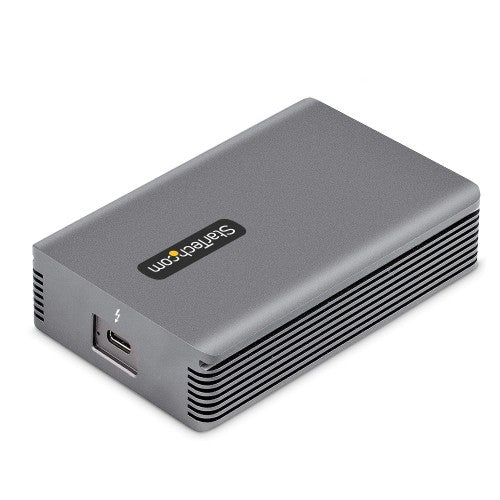

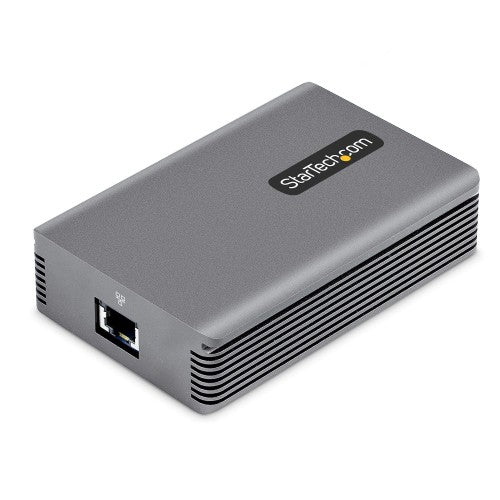

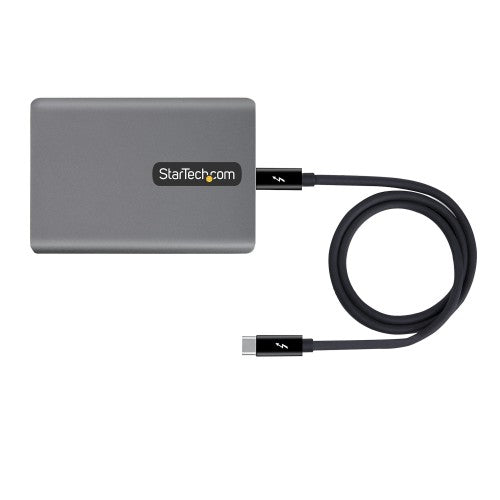

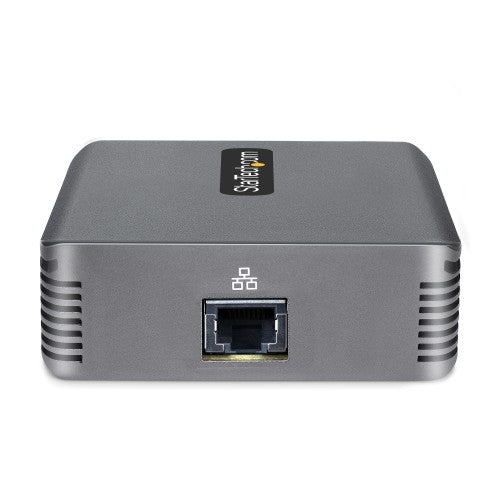

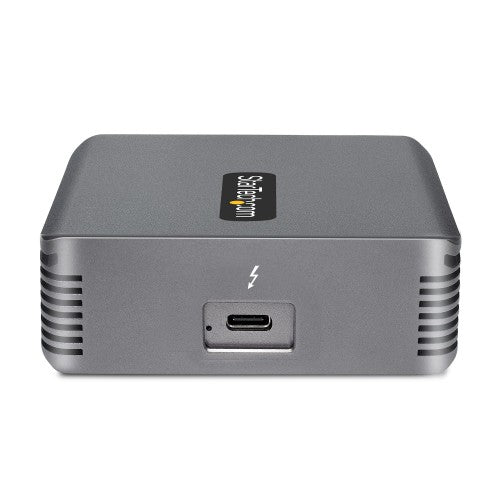

StarTech.com TB310G2 network card Ethernet 40000 Mbit/s

StarTech.com Thunderbolt 3 to Ethernet Adapter, 10GbE, Multi-Gigabit, Thunderbolt 3 to RJ45 Network Adapter, 10GBASE-T/5-2.5GBASE-T NIC, 10G Network Adapter w/ TB3-Certified Cable, Win/Mac (TB310G2)

Key Features

• THUNDERBOLT 3 TO ETHERNET ADAPTER: Thunderbolt Ethernet Adapter adds one multi-Gigabit RJ45 port to a Thunderbolt 3/4 enabled computer enabling connection to 1G, 2.5G, 5G, and 10G networks
• FULL 10G PERFORMANCE: Leverage the high-speed capabilities of Thunderbolt 3 to attain speeds of up to 10GbE, using this Thunderbolt to Ethernet NIC Adapter; Marvell AQC107S chipset facilitates plug and play (PnP) support on Windows and macOS
• USER FRIENDLY: Included detachable and certified 27.5in (70cm) Thunderbolt 3 cable ensures reliable network performance; Simplify deployment, installation, and maintenance with features such as Wake-on-LAN, Status LEDs, Autonegotiation, and NBASE-T support
• PORTABLE AND DURABLE: Bus-powered Thunderbolt 3 (TB3) 10G Network Adapter features a compact and portable form factor; Durable all-aluminum chassis acts as a heatsink, for silent passive cooling
• CONNECTIVITY TOOLS: Optimize the performance and security of this Thunderbolt to Gigabit Ethernet Adapter, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)

Description

Marvell AQC107S provides up to 10GbE speeds with plug-and-play support in Windows/macOS

This Thunderbolt to Ethernet 10G adapter is a robust and durable solution for IT professionals looking to add an RJ45 port to their Thunderbolt-enabled computer. This adapter supports multi-gigabit speeds, including 10/5/2.5/1Gb/s and 100Mb/s Base-T speeds. In addition, 10GBASE-T and 5GBASE-T/2.5GBASE-T (NBASE-T) capabilities ensure compatibility with the latest network switches and access points.

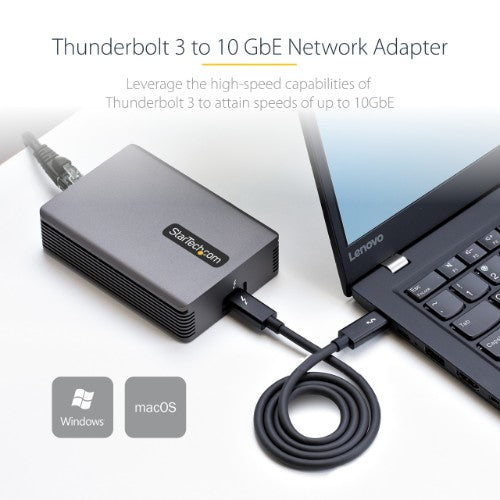

10GbE Network Speeds

A Thunderbolt 3 to RJ45 is the ideal accessory for bandwidth-intensive tasks, server maintenance, high-performance storage, or streaming online content. The adapter is powered by the Marvell AQC107S, providing high-speed 10GbE speeds and supports plug-and-play in Windows and macOS for straightforward deployment.

Quiet and Compact Design

This Thunderbolt 3 NIC is a portable and convenient peripheral for on-the-go users with a footprint of just 4.27x2.9x1.14in (108.5x75x29.1mm). The aluminum chassis utilizes passive cooling for noiseless operation. Activity and computer link LEDs provide status at a glance.

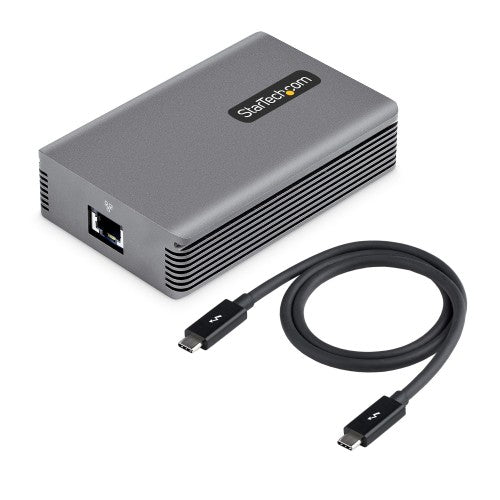

The Thunderbolt to NIC adapter includes a certified 27.5in (70cm) Thunderbolt 3 cable, which ensures maximum performance on Thunderbolt 3 and 4 computers.

This TAA-compliant Thunderbolt 3 NIC is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal	No
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	Thunderbolt 3
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	40000 Mbit/s
Technical details
Product colour	Gray
Auto MDIX IEEE	Yes
Cable length	27.6" (0.7 m)
Network
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Jumbo frames	16000
Ethernet LAN	Yes
Cabling technology	10GBase-T
Networking standards	IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Full duplex	Yes
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Maximum data transfer rate	40000 Mbit/s
Design
Product colour	Gray
Internal	No
LED indicators	Activity, Link
Component for	PC
Housing material	Aluminum
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Indication
LED indicators	Activity, Link
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	4.25" (108 mm)
Depth	2.95" (75 mm)
Height	1.14" (29 mm)
Weight	17.6 oz (500 g)
Package width	6.69" (170 mm)
Package depth	5.28" (134 mm)
Package height	2.91" (74 mm)
Package weight	24.7 oz (700 g)
Packaging data
Package width	6.69" (170 mm)
Package depth	5.28" (134 mm)
Package height	2.91" (74 mm)
Package weight	24.7 oz (700 g)
Quick installation guide	Yes
Cables included	Thunderbolt
Packaging content
Quick installation guide	Yes
Cables included	Thunderbolt
Performance
Auto MDIX IEEE	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Cable length	27.6" (0.7 m)
Logistics data
Master (outer) case width	12.5" (318 mm)
Master (outer) case length	15.6" (395 mm)
Master (outer) case height	12.3" (313 mm)
Products per master (outer) case	20 pc(s)
Other features
Jumbo frames	16000
Housing material	Aluminum
Cable length	27.6" (0.7 m)
