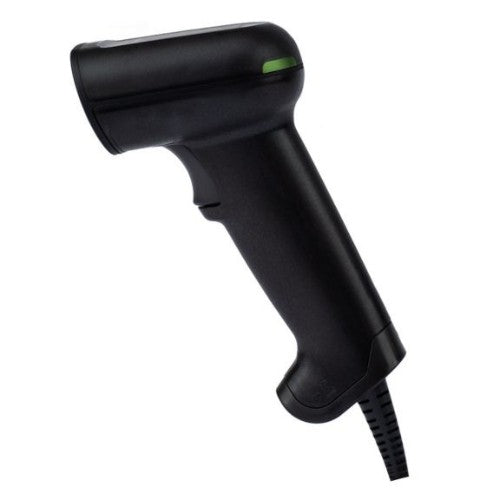

XENON ULTRA 1960G
Key Features
- Xenon Ultra 1960 corded scanners are the first of its kind built on the Ultra platform. Taking the trusted performance of the Extreme Performance (XP) platform one step further
- With optimized illumination and processor, the Xenon Ultra 1960 achieve snappier scanning and improved data captures – regardless of size, surface, marking method or contrast
- Utilize the cable from an existing Xenon XP 1950 on your new deployment of Xenon Ultra 1960
- The Xenon Ultra 1960 corded scanner offers superior scanning performance even on damaged or poor-quality barcodes and is engineered to perform with a high degree of accuracy minimizing the need to rescan trouble barcodes and help support top-line revenues
- A modernized design offers an improved aesthetic enhancing user experience and meets durability needs that businesses depend upon. The scanner housing has full product gasketing reducing the chance of water and dust ingress
- The Honeywell Scanner Management Utility (SMU) creates a holistic solution helping to automate scanner deployment and updates in any environment
Description
The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.
- The Xenon Ultra 1960 corded scanner is designed with green-dot LED aimers, helping users ensure accurate scans with each use.
- Warm-white illumination and print contrast down to 15% enables users to capture ultra high-density barcodes, even down to 2 mils.
- The green-dot LED aimer and white illumination aids in easier targeting and enhances scan accuracy on high-density and low-quality codes in high-throughput environments.
- With added IR capabilities, reduce annoying false activations, enabling illumination only when needed. IR even helps to reduce the gap between point-and-shoot and hands-free modes of operations.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported |
Code 39, Data Matrix, PDF417, QR Code |
| Linear (1D) barcodes supported |
Code 128, Code 39, PDF417, U.P.C. |
| Wavelength |
525 nm |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Standard interfaces |
Keyboard wedge, RS-232, USB |
| Performance |
|---|
| Protection features |
Drop proof |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Design |
|---|
| Type |
Handheld bar code reader |
| Protection features |
Drop proof |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
|---|
| Power source type |
RS-232, USB |
| Power consumption (typical) |
2.5 W |
| Input voltage |
4.4 - 5.5 V |
| Weight & dimensions |
|---|
| Width |
4.26" (108.2 mm) |
| Depth |
2.77" (70.4 mm) |
| Height |
6.31" (160.2 mm) |
| Weight |
5.19 oz (147.2 g) |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| Protection features |
Drop proof |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Light levels (direct sunlight) |
0 - 100000 lx |
