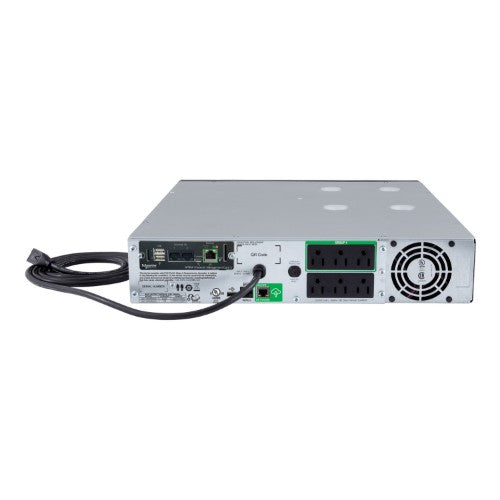

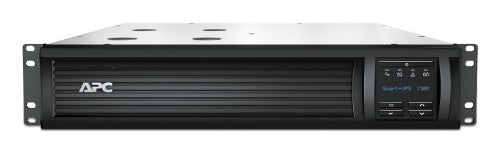

APC SMT1500RM2UCNC uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1000 W 6 AC outlet(s)

1.44 kVA, 1 kW, 110-120V, 50/60Hz, 680J, 225 BTU/h, 45 dB, LCD

Description

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Power
Output frequency	50/60 Hz
Output power	1000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	125 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	680 J
Output voltage Total Harmonic Distortion (THD)	5%
Output power capacity	1.44 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	94.5" (2.4 m)
USB port	Yes
Serial interface	Yes
SmartSlot	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	3
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Response time	10 ms
LED indicators	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Response time	10 ms
Output power	1000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	125 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	680 J
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	45 dB
Audible alarm(s)	Yes
Output power capacity	1.44 kVA
Input frequency	50/60 Hz
Heat dissipation	225 BTU/h
Battery
Battery life (max)	6 year(s)
Battery technology	Lead-Acid
Battery recharge time	3 h
Design
Rack capacity	2U
Form factor	Rackmount
LED indicators	Yes
Product colour	Black
Cable length	94.5" (2.4 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 600000" (0 - 15240 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Compliance certificates	cULus
Weight & dimensions
Package width	24" (610 mm)
Package depth	23.2" (590 mm)
Package height	9.25" (235 mm)
Weight	58.4 lbs (26.5 kg)
Width	17" (432 mm)
Package weight	71 lbs (32.2 kg)
Height	3.39" (86 mm)
Depth	18.8" (477 mm)
Packaging data
Quick installation guide	Yes
Cables included	USB cable
Package width	24" (610 mm)
Package depth	23.2" (590 mm)
Package height	9.25" (235 mm)
Package weight	71 lbs (32.2 kg)
Packaging content
Quick installation guide	Yes
Cables included	USB cable
