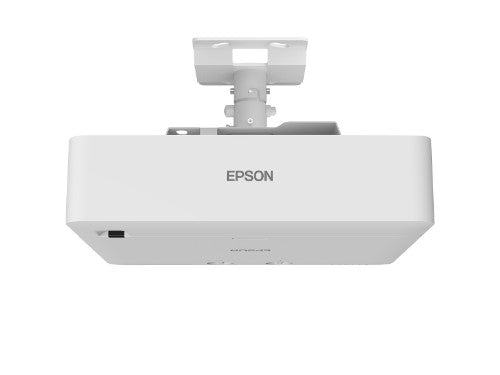

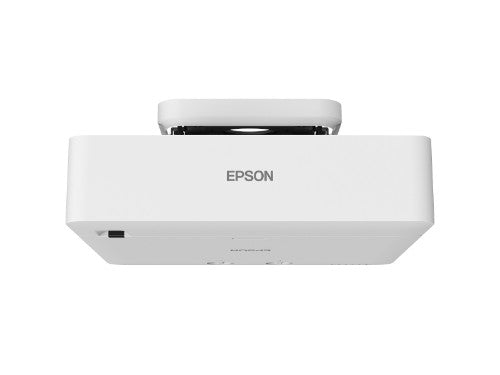

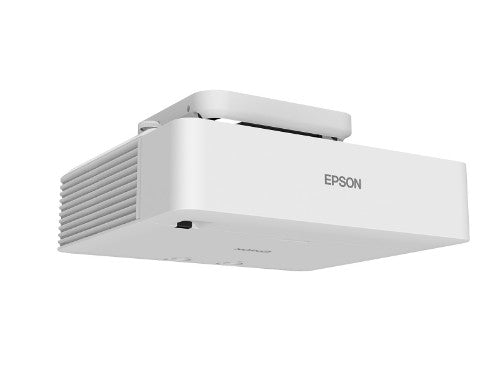

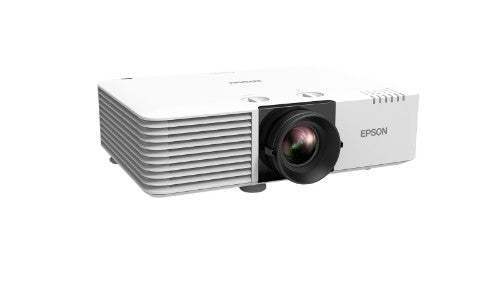

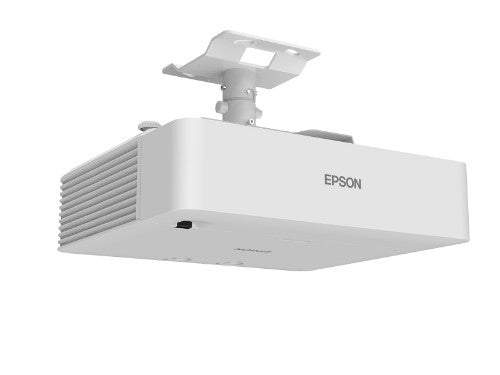

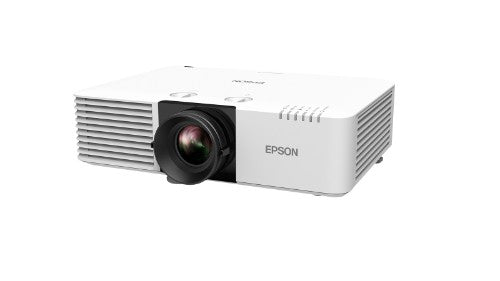

Epson L570U, 5200 ANSI lumens, 3LCD, WUXGA (1920x1200), 2500000:1, 16:10, 50 - 500"
Description
Epson L570U. Projector brightness: 5200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Serial interface type: RS-232C. Noise level: 31 dB, Noise level (economic mode): 23 dB, High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
Specifications
| Projector |
|---|
| Number of colours |
1.07 billion colors |
| Projector native resolution |
WUXGA (1920x1200) |
| Native aspect ratio |
16:10 |
| Projection distance (wide) |
55.1 - 582.7" (1.4 - 14.8 m) |
| Projection distance (tele) |
94.5 - 937" (2.4 - 23.8 m) |
| Screen size compatibility |
50 - 500" |
| Projection distance |
56.7 - 938.6" (1.44 - 23.8 m) |
| Contrast ratio (typical) |
2500000:1 |
| Matrix size |
0.67" |
| Keystone correction, vertical |
-30 - 30° |
| Keystone correction, horizontal |
-30 - 30° |
| Projection technology |
3LCD |
| Projector brightness |
5200 ANSI lumens |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Focus |
Manual |
| Focal length range |
20 - 31.8 mm |
| Aperture range (F-F) |
1.5 - 1.7 |
| Horizontal lens shift range |
-20 - 20% |
| Vertical lens shift range |
-50 - 50% |
| Throw ratio |
1.35 - 2.20:1 |
| Zoom type |
Manual |
| Video |
|---|
| Analog signal format system |
Not supported |
| Full HD |
Yes |
| 3D |
No |

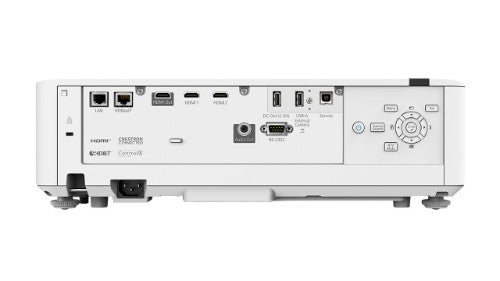

| Ports & interfaces |
|---|
| HDBaseT port |
Yes |
| USB 2.0 Type-B ports quantity |
1 |
| HDMI ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Serial interface type |
RS-232C |
| DVI port |
No |
| USB 2.0 Type-A ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
No |
| Wi-Fi |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Interactive |
No |
| Noise level |
31 dB |
| Noise level (economic mode) |
23 dB |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
10 W |
| Design |
|---|
| Market positioning |
Business |
| Product colour |
Black, White |
| Power |
|---|
| AC adapter output voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
260 W |
| Power source |
AC |
| Power consumption (typical) |
201 W |
| Power consumption (standby) |
2 W |
| Power consumption (economy mode) |
199 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
18.3 lbs (8.3 kg) |
| Width |
17.3" (440 mm) |
| Depth |
12" (304 mm) |
| Height |
4.8" (122 mm) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC |
| Batteries included |
Yes |
