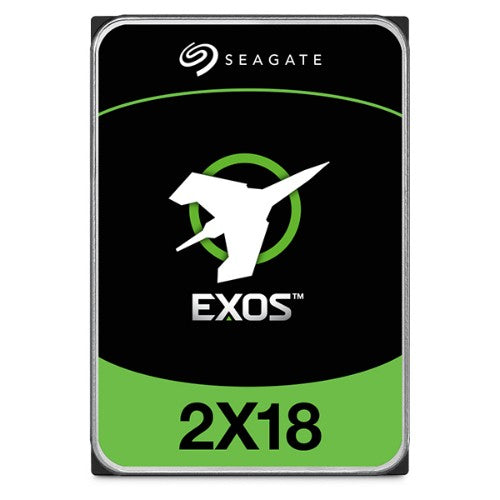

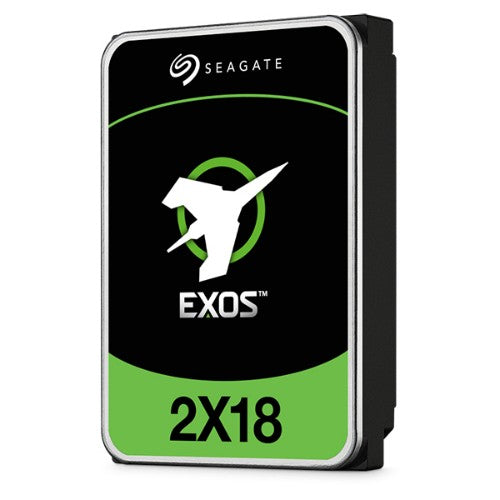

Exos 2X18 16 TB. SAS, 12Gb/s
Description
Driving Storage Innovation ForwardIntroducing Exos® 2X18 — our latest hyperscale hard drive built with MACH2™ multi-actuator technology for concurrent data transfer, increasing IOPS and doubling the performance of traditional hard drives. The benefits? SSD performance in an 18 TB and 16 TB, 12 Gb/s SAS or SATA solution that effectively uses full hard drive capacity without sacrificing latency, lower TCO, and the perfect fit for data centres running demanding applications.
MACH.2 for Boosted Capacity and PerformanceExperience the best of both worlds — Exos 2X18 features dual actuators delivering 2× more performance for random IOPS and sequential data rates.
Optimise Watts Per TBPowerBalance™ helps reduce TCO with a helium-sealed drive design for lower power and weight.
Meet Data Centre Demands Head-OnExos 2X18 delivers a 2 Gb/s SAS or SATA solution that effectively uses full hard drive capacity without sacrificing latency.
Proven Enterprise-Class ReliabilityEquip your data centre for the long haul with 2.5M hours MTBF and a five-year limited warranty.
Specifications
| Hard drive |
|---|
| Component for |
Disk array |
| HDD sustained transfer rate |
554 MiB/s |
| HDD interface transfer rate |
12 Gbit/s |
| HDD average transfer rate |
528 MB/s |
| Average latency |
4.16 ms |
| Mean time between failures (MTBF) |
2500000 h |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
16 TB |
| Features |
|---|
| Type |
HDD |
| Component for |
Disk array |
| HDD sustained transfer rate |
554 MiB/s |
| HDD interface transfer rate |
12 Gbit/s |
| HDD average transfer rate |
528 MB/s |
| Interface |
SAS |
| Average latency |
4.16 ms |
| Mean time between failures (MTBF) |
2500000 h |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
16 TB |
| Storage drive buffer size |
256 MB |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors |
Yes |
| 24/7 operation |
Yes |
| Power |
|---|
| Power consumption (write) |
12.8 W |
| Power consumption (read) |
13.5 W |
| Power consumption (idle) |
8 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 60 °C |
| Operating vibration |
2.27 G |
| Operating shock |
40 G |
| Non-operating shock |
200 G |
| Technical details |
|---|
| Quantity per pack |
1 pc(s) |
| Interface |
SAS |
| Mean time between failures (MTBF) |
2500000 h |
| Weight & dimensions |
|---|
| Width |
4.01" (101.8 mm) |
| Weight |
23.5 oz (665 g) |
| Height |
1.03" (26.1 mm) |
| Depth |
5.79" (147 mm) |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Interface |
SAS |
