21.5'', TFT LCD (LED), 16:9, 1920 x 1080, 50, 60Hz, PCAP, 10 Touch, Two x 2W internal speakers, Black, anti-glar
Description

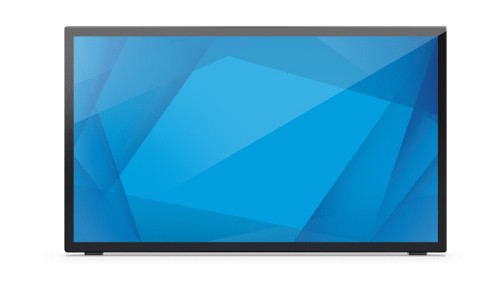

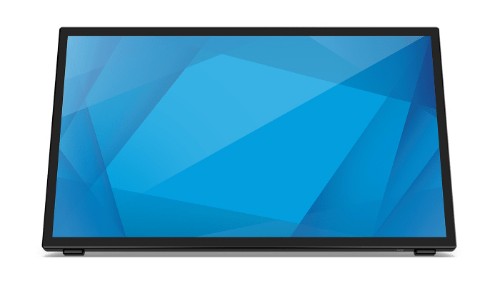

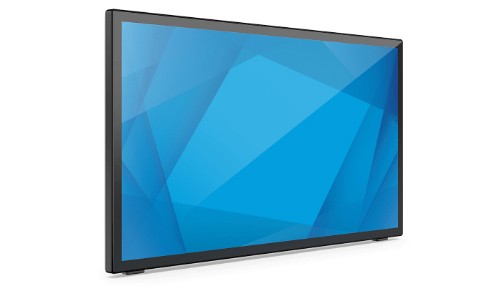

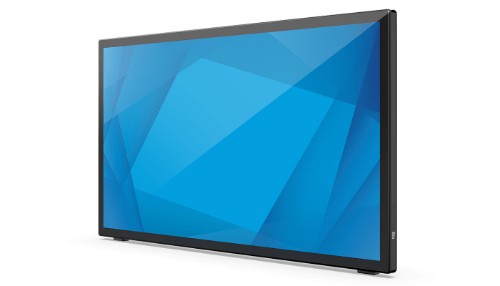

The bezel just got smaller.The 2270L 22” touchscreen offers up to a 70% reduction in the bezel compared to similar models.

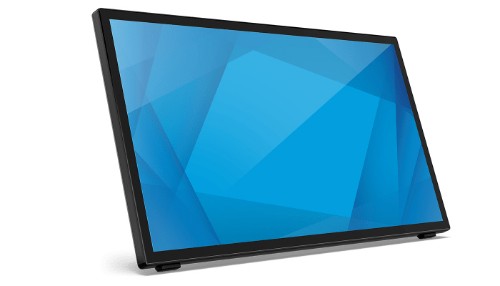

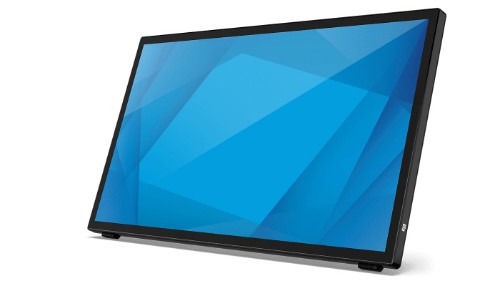

Minimalistic design to fit any space.From 20 degrees to 70 degrees, angle the display where you want it. Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA-compatibility.
VESA-compatibility. Built-in speakers and integrated IO.Durable, energy efficient touchscreen.
Scratch-resistant glass surface.
IK07 impact resistant.
ES8.0 certified for greater energy efficiency.
Increase viewing comfort with low blue light and flicker free features.Navigate the OSD directly on the touchscreen. We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Specifications
| Display |
|---|
| HDCP |
Yes |
| Screen shape |
Flat |
| Display number of colours |
1.67 billion colours |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
60 Hz |
| HD type |
4K Ultra HD |
| Display technology |
LCD |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Horizontal scan range |
30 - 82 kHz |
| Vertical scan range |
50 - 75 Hz |
| Aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Response time |
14 ms |
| Display diagonal |
21.5" |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Panel type |
TFT |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Capacitive |
| Display brightness |
405 cd/m² |
| Anti-glare screen |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
20 W |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
20 W |
| Mean time between failures (MTBF) |
50000 h |
| Built-in microphone |
No |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| OmniTapps Multitouch compatibility |
No |
| Number of simultaneous touchpoints (Windows 7) |
10 |
| Multimedia |
|---|
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| RMS rated power |
20 W |
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
|---|
| Certification |
UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC |
| Product colour |
Black |
| Mean time between failures (MTBF) |
50000 h |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB upstream port type |
USB Type-A, USB Type-B |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| Audio input |
Yes |
| Audio output |
Yes |
| Headphone outputs |
1 |
| HDMI |
Yes |
| Technical details |
|---|
| Height (without stand) |
11.9" (302.4 mm) |
| Depth (without stand) |
1.63" (41.3 mm) |
| Width (without stand) |
19.9" (504.7 mm) |
| Mean time between failures (MTBF) |
50000 h |
| HDMI |
Yes |
| Display viewable area (HxV) |
47.6 x 26.8" (1209.6 x 680.4 mm) |
| Built-in microphone |
No |
| Product colour |
Black |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
13.8 W |
| Power consumption (off) |
0.16 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
D |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| European Product Registry for Energy Labelling (EPREL) code |
1361162 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Height (without stand) |
11.9" (302.4 mm) |
| Depth (without stand) |
1.63" (41.3 mm) |
| Width (without stand) |
19.9" (504.7 mm) |
| Weight (without stand) |
9.04 lbs (4.1 kg) |
| Package width |
23.2" (589 mm) |
| Package depth |
15.6" (395 mm) |
| Package height |
5.35" (136 mm) |
| Package weight |
13.9 lbs (6.3 kg) |
| Packaging data |
|---|
| Package width |
23.2" (589 mm) |
| Package depth |
15.6" (395 mm) |
| Package height |
5.35" (136 mm) |
| Package weight |
13.9 lbs (6.3 kg) |
| Quick start guide |
Yes |
| Cables included |
AC, HDMI, USB |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, HDMI, USB |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1361162 |
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Display viewable area (HxV) |
47.6 x 26.8" (1209.6 x 680.4 mm) |
| Certification |
UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC |
| Compliance certificates |
RoHS |
| Height (without stand) |
11.9" (302.4 mm) |
| Depth (without stand) |
1.63" (41.3 mm) |
| Width (without stand) |
19.9" (504.7 mm) |
| Quick start guide |
Yes |
| HDMI |
Yes |
| Energy efficiency scale |
A to G |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Certificates |
|---|
| Certification |
UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
