Shuttle DH610 PC/workstation barebone 1.3L sized PC Black LGA 1700

1.3 L, H610, LGA1700, 2x DDR4 SODIMM, 2x M.2, 2.5", HDMI, 2x DP, 2x USB 3.2 Gen1, 2x USB 2.0, RJ45 GbE, RJ45 2.5 GbE, RS232, 120 W

Description

12th Gen Hybrid Power Makes Multitask Easy
Shuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

Intel® 12th Gen processor

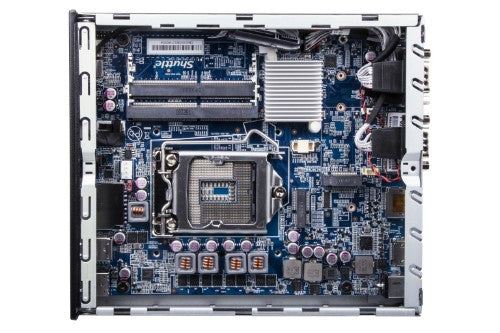

Based on the H610 chipset, DH610 is designed for 12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity. In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.

Triple-Display Productivity
With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.

Rich Connectivity and High-speed Intel® 2.5GbE LAN

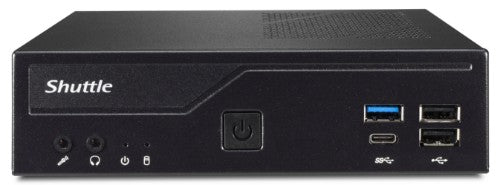

DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN and Teaming Mode functions to provide high-speed data transfer capability and a better business networking integration.

Exclusive Cooling Technology

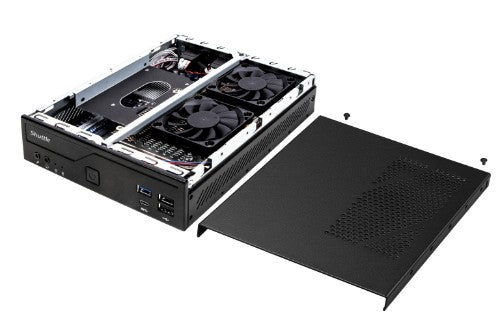

DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.

Specifications

Motherboard
Processor socket	LGA 1700
Number of processors supported	1
Processor
Built-in processor	No
Processor socket	LGA 1700
Number of processors supported	1
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Storage drive interface	M.2, Serial ATA, Serial ATA II, Serial ATA III
Storage drives installed	No
Graphics
Maximum resolution	3840 x 2160 pixels
Number of displays supported	3
On-board graphics card	Yes
Graphics card family	Intel
Audio
Built-in speaker(s)	No
Network
Ethernet LAN	Yes
Wi-Fi	No

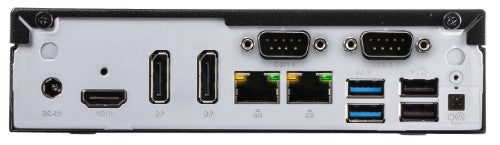

Ports & interfaces
Number of SATA III connectors	1
DC-in jack	Yes
COM ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	2
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	4
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Expansion slots
Number of M.2 (M) slots	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
LED indicators	HDD, Power
Cooling type	Active
Product colour	Black
Chassis type	1.3L sized PC
Performance
Maximum resolution	3840 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Linux operating systems supported	Yes
Number of displays supported	3
Processor socket	LGA 1700
Number of processors supported	1
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Quick start guide	Yes
Cooling type	Active
Chassis type	1.3L sized PC
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Indication
LED indicators	HDD, Power
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	3
Power
AC input voltage	100 - 240 V
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	6.5" (165 mm)
Depth	7.48" (190 mm)
Height	1.69" (43 mm)
Packaging content
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Quick start guide	Yes
Other features
Chassis type	1.3L sized PC
