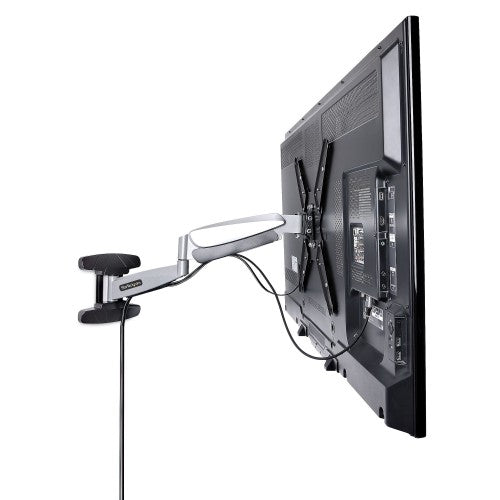

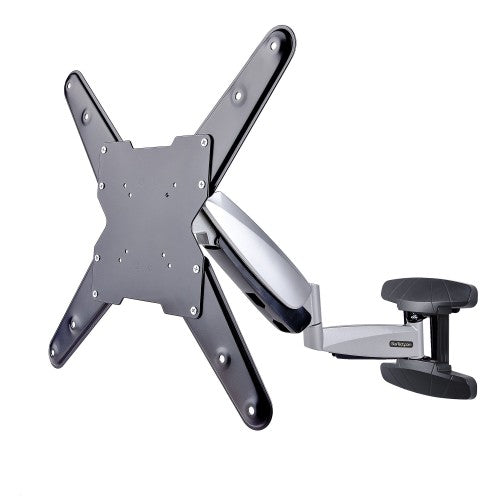

StarTech.com VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays, Slim Wall Mount TV Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel Monitor Wall Mount

StarTech.com VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays, Slim Wall Mount TV Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel Monitor Wall Mount, 2.95 x 2.95" (75 x 75 mm), 15.7 x 15.7" (400 x 400 mm), -15 - 8°, 3°, Aluminum, Steel, Black, Silver

Key Features

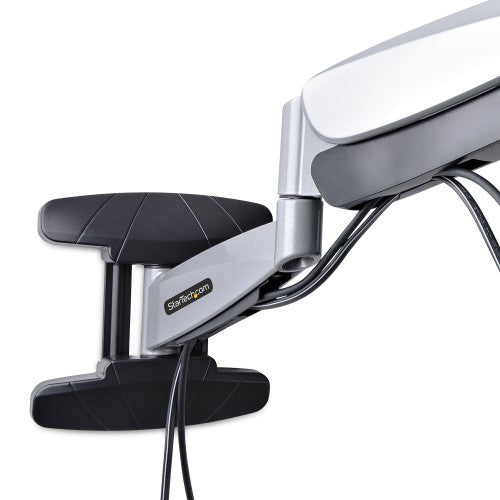

• HEIGHT ADJUSTABLE TV WALL MOUNT: Spring-assisted height adjustable range 12.6in (32cm); Articulating wall mount TV bracket supports TVs up to 55in; Max weight 66lb (30kg); Single-stud design made from powder-coated diecast aluminum for maximum durability

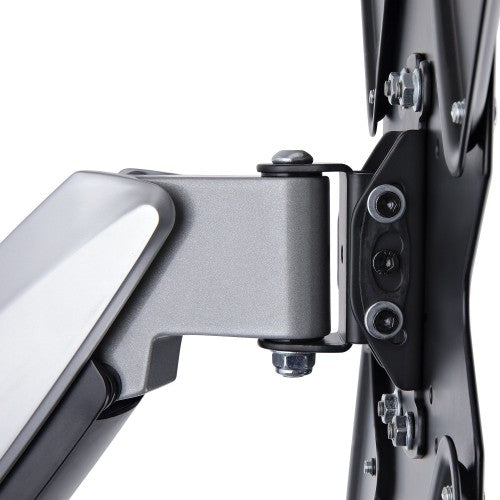

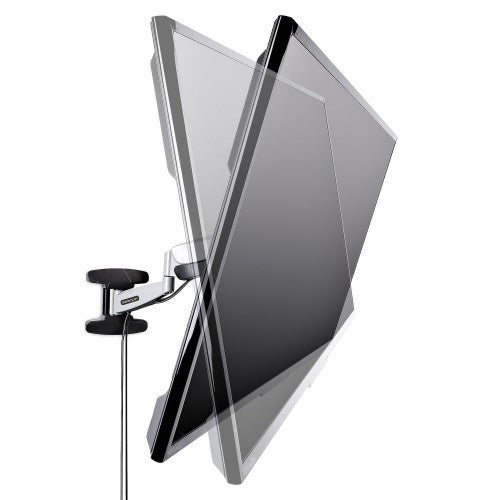

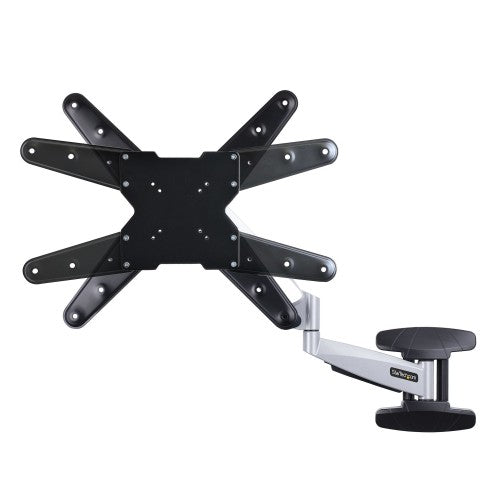

• ONE-TOUCH MOTION: Full-motion TV wall mount features a spring mechanism for effortless viewing angle and height adjustments; VESA plate features +/-90° swivel, +8/-15° tilt, and +/-3° rotation; Toolless adjustment w/ built-in cable management

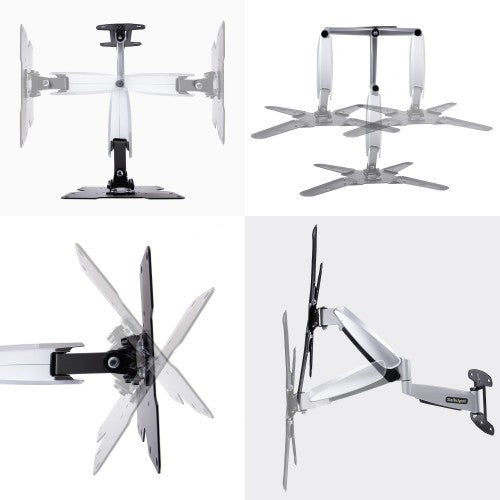

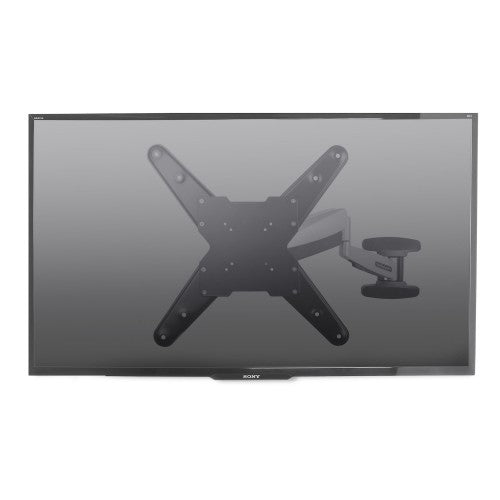

• RANGE OF MOTION: Low profile VESA TV wall mount with jointed arm assembly supports +/-90° swivel and folds to just 2.2in (5.8cm) from the wall; Max arm extension 23.4in (59.5cm); Lateral range of 3.9ft (1.19m) ideal for corner mounting maximizing space
• COMPATIBILITY: TV mounting bracket supports TVs up to 55" from LG, Samsung, Sony, Hisense, Sharp, and other TVs; Compatible VESA patterns: 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, and 400x400; Spacers and various M5/M6/M8 screws included
• QUICK AND CLEAN INSTALLATION: Swivel TV wall mount ships pre-assembled for quick deployment; Wall plate with mounting holes facilitate simplified installation; Includes installation template, bubble level, wood studs, and concrete wall mounting hardware

Description

StarTech.com VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays, Slim Wall Mount TV Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel Monitor Wall Mount. Maximum weight capacity: 66.1 lbs (30 kg), Minimum screen size: 23", Maximum screen size: 55", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 15.7 x 15.7" (400 x 400 mm). Tilt angle range: -15 - 8°, Angle of rotation: 3°, Distance to the wall (min): 2.28" (5.8 cm), Distance to the wall (max): 23.4" (59.5 cm). Product color: Black, Silver

Specifications

Mounting
Mounting type	Wall
Minimum screen size	23"
Panel mounting interface	75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400
Number of displays supported	1
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	15.7 x 15.7" (400 x 400 mm)
Maximum screen size	55"
Maximum weight capacity	66.1 lbs (30 kg)
Ergonomics
Height adjustment	Yes
Cable management	Yes
Tilt angle range	-15 - 8°
Swivel angle	180°
Angle of rotation	3°
Distance to the wall (min)	2.28" (5.8 cm)
Distance to the wall (max)	23.4" (59.5 cm)
Rotating	Yes
Technical details
Cable management	Yes
Angle of rotation	3°
Number of displays supported	1
Distance to the wall (min)	2.28" (5.8 cm)
Distance to the wall (max)	23.4" (59.5 cm)
Product colour	Black, Silver
Mounting type	Wall
Country of origin	China
VESA mount included	Yes
Design
Cable management	Yes
Product colour	Black, Silver
Anti-theft function	No
Housing material	Aluminum, Steel
Packaging content
Screws included	Yes
Number of washers included	13
Number of spacers included	16
Number of screws	33
Wrench included	Yes
Wrench type	Hexagonal wrench
Manual	Yes
Mounting plate included	Yes
Weight & dimensions
Width	17.7" (450 mm)
Depth	23.4" (595 mm)
Height	17.7" (450 mm)
Weight	13.2 lbs (6 kg)
Packaging data
Package width	23" (585 mm)
Package depth	17.3" (440 mm)
Package height	3.74" (95 mm)
Package weight	13.4 lbs (6.1 kg)
Manual	Yes
Logistics data
Master (outer) case width	23.8" (605 mm)
Master (outer) case length	18.1" (460 mm)
Master (outer) case height	12" (305 mm)
Products per master (outer) case	1 pc(s)
Other features
Mounting type	Wall
Country of origin	China
