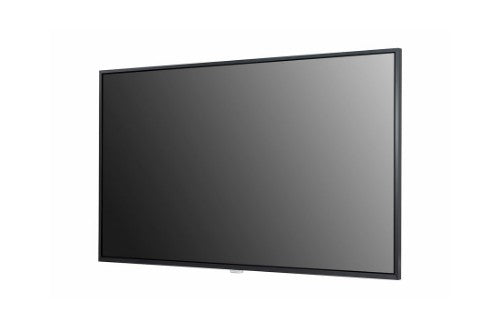

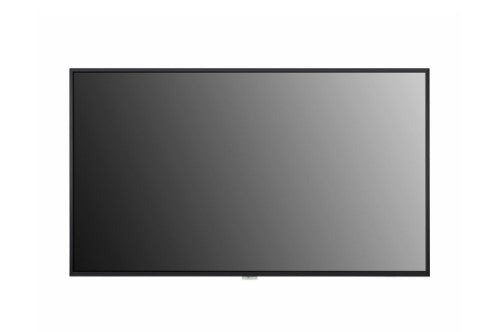

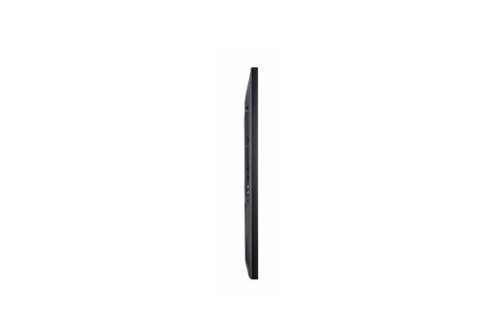

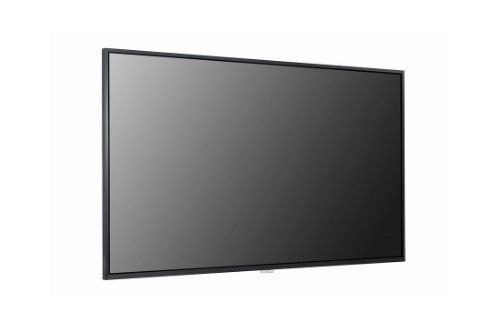

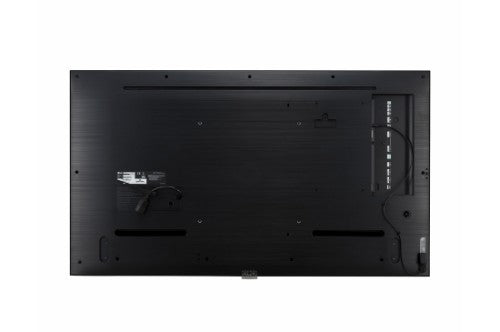

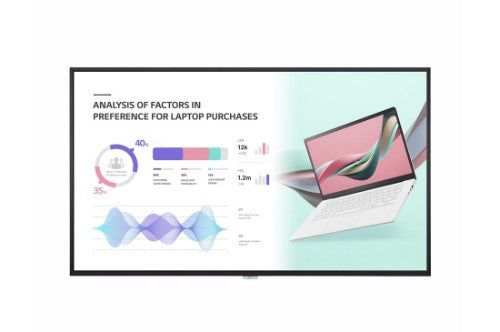

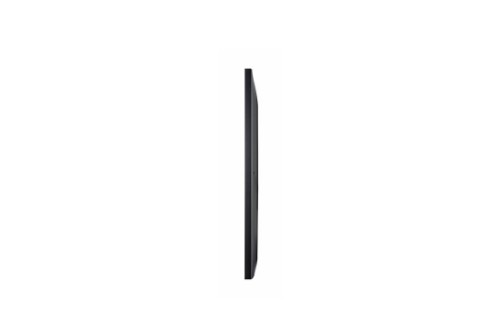

New High Haze UHD Standard Signage 65"
Description
Proper Display Brightness
With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
Specifications
| Display |
|---|
| LED backlighting type |
Edge-LED |
| Touchscreen |
No |
| Display technology |
LED |
| Display diagonal |
65" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1100:1 |
| Contrast ratio (dynamic) |
1000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Panel life |
50000 h |
| Native aspect ratio |
16:9 |
| Native refresh rate |
60 Hz |
| Haze rate |
28% |
| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| USB port |
Yes |
| RS-232C |
Yes |
| Infrared data port |
Yes |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
Yes |
| DVI-D ports quantity |
1 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
2.0 |
| USB ports quantity |
1 |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor/outdoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.39" (9.9 mm) |
| Bezel width (side) |
0.39" (9.9 mm) |
| Bezel width (bottom) |
0.567" (1.44 cm) |
| Product colour |
Black |
| Panel mounting interface |
300 x 300 mm |
| VESA mounting |
Yes |
| Tilt adjustment |
Yes |
| Performance |
|---|
| Purpose |
Commercial |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP5X |
| Ambient light sensor |
Yes |
| On Screen Display (OSD) languages |
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish |
| On Screen Display (OSD) |
Yes |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| Wi-Fi |
Yes |
| Panel life |
50000 h |
| Power |
|---|
| Heat dissipation |
444 BTU/h |
| Power consumption (off) |
0.5 W |
| Power consumption (typical) |
130 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
120 kWh |
| Computer system |
|---|
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Weight & dimensions |
|---|
| Width (with stand) |
57.2" (1453.3 mm) |
| Height (with stand) |
35.2" (893.1 mm) |
| Depth (with stand) |
11.4" (290 mm) |
| Display width |
57.2" (1453.3 mm) |
| Display depth |
1.57" (39.9 mm) |
| Display height |
33.2" (844 mm) |
| Display weight |
62.2 lbs (28.2 kg) |
| Packaging data |
|---|
| Package width |
63" (1600 mm) |
| Package depth |
6.89" (175 mm) |
| Package height |
43.1" (1095 mm) |
| Package weight |
77.2 lbs (35 kg) |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC |
| Tilt adjustment |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| LED backlighting type |
Edge-LED |
| Ambient light sensor |
Yes |
| Thin Client |
|---|
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Features |
|---|
| Heat dissipation (max) |
649 BTU/h |
| Other features |
|---|
| Wi-Fi |
Yes |
| Width (with stand) |
57.2" (1453.3 mm) |
| Height (with stand) |
35.2" (893.1 mm) |
| Display technology |
LED |
| Depth (with stand) |
11.4" (290 mm) |
| Bezel width (top) |
0.39" (9.9 mm) |
| Bezel width (side) |
0.39" (9.9 mm) |
| Bezel width (bottom) |
0.567" (1.44 cm) |
| Energy efficiency scale |
A to G |
| Tilt adjustment |
Yes |
