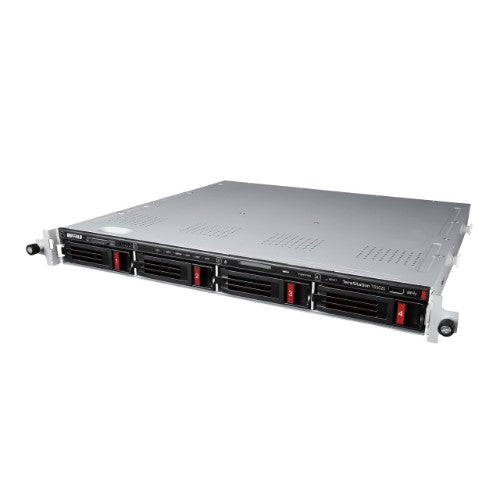

32TB TeraStation 5020
Description
High-Performance, High-Security Storage Solution - Hard Drives Included
The TeraStation 5020 is Buffalo's business-class network attached storage (NAS) product purpose-built as a secure, high-performance storage solution optimized for high workloads. Available in high-capacity, fully- and partially populated rackmount form factors, the TS5020 is an evolution of Buffalo's acclaimed TeraStation 5010 and 6000 Series devices, offering advanced productivity and security features such as snapshot technology for near-instantaneous data backup and recovery, VMware and Hyper-V certifications for virtualization solutions, the cutting-edge Btrfs fiile system for smoother high-load data operations, and robust data backup and security options. The TS5020 is optimized for advanced data storage and file server operations so you can store your data with peace of mind.
Specifications
| Storage |
|---|
| Total installed storage capacity |
16 TB |
| Storage drives installed |
Yes |
| Installed storage drive type |
HDD |
| Number of storage drives installed |
4 |
| Supported storage drive types |
HDD |
| Number of storage drives supported |
4 |
| Storage drive capacity |
8 GB |
| Hot-swap drive bays |
Yes |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 6, 10, JBOD |
| Processor |
|---|
| Processor manufacturer |
Annapurna Labs |
| Processor frequency |
2.04 GHz |
| Processor family |
Annapurna Labs |
| Processor cores |
4 |
| Memory |
|---|
| Internal memory type |
DDR4 |
| Internal memory |
8 GB |
| Network |
|---|
| Ethernet LAN data rate supported (max) |
10000 Mbit/s |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000,10000 Mbit/s |
| Supported network protocols |
TCP/IP |
| iSCSI support |
Yes |
| Data link protocols |
CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
3 |
| Hard drive |
|---|
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 6, 10, JBOD |
| Design |
|---|
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
Rack (1U) |
| Technical details |
|---|
| Type |
NAS |
| Backup function |
Yes |
| Backup features |
iSCSI LUN |
| Product colour |
Black |
| Chassis type |
Rack (1U) |
| Performance |
|---|
| Type |
NAS |
| Backup function |
Yes |
| Backup features |
iSCSI LUN |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Snapshot |
Yes |
| Cooling |
|---|
| Cooling type |
Active |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Power |
|---|
| Power consumption (max) |
100 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Package width |
12.2" (309.9 mm) |
| Package depth |
14.1" (358.1 mm) |
| Package height |
14.3" (363.2 mm) |
| Width |
16.9" (430 mm) |
| Depth |
16.9" (430 mm) |
| Height |
1.74" (44.2 mm) |
| Weight |
18.7 lbs (8.48 kg) |
| Package weight |
27.1 lbs (12.3 kg) |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Packaging data |
|---|
| Package width |
12.2" (309.9 mm) |
| Package depth |
14.1" (358.1 mm) |
| Package height |
14.3" (363.2 mm) |
| Package weight |
27.1 lbs (12.3 kg) |
