StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable for Calibrating Projectors, Digital Signage, TVs via Audio Jack (9M351M-RS232-CABLE)
Key Features
- DB9 TO 3.5 MM SERIAL CABLE: 3ft (1m) RS232 serial control cable enables configuration or calibration of a 3.5mm RS-232 serial devices - Use with TVs, projectors, digital signage displays requiring 3-conductor RS-232 serial control through 3.5mm audio jack
- QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors prevent EMI interference - Molded PVC connectors with strain reliefs and PVC jacket prevent damage due to bends or rough usage
- COMPATIBILITY: The DB9 to 3.5mm cable works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C) for computers that do not have a built-in serial port / Note: DB9 gender changer may be required such as our GC9SF (not included)
- SPECIFICATIONS: Length: 3.3ft (1m) - DB9 Male to 3.5 mm Male Serial Cable - Color: Black - 28 AWG - OD: 3.5mm - Jacket: PVC - DB9 Pin 3 to 3.5mm Tip - DB9 Pin 2 to 3.5mm Ring - DB9 Pin 5 to 3.5mm Sleeve
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this product is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control

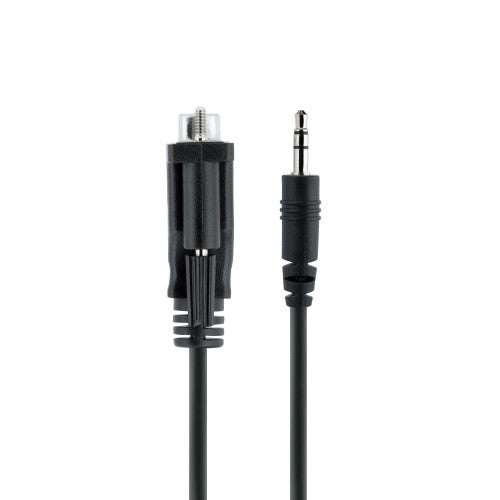

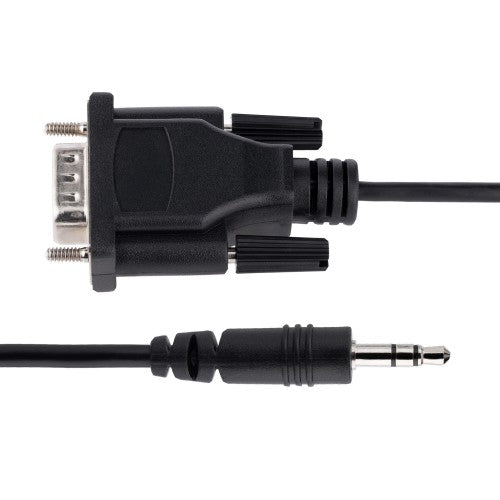

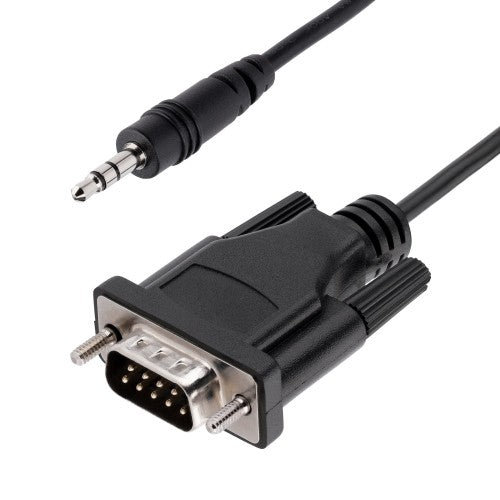

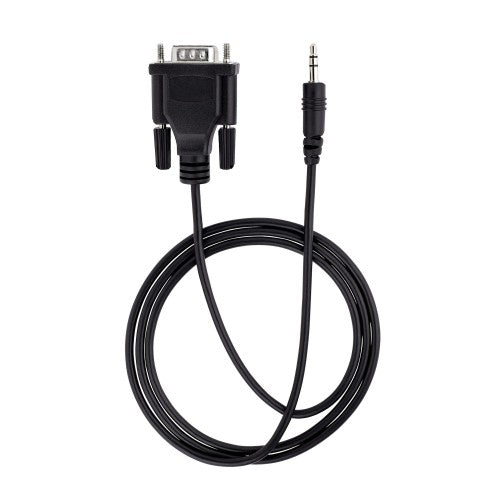

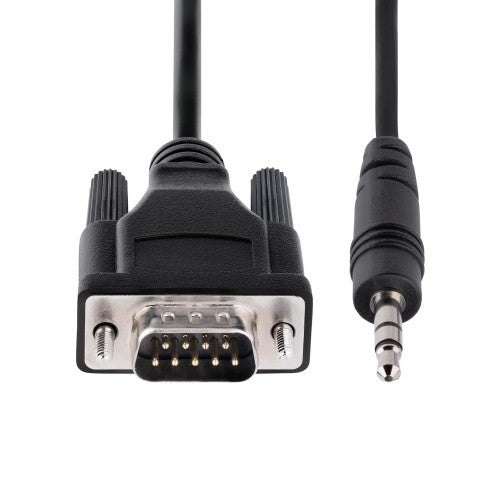

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
3.5mm |
| Connector 1 |
DB-9 |
| Cable length |
39.4" (1 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Technical details |
|---|
| Product colour |
Black |
| Cable length |
39.4" (1 m) |
| Cable diameter |
0.138" (3.5 mm) |
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Product colour |
Black |
| Cable length |
39.4" (1 m) |
| Performance |
|---|
| AWG wire size |
28 |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Product colour |
Black |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Relative humidity |
30 - 75% |
| Operating temperature (T-T) |
-20 - 60 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Packaging data |
|---|
| Package width |
5.04" (128 mm) |
| Package height |
0.394" (10 mm) |
| Package depth |
8.66" (220 mm) |
| Package weight |
0.811 oz (23 g) |
| Logistics data |
|---|
| Products per master (outer) case |
200 pc(s) |
| Master (outer) case width |
15.3" (388 mm) |
| Master (outer) case length |
13.4" (340 mm) |
| Master (outer) case height |
12.2" (310 mm) |
