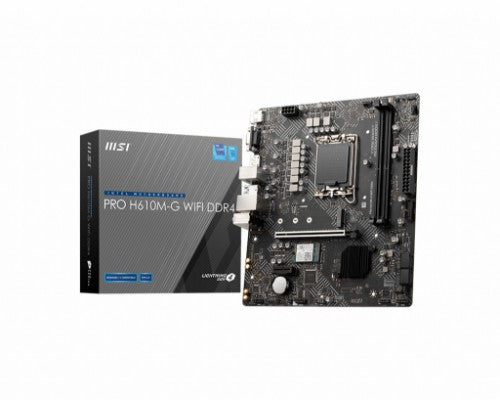

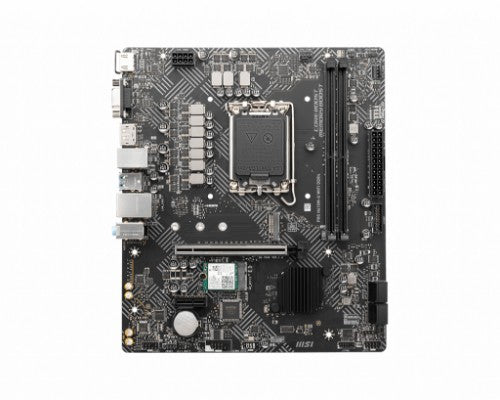

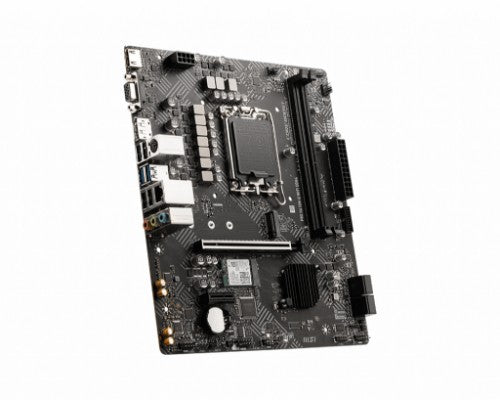

MSI PRO H610M-G WIFI DDR4 motherboard Intel H610 LGA 1700 micro ATX

Micro-ATX, LGA1700, Intel H610, DDR4, SSD, Windows 10/11, Wi-Fi, Bluetooth 4.2

Key Features

• Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
• Wireless and Bluetooth: Intel® Dual Band Wireless-AC 3168, Bluetooth 4.2

Description

PRO H610M-G WIFI DDR4
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.

WI-FI AC & BLUETOOTH
This Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Specifications

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
Parallel processing technology support	Not supported
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10, Windows 11
Supported processor sockets	LGA 1700
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Processor socket	LGA 1700
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2666,2933,3200 MHz
Maximum internal memory	64 GB
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive types	SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
DirectX version	12.0
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes

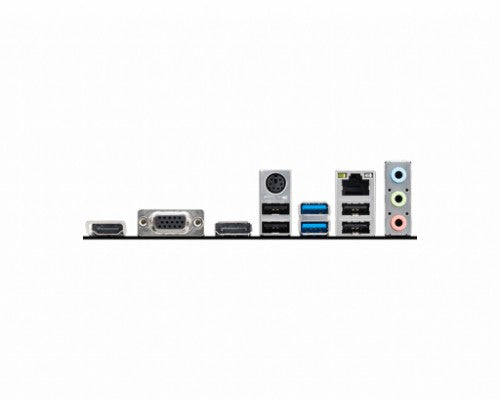

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Windows operating systems supported	Windows 10, Windows 11
Supported processor sockets	LGA 1700
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Video
DirectX version	12.0
Software
Windows operating systems supported	Windows 10, Windows 11
Drivers included	Yes
Weight & dimensions
Height	2.56" (65 mm)
Weight	26.9 oz (764 g)
Width	9.61" (244 mm)
Depth	8.31" (211 mm)
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	2.56" (65 mm)
Weight	26.9 oz (764 g)
