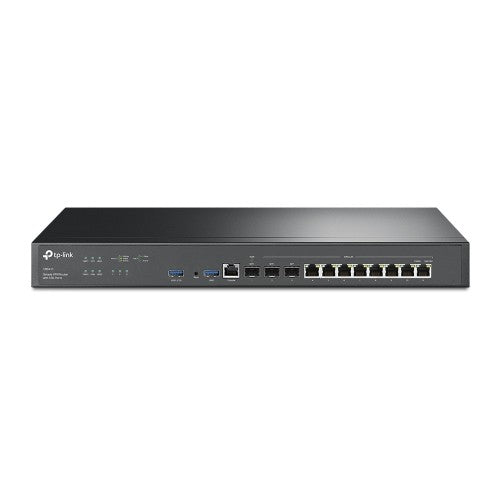

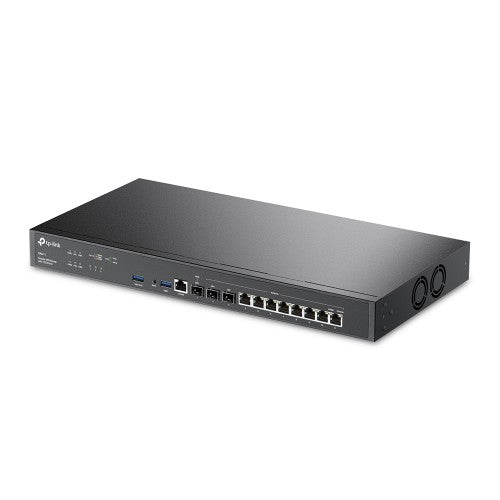

TP-Link Omada ER8411 wired router Gigabit Ethernet Black

2× 10GE SFP+, 8× 1GE RJ45, 1× 1GE SFP WAN/LAN, 1× RJ45 Console, 2× USB Ports, 4MB SPI NOR + 256 MB NAND, 4 GB DDR4, 440 × 220 × 44 mm

Key Features

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity
• Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband
• Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH
• Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security

Description

Future-Proof Your Business with 10G Enterprise Connectivity
Omada VPN Router with 10G Ports

Centralized Cloud Management
Seamless integration into the Omada SDN platform

Quad-Core 2.2 GHz CPU
Enterprise–level hardware design provides maximum performance

Two 10GE SFP+ Ports
High-bandwidth aggregation with 1× WAN and 1× WAN/LAN ports

Up to 10 WAN Ports
Multi-WAN Load Balance raises the utilization rate of multi-line broadband

Two USB 3.0 Ports
Available 4G/3G Modem connection for LTE WAN backup

High-Capacity Performance
Supports up to 2,300,000 concurrent sessions

High-Security VPN
Enterprise-standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN

Enhanced Security
Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering

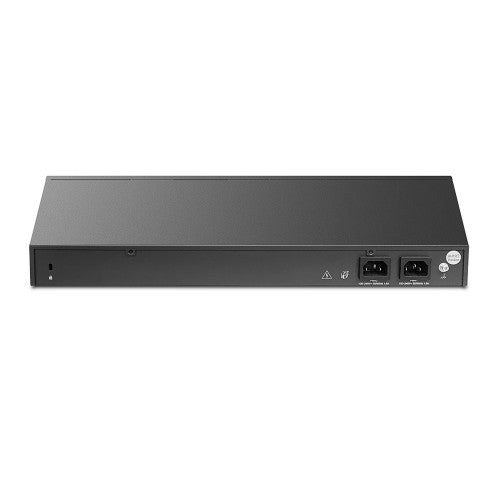

Dual Redundant Power Supplies
Carrier-class reliability for enterprise networking

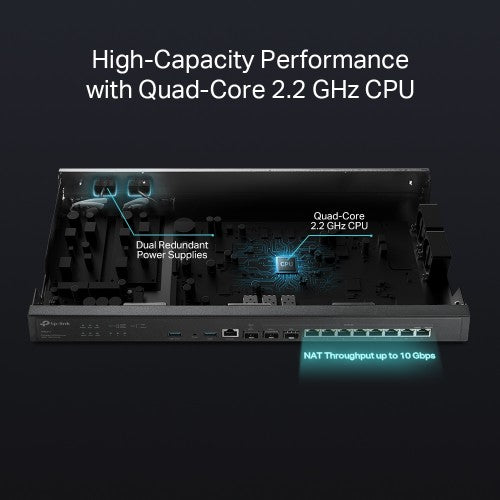

High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.

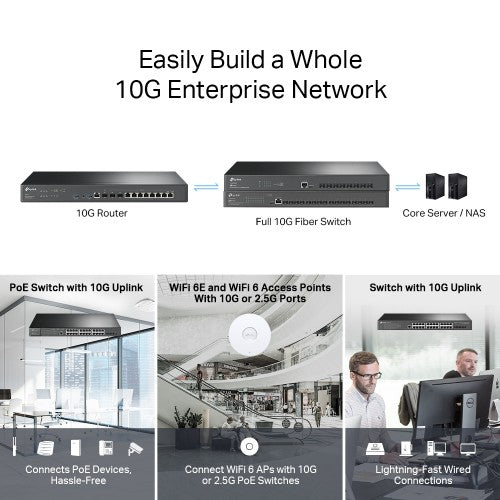

Maximize the 10G Broadband with Omada Enterprise Gateway
Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.

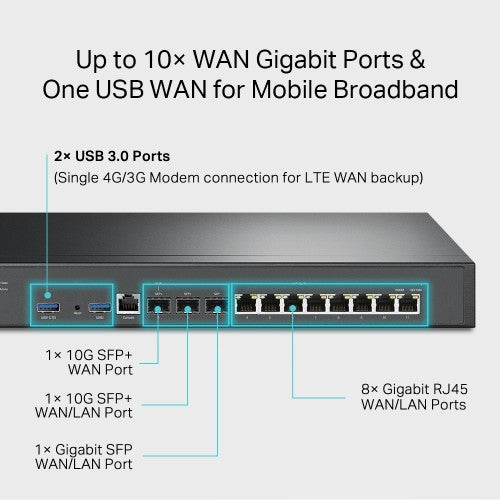

10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.

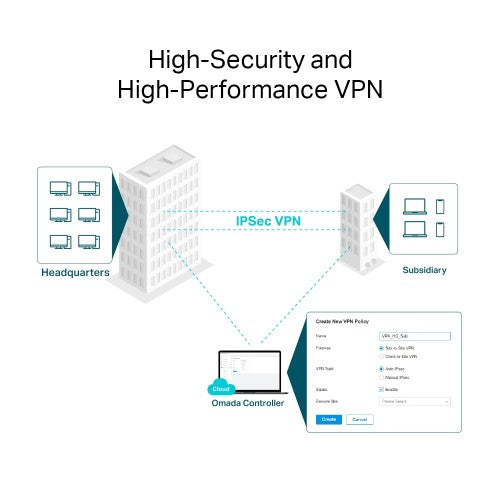

High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.

Robust Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

IP/MAC/URL/Keyword Filtering
Forcefully prevent viruses and attacks from intruders.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec, and PPTP.

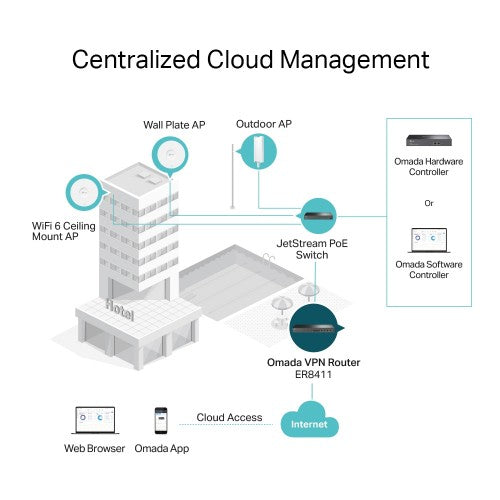

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Specifications

Ethernet LAN features
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Memory
Flash memory	256 MB
Internal memory	4096 MB
Performance
Internal memory type	DDR4
Flash memory	256 MB
Internal memory	4096 MB
Built-in processor	Yes
WAN connection
SFP WAN	Yes
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
Network
Port forwarding	Yes
Networking standards	IEEE 802.1Q
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Static route	Yes
VLAN support	Yes
Ethernet interface type	Gigabit Ethernet
Management features
Universal Plug and Play (UPnP)	Yes
Reset button	Yes
Ports & interfaces
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
DC-in jack	Yes
Combo SFP ports quantity	2
Protocols
DHCP server	Yes
DHCP client	Yes
Technical details
Built-in processor	Yes
LED indicators	Yes
Product colour	Black
Security
URL filtering	Yes
NAT functionality	One-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP;
Access Control List (ACL)	Yes
Packaging content
AC adapter included	Yes
Manual	Yes
Features
Internal memory type	DDR4
Flash memory	256 MB
Internal memory	4096 MB
Built-in processor	Yes
Certification	CE, FCC, RoHS
Design
LED indicators	Yes
Product colour	Black
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	17.3" (440 mm)
Depth	8.66" (220 mm)
Height	1.73" (44 mm)
Package width	13.2" (336 mm)
Package depth	20.8" (528 mm)
Package height	3.94" (100 mm)
Package weight	8.11 lbs (3.68 kg)
Packaging data
AC adapter included	Yes
Package width	13.2" (336 mm)
Package depth	20.8" (528 mm)
Package height	3.94" (100 mm)
Package weight	8.11 lbs (3.68 kg)
Manual	Yes
Certificates
Certification	CE, FCC, RoHS
