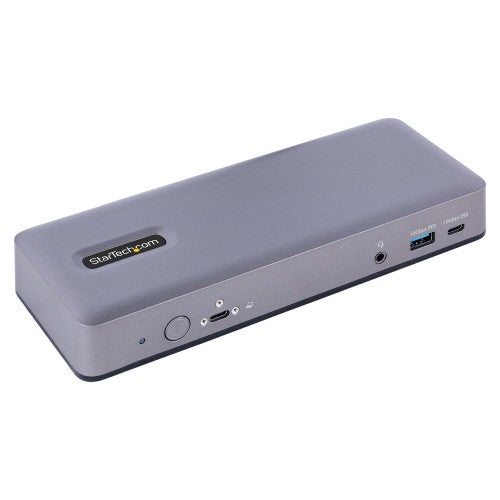

StarTech.com USB-C Docking Station Multi Monitor HDMI/DP/USB-C Video Output, Triple Monitor 4K30/Dual 4K60, 7-Port USB Hub, 60W Power Delivery, GbE, 3.5mm Audio, Works With Chromebook (DK31C3MNCR)
Key Features
- WORKS WITH CHROMEBOOK CERTIFIED: WWCB certified, for guaranteed compatibility with USB-C, Thunderbolt™ 4 Chromebooks; Features auto-updates to firmware through ChromeOS for max performance, compatibility, and security
- FLEXIBLE MULTI-MONITOR OUTPUTS: MST based video supports extended dual-4K 60Hz monitors with HDMI 2.0b, DisplayPort 1.4, and USB-C video outputs, triple 4K 30Hz, or single 5K 60Hz (DP 1.4 HBR3); Ideal for use with USB-C monitors (portable or desktop)
- FULL-FEATURED: 7-Port USB Hub (2x USB-A 10Gbps, 1x USB-A 10Gbps w/BC 1.2 charging, 1x USB-C 10Gbps, 2x USB-A 480Mbps, 1x USB-C shared 10Gbps & DP Alt Mode video), 60W Power Delivery, Gigabit Ethernet, 3.5mm headset/audio port
- SECURE & EASY SETUP: Ideal for all Chromebooks incl. ChromeOS Enterprise Devices; 3.3ft locking USB-C cable; Front facing host port (screw-locking) & Power/Mode button; Automatic driver install; K-Slot/Nano-Slot for anti-theft security anchor; Mount Holes
- OPTIMIZED FOR VIDEO PERFORMANCE: Port Replicator enables switching between two and four lane modes; Default four lane mode features 4K video with USB 2.0 480Mbps, while two lane mode features USB 3.2 Gen2 10Gbps throughput with 1080p video
Description
USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbE
Connect a USB Type-C/Thunderbolt™ 4 enabled Chromebook and a combination of DisplayPort and HDMI monitors to this USB-C Docking Station. This dock supports Chromebooks and Ultra HD 4K monitors. The 3.3ft (1m) USB-C Screw Lock to USB-C Cable ensures a secure connection to the dock and host device.
Works With Chromebook (WWCB) certified
This USB-C Docking Station is tested and certified to meet Google's compatibility standards. The certification ensures seamless operation with Chromebook devices. This is the ideal dock to deploy in business and education environments. Automatic firmware updates are available through ChromeOS for maximum security, compatibility, and performance.
Enhance Productivity with Triple-4K Video
Connect a combination of one USB-C DP Alt Mode, one HDMI, and/or up to two DisplayPort monitors to the Video 1 and Video 2 Ports and connect one HDMI monitor to the Video 3 Port for a triple-monitor setup at 4K 30Hz, and features up to 4K 60Hz. High-resolution video performance is vital for applications involving detailed graphics, enhancing workplace productivity by expanding the display capabilities of Chromebook devices.
Works With Chromebook Docking Station Features
Connect the docking station to a Chromebook's USB Type-C/Thunderbolt™ 4 port to enable a variety of connectivity options and features.
• 3x USB-A ports with support for USB 10Gbps - one 1.5A charging port
• 2x USB-A ports with support for High-Speed 2.0 (480 Mbps) ports for USB-peripheral devices
• 2x USB-C ports with support for USB 10Gbps and Type-C data and 1.5A charging port, Video 1 Port (DP Alt Mode)
• 1x Gigabit Ethernet port
• 1x 3.5mm Audio Jack 4-pole TRRS for a 3.5mm headset
• 2x Kensington Security Lock Slots
60W USB Power Delivery 3.0
The USB-C Docking Station supports 60W USB Power Delivery, using the universal power adapter.
This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
This product works with devices capable of running the latest version of ChromeOS and has been certified to meet Google's compatibility standards. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook and the Works With Chromebook badge are trademarks of Google LLC. USB Type-C® and USB-C® are trademarks of USB Implementers Forum. Thunderbolt™ is trademark of Intel.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Headphone connectivity |
3.5 mm |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| HDMI version |
2.0b |
| DisplayPorts quantity |
2 |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
60 W |
| DisplayPort version |
1.4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
5120 x 2880 pixels |
| Number of displays supported |
3 |
| Product colour |
Gray |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| LED indicators |
Activity, Power |
| Data transfer rate |
10 Gbit/s |
| Cable lock slot type |
Kensington |
| HD type |
5K Ultra HD |
| Maximum refresh rate |
60 Hz |
| Technical details |
|---|
| Product colour |
Gray |
| Cable lock slot |
Yes |
| Data transfer rate |
10 Gbit/s |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
12.2" (310 mm) |
| Master (outer) case length |
18.9" (480 mm) |
| Master (outer) case height |
12.4" (314 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| Input current |
2.37 A |
| Compatible power plug types |
JP, US |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
135 W |
| Output voltage |
20 V |
| Output current |
6.75 A |
| Software |
|---|
| Other operating systems supported |
ChromeOS |
| Indication |
|---|
| LED indicators |
Activity, Power |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Width |
3.15" (80 mm) |
| Depth |
8.27" (210 mm) |
| Height |
1.26" (32 mm) |
| Package weight |
8.92 oz (253 g) |
| Design |
|---|
| Product colour |
Gray |
| Cable lock slot |
Yes |
| LED indicators |
Activity, Power |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Package weight |
8.92 oz (253 g) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| AC adapter included |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
12.2" (310 mm) |
| Master (outer) case length |
18.9" (480 mm) |
| Master (outer) case height |
12.4" (314 mm) |
| Other features |
|---|
| Chipset |
Synaptics - VMM5320, Realtek -RTS5420 Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822, Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B |
