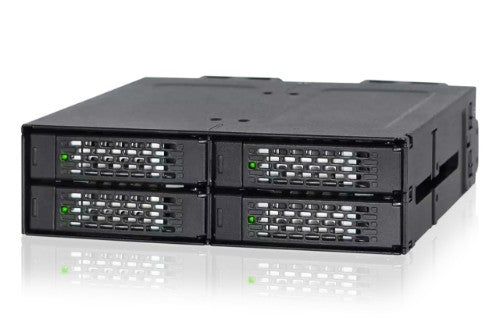

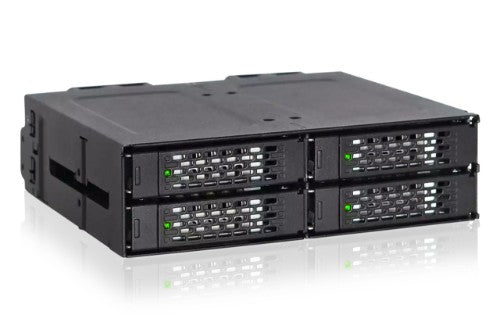

Icy Dock ToughArmor MB699VP-B V3 SSD enclosure Black 2.5"

4 x 2.5" NVMe U.2/U.3 SSD PCIe 4.0 Mobile Rack for 5.25" Bay with OCuLink

Key Features

• Supports 4x PCIe NVMe U.2/U.3 SSD, up to 15mm drive height

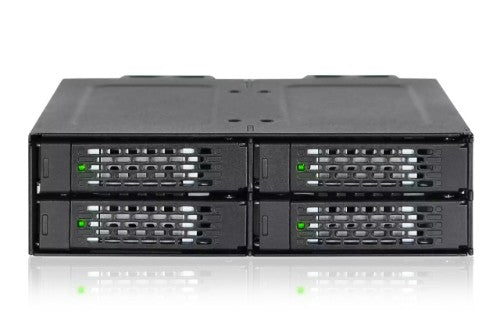

• Installs into any standard external 5.25" optical drive bay
• Uses 4x OCuLink (SFF-8612) to connect, pin-out defined by SFF-9402 Rev 1.1
• Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
• Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
• Ruggedized full-metal enclosure meeting flammability requirements
• Removable tray system for easy maintenance
• Dual high-performance 40x20mm cooling fan with three fan speed setting (High, Low, Off)

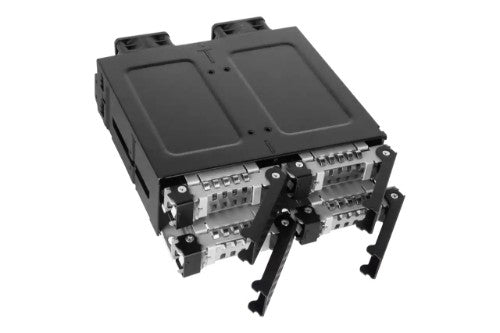

• The Eagle-hook tray latch securely holds the drive tray inside the enclosure
• EMI Grounding – protects SSDs from electrical damage

Description

The ToughArmor MB699VP-B V3 is a Ruggedized Quad Bay Removable U.2/U.3 NVMe SSD Enclosure supporting PCIe 4.0 and fetching up to 64Gb/s data transfer rates through OCuLink (SFF-8612) interface. It is made out of heavy-duty full-metal construction and equipped with removable U.2/U.3 drive trays that simplify the time-consuming drive installation/removal process for easy drive maintenance. In addition, the MB699VP-B V3 uses dual 40x20mm cooling fans to keep the high-speed U.2/U.3 SSD at optimal temperatures and let you adjust the fan speed through the 3-speed fan control located in the rear of the enclosure.

Now Compatible with Tri-Mode Controllers
Due to popular demand and recent circuit board changes from host card manufacturers, the ToughArmor MB699VP-B V3 is now compatible with *Tri-Mode controller cards from Broadcom, Areca, and more. To view more details on compatible cards and cables, please go to the FAQ section of this product page.
*Note - The MB699VP-B V3 only supports NVMe SSD when connecting to a Tri-Mode controller. It does not support SAS/SATA SSD/HDD.

Superior PCIe 4.0 Performance
To unlock the full potential of the PCIe 4.0 U.2/U.3 NVMe SSD, each drive bay uses a dedicated OCuLink (SFF-8612) connector to achieve the bandwidth rate of 64Gb/s, which is two times faster than PCIe 3.0 and 10 times faster than SATA standards. The extremely fast IOPS (Input/output operations per second) makes it an ideal solution for data-intensive applications such as autonomous driving, mobile automation, real-time forecast, film editing, and military computing.

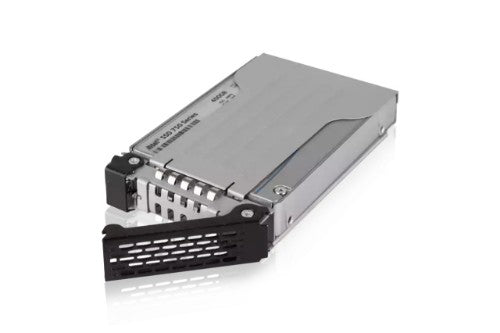

Removable Drive Tray Design

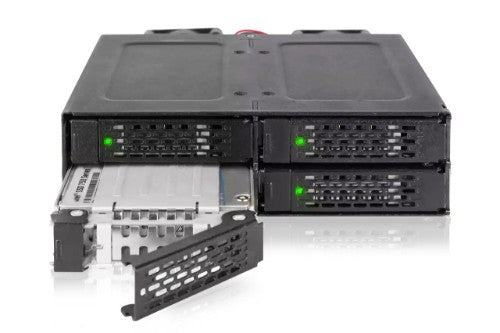

Typically, NVMe U.2/U.3 SSDs are installed inside the computer case, which can be tough to reach when it requires maintenance. With the ToughArmor MB699VP-B V3, your drives are brought to the frontal 5.25" optical drive bay, where the U.2/U.3 SSDs can be easily accessed, making drive maintenance more efficient and straightforward process. The removable drive trays support any standard U.2/U.3 SSD from 5mm to 15mm drive height.

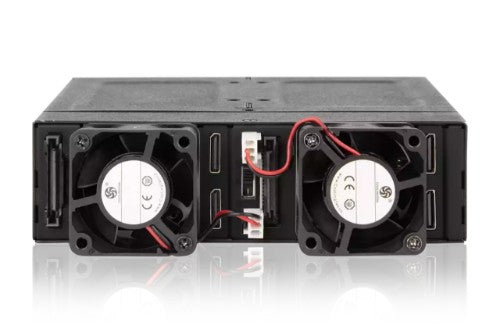

Maximizing Cooling Performance
Built-in with the dual 40x20mm cooling fans, the heat generates by U.2/U.3 SSD is further dispersed through the intelligently place ventilation holes throughout the entire enclosure. The dual cooling fans come with three fan speed settings: High, Low, and off. The user can choose the appropriate fan speed option to keep the drives at optimal operating temperatures.

EMI Grounding Technology
Grounding your drives are essential as swapping drives without the proper grounding may lead to hardware damage due to static shocks. With our innovative EMI Grounding Technology, once the drive is screwed onto the drive tray, the drive will be in a constant grounded state throughout the tray, housing, and computer system to ensure your drives are protected from static electrical surges safe during swapping.

ToughArmor Protection

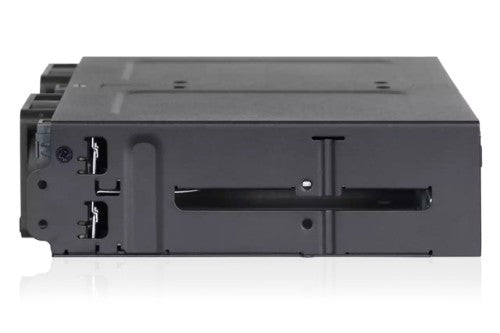

Ensuring the enclosure can be relied upon for many years, the ToughArmor MB699VP-B V3 is capable of holding up in the harshest environment. It comes equipped with rugged, heavy-duty full-metal protection throughout the entire device and tray, making it perfect for industrial devices that may require a flammability rating. The outstanding build quality is suitable for various enterprise systems such as military and law enforcement industries, in-vehicle computers, and manufacturing conditions such as embedded control and factory automation systems.

Packed with Features
An LED status light built into the tray lets you know your drive is powered up and in use. The LED will shut off when no drives are installed to save power.

Never forget which drives belong in what bays. With included individual drive ID labels, you'll always know which drive tray belongs in your RAID array or which drives contains specific files. Freely unplug and rearrange them to better suit your configurations or remove them for a simplified look.

The ToughArmor MB699VP-B V3 supports 15-pin SATA power cables with locking latches. You'll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, they will lock and stay in place.

(Optional) M.2 NVMe SSD to U.2 NVMe SSD Adapter
Converting your M.2 NVMe SSD into U.2 NVMe SSD with MB705M2P-B adapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs.

Specifications

Storage
Number of storage drives supported	4
Storage drive size	2.5"
Supported storage drive interfaces	PCI Express
Supported storage drive heights	15 mm
NVMe	Yes
Ports & interfaces
USB connectivity	No
Technical details
Number of fans	2 fan(s)
Material	Metal
LED indicators	Access, Power
Fan diameter	1.57" (4 cm)
Data transfer rate	64 Gbit/s
Product colour	Black
Design
Product type	SSD enclosure
Certification	CE, RoHS, REACH
Number of fans	2 fan(s)
Material	Metal
LED indicators	Access, Power
Fan diameter	1.57" (4 cm)
Product colour	Black
Performance
Data transfer rate	64 Gbit/s
Power
Power source type	SATA
Packaging data
Package weight	32.1 oz (911.2 g)
Certificates
Certification	CE, RoHS, REACH
Operational conditions
Storage temperature (T-T)	-35 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 65%
Weight & dimensions
Weight	33.4 oz (945.7 g)
Width	5.75" (146 mm)
Depth	5.52" (140.3 mm)
Height	1.63" (41.3 mm)
Package weight	32.1 oz (911.2 g)
Packaging content
Screws included	Yes
Manual	Yes
