24", 1920 x 1080p, FHD, 3000:1, LED, 250cd/m2, 16:9, 60Hz, HDMI 1.4, DisplayPort, USB 3.2 Type-A x2, USB 3.2 Type-B, VGA
Key Features
- Touch function for wet hands and multiple types of glove
- Pen clicks & Palm rejection technology
- 4-sides frameless design and optional stand for flexibility
- Friendly touch mode setting
- Intuitive touch OSD with ViewSonic Touch Controller
Description
The ViewSonic's TD2465 is the ideal solution for commercial and industrial spaces. Designed for wet hands touch, glove touch, and for any conductive stylus’ tip touch including pencil. The TD2465 delivers an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring ViewSonic Touch Controller software, allowing you to control the device intuitively. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities. Equipped with VESA mounting design for any surface and Kiosk, the touch screen is the perfect display for various.
Designed For Versatile Installation OptionsThe 24" touch monitor is your one-stop solution for industrial, retail, and commercial applications. Whether a self-ordering kiosk or industrial automation control unit, the TD2465 delivers versatile installation options and an intuitive 10-point touch response technology.
Intuitive and Responsive TouchExperience a smooth, and responsive touchscreen with the high-sensitive Projective Capacitive (PCAP) Touch Technology. With up to 10 touch point simultaneous input, each touch response is read with accuracy and precision.
Made for tough conditionsThe TD2465 is able to register fingerprints even when your hands are wet. Ideal for those situations where you often get your hands wet, and you need your equipment to keep up.
Glove Touch ModeDifferent tasks require different accessories, and gloves are no exception. Glove touch successfully eliminates the hassle of removing your gloves every time you need to perform an action onscreen.
Water Tolerant SurfaceDesigned to work when you need it. Work in humid conditions without an issue with the TD2465’s Water-Resistant Touch mode.
Stylus CompatibilityThe TD2465 is equipped with palm rejection and full support for multiple types of pen. Passive, active pen can be used without the hassle of installing drivers. Click functions are even enabled for pencils.

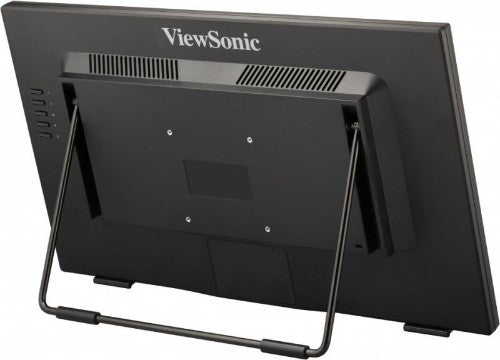

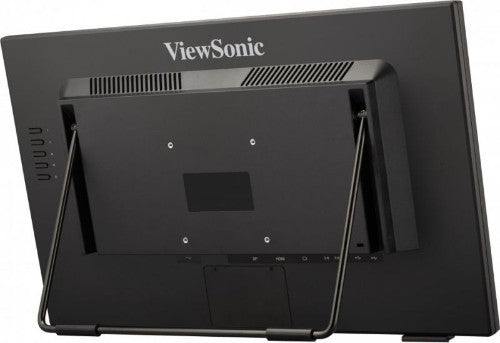

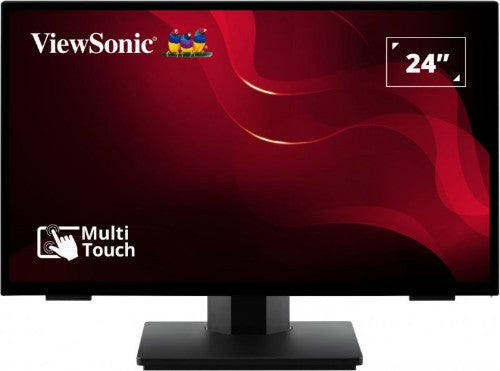

Advanced ErgonomicsThe TD2465 comes complete with two types of monitor stands to ensure you have the setup you need no matter the situation. The book stand is designed with an advanced hinge, allowing the display to be tilted and adjusted between 15 ° ~70°, making it great for diverse applications. The classic stand is perfect for more conventional uses, with a tilt angle of up to 20°.
Easy Kiosk IntegrationThe 4-sides frameless design of the TD2465 display allows for seamless and secure attachment to your preferred kiosk design, allowing it to be installed and integrated to best suit any application you require.
Touch Controller SoftwareIntuitive interface design offers shortcuts for an easy way to adjust volume, brightness, contrast, and touch modes.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Touchscreen |
Yes |
| Display technology |
LED |
| Display diagonal |
24" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
250 cd/m² |
| HD type |
Full HD |
| Response time |
7 ms |
| Contrast ratio (typical) |
3000:1 |
| Contrast ratio (dynamic) |
20000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Panel life |
30000 h |
| Native aspect ratio |
16:9 |
| Maximum frame rate |
60 fps |
| Surface hardness |
7H |
| Native refresh rate |
60 Hz |
| RGB colour space |
sRGB |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-B |
| USB port |
Yes |
| HDMI version |
1.4 |
| Wi-Fi |
No |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
No |
| HDMI ports quantity |
1 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
3 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
4 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Interactive flat panel |
| Product colour |
Black |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Tilt adjustment |
Yes |
| Performance |
|---|
| Purpose |
Commercial |
| Wi-Fi |
No |
| Panel life |
30000 h |
| Power |
|---|
| Power consumption (typical) |
24 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
D |
| Energy consumption (SDR) per 1000 hours |
14 kWh |
| Computer system |
|---|
| Built-in processor |
No |
| Weight & dimensions |
|---|
| Width (with stand) |
21.7" (550 mm) |
| Height (with stand) |
7.8" (198 mm) |
| Depth (with stand) |
15.8" (401 mm) |
| Weight (with stand) |
12.6 lbs (5.7 kg) |
| Display width |
21.7" (550 mm) |
| Display depth |
1.93" (49 mm) |
| Display height |
12.8" (326 mm) |
| Display weight |
10.4 lbs (4.7 kg) |
| Packaging data |
|---|
| Package width |
25.5" (647 mm) |
| Package depth |
16.8" (426 mm) |
| Package height |
5.43" (138 mm) |
| Package weight |
15.9 lbs (7.2 kg) |
| Packaging content |
|---|
| Tilt angle |
20° |
| Tilt adjustment |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A, USB Type-B |
| Weight (with stand) |
12.6 lbs (5.7 kg) |
| Other features |
|---|
| USB connector type |
USB Type-A, USB Type-B |
| Wi-Fi |
No |
| Width (with stand) |
21.7" (550 mm) |
| Height (with stand) |
7.8" (198 mm) |
| Display technology |
LED |
| Depth (with stand) |
15.8" (401 mm) |
| Weight (with stand) |
12.6 lbs (5.7 kg) |
| Energy efficiency scale |
A to G |
| Tilt adjustment |
Yes |
