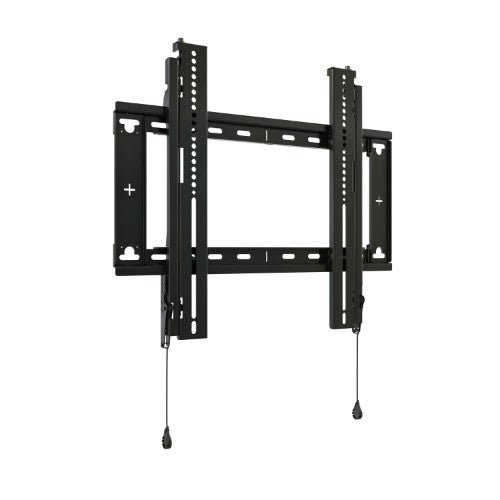

Chief RMF3 TV mount 65" Black

32" - 65", max. 56.7 kg, max. 550 x 450 mm, Black

Key Features

• Low-profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements
• Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 550 x 450 mm
• Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent security options (not included)
• UL and TUV safety standards compliant

Description

The Fit series RMF3 is a medium fixed display wall mount for 32” to 65” typical display sizes and supports mounting patterns up to 550 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	32"
Number of displays supported	1
Maximum VESA mount	21.7 x 17.7" (550 x 450 mm)
Maximum screen size	65"
Maximum weight capacity	125 lbs (56.7 kg)
Ergonomics
Height adjustment	Yes
Height adjustment type	Manual
Technical details
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Design
Certification	TUV, UL Listed
Product colour	Black
Certificates
Certification	TUV, UL Listed
Weight & dimensions
Width	22" (559 mm)
Height	19.2" (487 mm)
Depth (min)	0.984" (2.5 cm)
Depth (max)	0.984" (2.5 cm)
Packaging data
Package weight	11.7 lbs (5.3 kg)
Quantity per pack	1 pair(s)
Other features
Mounting type	Wall
