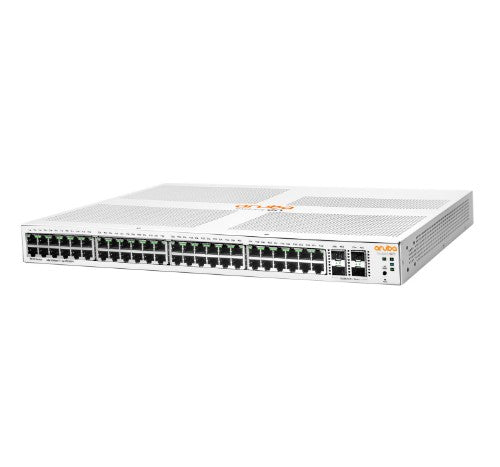

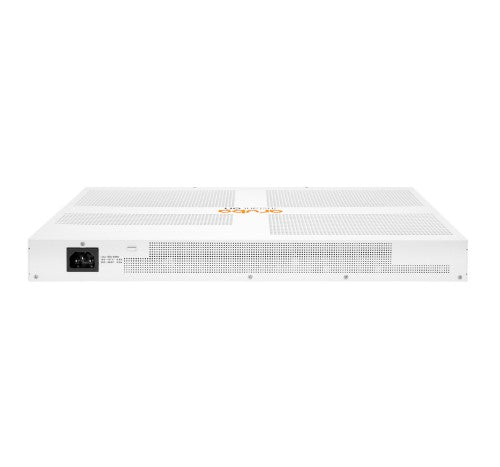

HPE Aruba Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch

Description

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

Features

Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
- The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
- The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
- Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Deliver High Perfomance
- The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
- 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
- The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2+
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Auto-sensing	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Throughput	130.95 Mpps
Latency (10-100 Mbps)	4.5 µs
Latency (1 Gbps)	2.2 µs
Latency (10 Gbps)	1.2 µs
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Design
Form factor	1U
Product colour	White
Stackable	No
Rack mounting	Yes
Performance
Processor frequency	800 MHz
Memory type	SDRAM / Flash
Internal memory	512 MB
Flash memory	256 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Packet buffer memory	1.5 MB
Stackable	No
Power
Power consumption (max)	520 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	12.7" (322.6 mm)
Height	1.73" (43.9 mm)
Weight	10.1 lbs (4.59 kg)
Technical details
Form factor	1U
Product colour	White
Stackable	No
Processor frequency	800 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	1.5 MB
Memory type	SDRAM / Flash
Internal memory	512 MB
Flash memory	256 MB
