27'', TFT LCD, 16:9, 1920 x 1080 @ 50/60Hz, AC Input, Audio in/out, VGA, HDMI, DisplayPort, USB 2.0 Type B, 2x USB 2.0 Type A, PCAP, 626.2 x 372.8 x 43.8 mm, 6.3 kg, Black, anti-glare
Key Features
- Minimalistic design to fit any space
- From 20 degrees to 70 degrees, angle the display where you want it
- Increase viewing comfort with low blue light and flicker free features
Description

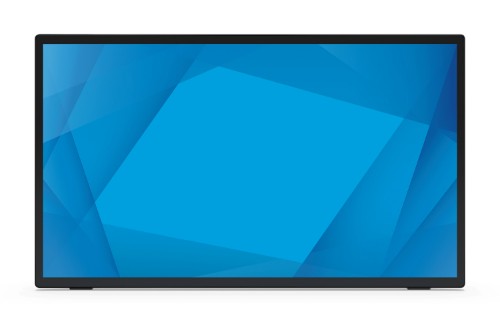

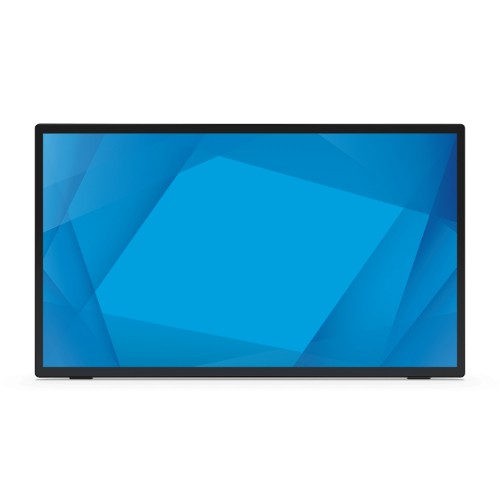

The bezel just got smaller. The 2770L 27” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Built-in speakers and integrated IO.Place it on a desktop, mount it on a wall or configure the 2770L to fit your space with VESA-compatibility. Built-in speakers and integrated IO.
Durable, energy efficient touchscreen. Scratch-resistant glass surface. IK07 impact resistant. ES8.0 certified for greater energy efficiency.
Navigate the OSD directly on the touchscreen. We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Specifications
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
4 W |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
4 W |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Display |
|---|
| Display brightness (typical) |
270 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
60 Hz |
| HD type |
Full HD |
| Display technology |
LED |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Digital horizontal frequency |
30 - 82 kHz |
| Digital vertical frequency |
50 - 75 Hz |
| Supported graphics resolutions |
640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Display resolution |
1920 x 1080 pixels |
| Response time |
14 ms |
| Display diagonal |
27" |
| Display brightness (peak) |
300 cd/m² |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Panel type |
TFT |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Anti-glare screen |
Yes |
| Management features |
|---|
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Multimedia |
|---|
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| RMS rated power |
4 W |
| Built-in camera |
No |
| Design |
|---|
| Market positioning |
Business |
| Product colour |
Black |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB hub version |
2.0 |
| USB upstream port type |
USB Type-A, USB Type-B |
| USB Type-A downstream ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDMI |
Yes |
| Number of USB Type-B upstream ports quantity |
1 |
| USB Touch ports quantity |
1 |
| USB Touch port |
Yes |
| Technical details |
|---|
| Height (without stand) |
1.72" (43.8 mm) |
| Depth (without stand) |
14.7" (372.8 mm) |
| Width (without stand) |
24.7" (626.2 mm) |
| Cable lock slot |
No |
| HDMI |
Yes |
| Product colour |
Black |
| Power supply type |
External |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
No |
| Panel mounting interface |
100 x 100 mm |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Height adjustment |
No |
| Power |
|---|
| Power supply type |
External |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
19 W |
| Power consumption (off) |
0.16 W |
| Power consumption (PowerSave) |
16.5 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
E |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Height (without stand) |
1.72" (43.8 mm) |
| Depth (without stand) |
14.7" (372.8 mm) |
| Width (without stand) |
24.7" (626.2 mm) |
| Weight (without stand) |
13.9 lbs (6.3 kg) |
| Package width |
27.7" (703 mm) |
| Package depth |
5.35" (136 mm) |
| Package height |
19.3" (489 mm) |
| Package weight |
20.8 lbs (9.45 kg) |
| Packaging data |
|---|
| Package width |
27.7" (703 mm) |
| Package depth |
5.35" (136 mm) |
| Package height |
19.3" (489 mm) |
| Package weight |
20.8 lbs (9.45 kg) |
| Other features |
|---|
| Height (without stand) |
1.72" (43.8 mm) |
| Depth (without stand) |
14.7" (372.8 mm) |
| Width (without stand) |
24.7" (626.2 mm) |
| HDMI |
Yes |
| Energy efficiency scale |
A to G |
| Power supply type |
External |
| Display brightness (peak) |
300 cd/m² |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
