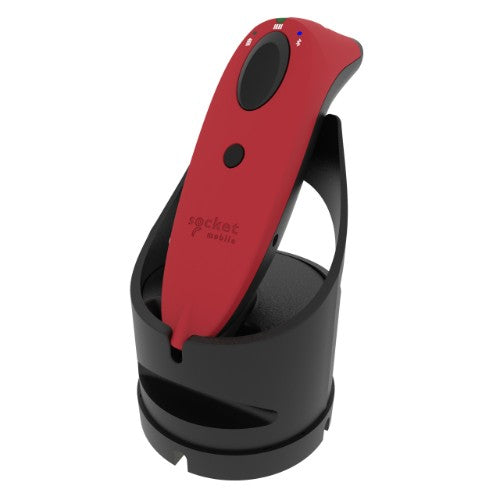

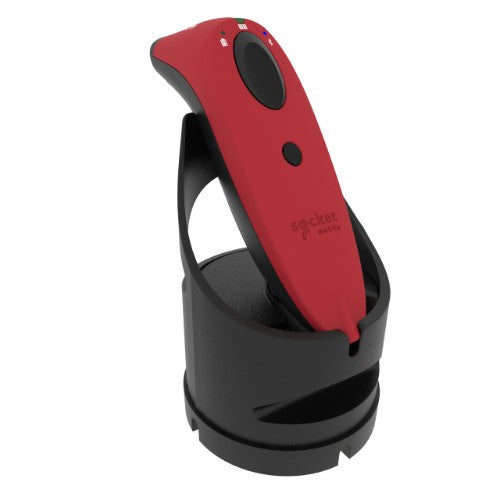

SocketScan S720 - 1D/2D Linear Barcode Plus QR Code Scanner
Key Features
- Compatible with Apple® iOS devices (iPad®, iPhone®, iPod Touch®) and Android, Windows®, Mac and Linux
- Scanning – 2D and 1D barcode scanning
- Auto Scan Mode – Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button
- Exceptional Ergonomics – Small, light and fits perfectly in hand for comfortable use over extended periods
- Long-Lasting, Replaceable, Rechargeable Battery – Power to last over 16 hours on a single charge
- User Indicators – Intuitive LEDs for Bluetooth connection, battery level and scanning status
- User Feedback – Audible tones and pulsation
- LED Aimer – Bright, rectangular illumination field with LED pointer for precise aiming
Description
The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It’s lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A |
| Working distance |
15" (38 cm) |
| Sensor type |
Laser |
| Scanner type |
1D/2D |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Optical sensor resolution (W x H) |
1280 x 960 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Wireless range |
393.7" (10 m) |
| Bluetooth version |
2.1+EDR |
| Standard interfaces |
Bluetooth |
| Performance |
|---|
| LED indicators |
Battery level, Bluetooth, Status |
| Product colour |
Black, Red |
| Country of origin |
China |
| Ambient lighting |
Yes |
| Print contrast |
25% |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Design |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Battery level, Bluetooth, Status |
| Product colour |
Black, Red |
| Power |
|---|
| Power source type |
Battery |
| Number of batteries supported |
2 |
| Charging time |
6 h |
| Battery life |
20 h |
| Battery voltage |
2.4 V |
| Battery technology |
Nickel-Metal Hydride (NiMH) |
| Battery capacity |
2000 mAh |
| Weight & dimensions |
|---|
| Width |
1.46" (37.1 mm) |
| Depth |
1.58" (40.1 mm) |
| Height |
5.2" (132.2 mm) |
| Weight |
4.13 oz (117 g) |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Battery level, Bluetooth, Status |
| Product colour |
Black, Red |
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Charging base |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Packaging content |
|---|
| Charging base |
Yes |
