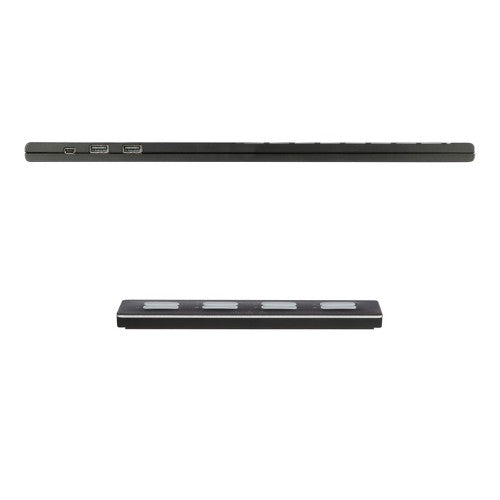

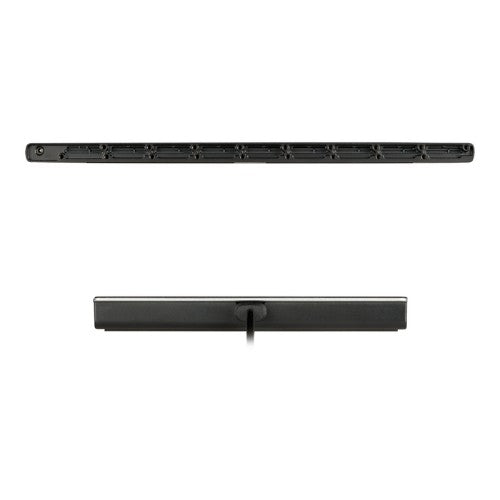

Belkin F1DN108MOD-BA-4 KVM switch Black

8-Port Single-Head Modular Secure KVM Switch Base Unit PP 4.0

Key Features

• Designed for NIAP PP PSD 4.0 compliance
• Video support for up to 4K (3840x2160), @30Hz refresh
• Optional DP, mDP, DPMST, HDMI, DVI, VGA, and USB-C cables - host and console
• Modular form factor for maximizing desk space
• Supports up to eight host computers
• Supports one display for the user
• Included remote-control unit
• Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport

Description

Meets the highest standards for cybersecurity.
The Belkin Modular Secure KVM series packs the latest in Common Criteria and NIAP Protection Profile version 4.0 design requirements in the smallest form factor available. An included remote control and innovative mount options allow administrators to craft operator stations to meet security requirements while decluttering the desk. The US-manufactured and TAA-compliant Secure KVM series is ideal for use in IT environments that demand rigorous cybersecurity provisions — including government, military and healthcare applications.

The Belkin Difference
Small footprint for 8-port, single-monitor Secure KVM
Futureproof design supports current and upcoming video standards up to 4K @ 30Hz with replaceable TAA-compliant cables

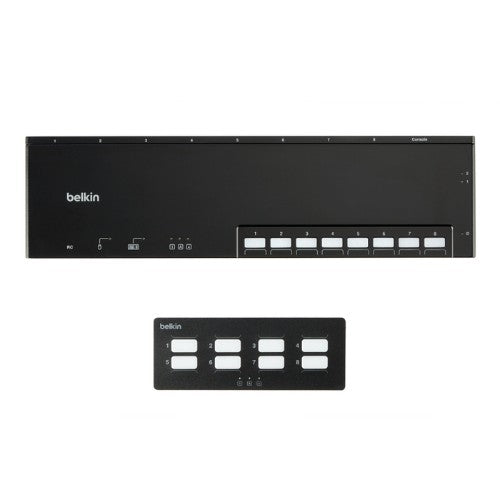

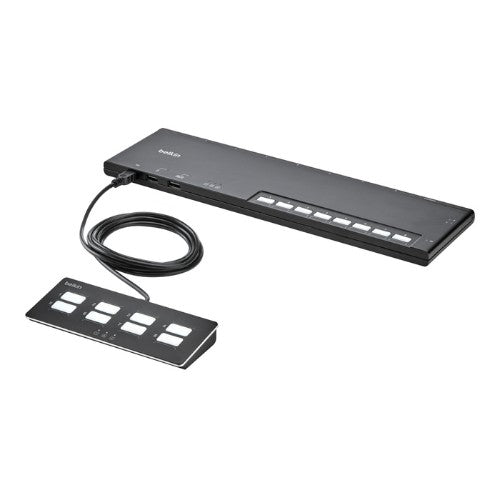

Included remote control supports full Secure KVM control while decluttering the desk
Optional mounting hardware supports VESA mounting and under-desk mounting
Designed for NIAP Protection Profile 4.0 compliance
US-based free technical support

Prevents data leakage between computers with shared peripherals.
Ideal for highly sensitive applications that demand isolation between different network security enclaves, the Belkin Modular Secure KVM switches utilize optical data diodes and peripheral emulation on each channel. This helps prevent data leakage between computers while maintaining strict air-gap isolation, even when sharing peripherals.

Universal compatibility with tailored smart cables.
TAA-compliant, purpose-built cables help IT administrators circumvent compatibility issues during installation, maintenance and upgrades. This flexibility enables IT managers to deploy the same Secure KVM switch across their network without needing expensive and unreliable video converters while extending the usable life of the Secure KVM.

Accessories facilitate easy installation.
Designed for maximum flexibility, the Belkin Modular Secure KVM series adapts to fit your particular installation needs. Innovative, optional mounts support under desk and monitor back VESA mounting. All mounts include integrated cable management for a clean and decluttered desk. The included remote control provides full operator control for a streamlined user experience. Extended warranty options allow administrators to synchronize the life-cycle expectancies of the secure KVMs with other IT components on an operator’s desk.

Specifications

Ports & interfaces
Console ports	DVI-D, DisplayPort, HDMI, Mini DisplayPort, USB C, VGA (D-Sub)
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D/HDMI/VGA
Performance
HD type	4K Ultra HD
Video bandwidth	30 Hz
Maximum resolution	3840 x 2160 pixels
Number of displays supported	1
Technical details
Product colour	Black
LED indicators	Yes
Mounting interface	VESA
Compliance certificates	Trade Agreements Act (TAA)
Design
Wired remote switch	Yes
Product colour	Black
LED indicators	Yes
Display
Built-in display	No
Power
Output current	2.5 A
Output voltage	12 V
Power source	AC
External power adapter	Yes
Video
HD type	4K Ultra HD
Video bandwidth	30 Hz
Maximum resolution	3840 x 2160 pixels
Sustainability
Compliance certificates	Trade Agreements Act (TAA)
Packaging content
Quick installation guide	Yes
AC adapter included	Yes
Remote control included	Yes
Other features
Mounting interface	VESA
