Description

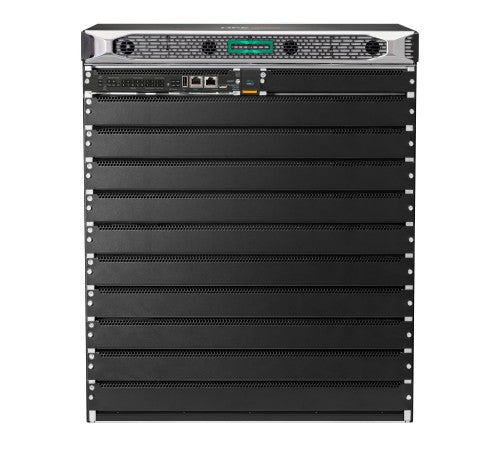

HPE Aruba Networking CX 6410 v2 Switch, Managed, L3, Power over Ethernet (PoE)
Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security-related issues easily, through the use of Python agents and REST APIs.
The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
Features high speed, non-blocking 1 GbE, 10 GbE, 25 GbE, 40 GbE, and 100 GbE for scalable connectivity.
The ability to maintain a synchronous state across dual control planes allows a simplified carrier-class high-availability solution called HPE Aruba Networking Virtual Switching Extension (VSX) that enables a distributed architecture, which is available during upgrades or control plane events.
High performance and versatile platform supports non-blocking 1 GbE, 10 GbE, 25 GbE, 40 GbE, and 100 GbE connections, and high density connectivity for aggregation with up to 480 ports of HPE Smart Rate multi-gigabit (1/2.5/5GbE) with 60W PoE for a total of 28,880W of PoE.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.
Key Features
- High performance modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS, and delivers up to 28 Tbps in non-blockling bandwidth
- High availability with industry-leading VSX and redundant power supplies and fans
- Full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ modules
- High speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE with intelligent monitoring, visibility and remediation with Aruba Network Analytics Engine
- Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
- Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT
Reasons To Buy
Automation and Analytics
The HPE Aruba Networking CX 6400 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Network Analytics Engine automatically interrogates and analyzes events that can impact network health.Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security-related issues easily, through the use of Python agents and REST APIs.
The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
High Availability and Performance
The HPE Aruba Networking CX 6400 Switch Series uses a fully distributed architecture with Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.Features high speed, non-blocking 1 GbE, 10 GbE, 25 GbE, 40 GbE, and 100 GbE for scalable connectivity.
The ability to maintain a synchronous state across dual control planes allows a simplified carrier-class high-availability solution called HPE Aruba Networking Virtual Switching Extension (VSX) that enables a distributed architecture, which is available during upgrades or control plane events.
High performance and versatile platform supports non-blocking 1 GbE, 10 GbE, 25 GbE, 40 GbE, and 100 GbE connections, and high density connectivity for aggregation with up to 480 ports of HPE Smart Rate multi-gigabit (1/2.5/5GbE) with 60W PoE for a total of 28,880W of PoE.
Smarter Segmentation
The HPE Aruba Networking CX 6400 Switch Series supports Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless infrastructures.Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.
Description
HPE Aruba Networking CX 6410 v2 Switch. Switch type: Managed, Switch layer: L3. Switching capacity: 28000 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE)Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| Data transmission | |
| Throughput | 20000 Mpps |
| Switching capacity | 28000 Gbit/s |
| Design | |
| Product colour | Black |
| Compatible products | R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 16000 MB |
| Built-in processor | Yes |
| Power | |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Manageability features | Aruba AirWave, Aruba Central Network Management, Aruba NetEdit, Aruba CX Mobile App, Command-line interface, SNMP v2c/v3, RMON |
| Weight & dimensions | |
| Width | 20.8" (528.8 mm) |
| Depth | 17.4" (442.6 mm) |
| Height | 20.8" (528.8 mm) |
| Weight | 117.9 lbs (53.5 kg) |
| Technical details | |
| Product colour | Black |
| Processor frequency | 1800 MHz |
| Manageability features | Aruba AirWave, Aruba Central Network Management, Aruba NetEdit, Aruba CX Mobile App, Command-line interface, SNMP v2c/v3, RMON |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR4-SDRAM |
| Internal memory | 16000 MB |
| System requirements | |
| Compatible products | R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C |
