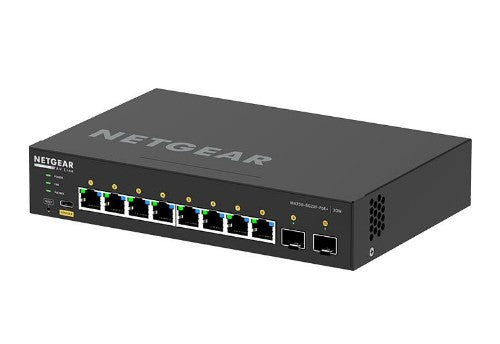

8x1G PoE+ 220W and 2xSFP+ Managed Switch
Description
Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES MADE SIMPLEPre-configured to get you up and running faster
FAST, EASY CONFIGURATION FOR AV PROSA streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISEMost models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOXWith built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Network |
|---|
| IGMP snooping |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Full duplex |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Technical details |
|---|
| Product colour |
Black |
| Noise level |
30.06 dB |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Data transmission |
|---|
| Latency (1 Gbps) |
24 µs |
| MAC address table |
16000 entries |
| Switching capacity |
24 Gbit/s |
| Store-and-forward |
Yes |
| Security |
|---|
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
MAC-based authentication |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS |
| DHCP features |
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Memory |
|---|
| Internal memory |
2048 MB |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
PoE, Power, Status |
| Rack mounting |
Yes |
| Performance |
|---|
| Noise level |
30.06 dB |
| Internal memory |
2048 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A9 |
| Indication |
|---|
| LED indicators |
PoE, Power, Status |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
220 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
220 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Heat dissipation |
559.555 BTU/h |
| Weight & dimensions |
|---|
| Width |
8.27" (210 mm) |
| Depth |
5.51" (140 mm) |
| Height |
1.57" (40 mm) |
| Weight |
34.1 oz (967 g) |
| Packaging data |
|---|
| User guide |
Yes |
| Manual |
Yes |
| Packaging content |
|---|
| User guide |
Yes |
| Manual |
Yes |
