E-ATX/ATX/mATX/Mini ITX, Steel, 2x USB 3.0, Audio
Key Features
- Accommodates E-ATX (up to 280 mm) / ATX / mATX / Mini ITX Motherboards
- Up to four HDDs and six SSDs (or three HDDs and five SSDs with one optical bay in use)
Description
Stylish, smart and sophisticatedDesign fuses with function in a case that offers both aesthetics and flexibility
A hidden compartmentTwo neatly concealed 5.25” bays with storage drawer and magnetic cover
Boosting airflowThe top panel can be quickly removed, making place for two additional fan placements

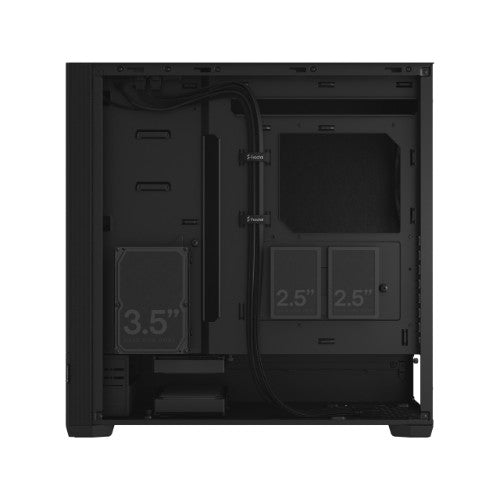

Flexible storage support- Three ultra-versatile storage trays support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included

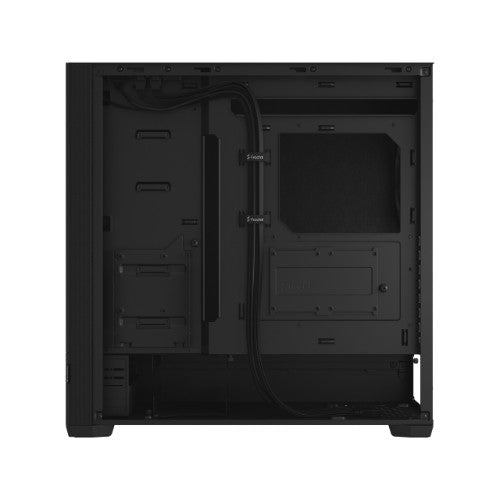

- Enjoy multiple tie-down points, pre-mounted cable ties and extra-large pass-through holes for a clean interior
Aspect FansComes with four 120 mm Aspect 12 fans pre-installed, featuring Trip Wire technology and rifle bearings for enhanced blade efficiency and reliable cooling performance
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
4 |
| Number of 2.5" bays |
4 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Supported HDD sizes |
3.5" |
| Product colour |
Black |
| Number of expansion slots |
8 |
| Maximum CPU cooler height |
7.28" (18.5 cm) |
| Maximum graphics card length |
16.9" (43 cm) |
| Maximum PSU length |
8.07" (20.5 cm) |
| Type |
PC |
| Form factor |
Tower |
| Harmonized System (HS) code |
84733080 |
| Material |
|---|
| Material |
Steel |
| Ergonomics |
|---|
| Cable management |
Yes |
| On/off button |
Yes |
| Design |
|---|
| Anti-dust filter |
Yes |
| Material |
Steel |
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
4 |
| Number of 2.5" bays |
4 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Cable management |
Yes |
| Product colour |
Black |
| Number of expansion slots |
8 |
| Maximum CPU cooler height |
7.28" (18.5 cm) |
| Maximum graphics card length |
16.9" (43 cm) |
| Maximum PSU length |
8.07" (20.5 cm) |
| Type |
PC |
| Form factor |
Tower |
| On/off button |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
0 |
| Cooling |
|---|
| Front radiator sizes supported |
360 mm |
| Rear radiator sizes supported |
140 mm |
| Top radiator sizes supported |
280 mm |
| Front fans installed |
3x 120 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Storage |
|---|
| Supported HDD sizes |
3.5" |
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Width |
9.06" (230 mm) |
| Depth |
20.6" (522 mm) |
| Height |
20.5" (520 mm) |
| Weight |
22.9 lbs (10.4 kg) |
| Packaging data |
|---|
| Package width |
13" (330 mm) |
| Package height |
24.6" (625 mm) |
| Package depth |
23.9" (608 mm) |
| Package weight |
26.7 lbs (12.1 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Harmonized System (HS) code |
84733080 |
