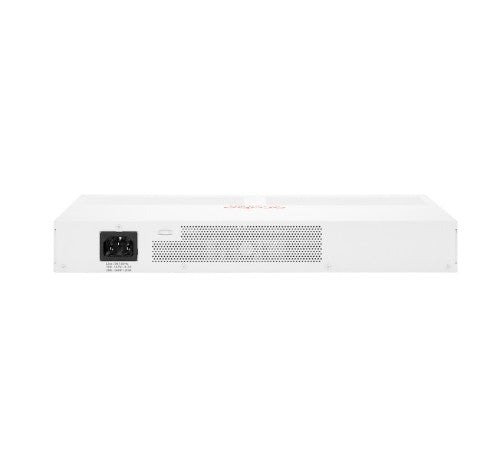

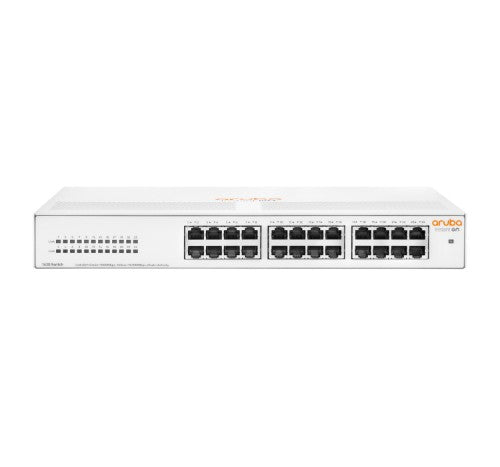

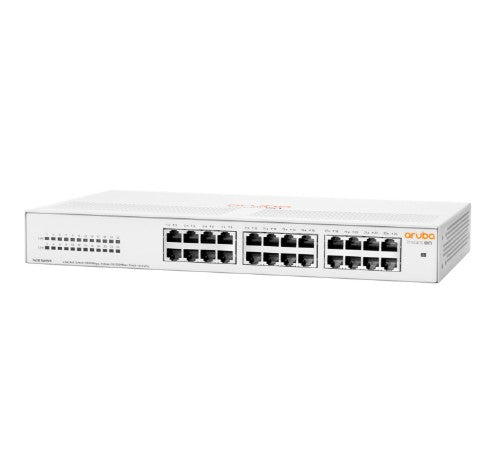

HPE Aruba Networking Aruba Instant On 1430 24G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Description
HPE Aruba Networking Aruba Instant On 1430 24G. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8192 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U
Specifications
| Ports & interfaces |
|---|
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Performance |
|---|
| Packet buffer memory |
2 MB |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
White |
| Rack mounting |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Network |
|---|
| Auto-sensing |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex |
Yes |
| Flow control support |
Yes |
| 10G support |
No |
| Data transmission |
|---|
| Throughput |
35.71 Mpps |
| Latency (10-100 Mbps) |
2.7 µs |
| Latency (1 Gbps) |
1.8 µs |
| Packet buffer memory |
2 MB |
| MAC address table |
8192 entries |
| Switching capacity |
48 Gbit/s |
| Jumbo frames support |
Yes |
| Memory |
|---|
| Packet buffer memory |
2 MB |
| Design |
|---|
| Form factor |
1U |
| Product colour |
White |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
11.7 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Number of power supply units |
1 |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Weight & dimensions |
|---|
| Width |
8.86" (225 mm) |
| Depth |
13.4" (340 mm) |
| Height |
1.73" (44 mm) |
| Weight |
4.21 lbs (1.91 kg) |
