APC SMT750IC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 500 W 6 AC outlet(s)

APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA

Key Features

• Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices
• Includes: CD with software, Documentation CD, USB cable

Reasons To Buy

SmartConnect

Cloud-based remote power monitoring via SmartConnect Ethernet Port

PowerChute Serial Shutdown

Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

Description

Stay always online and prevent data loss
As soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Battery life

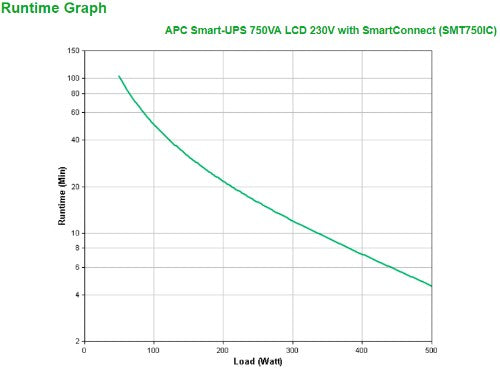

You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.

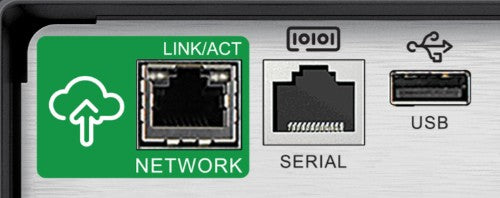

SmartConnect
Out-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).

* Extend access to SmartConnect through the following licenses:
1 year Standard Plan: ERWPMON1-1Y-DIGI
3 year Standard Plan: ERWPMON1-3Y-DIGI

1 year Advanced Plan: ERWPLUS1-1Y-DIGI
3 year Advanced Plan: ERWPLUS1-3Y-DIGI

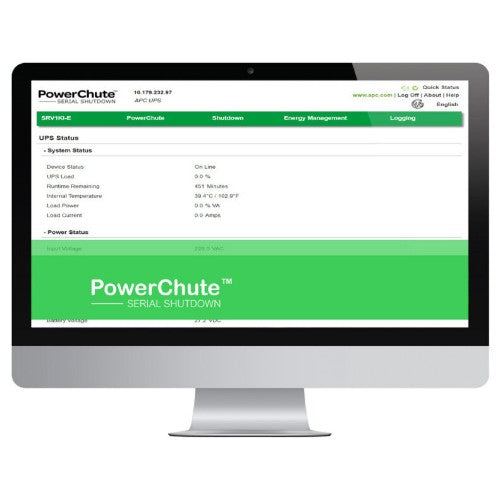

PowerChute
By connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power outage and thus prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.

Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens.

Ease of use
By means of physical buttons and an LCD screen make it possible to set and read the basic functionalities.

Extend the lifespan
The internal battery cartridge (RBC48) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT750IC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Warranty extension
The manufacturer's warranty of the SMT750IC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-02).


Included in the box
1x SMT750IC
1x USB cable 2 meters
2x C13 to C14 power cord 2 meters
1x Software CD with PowerChute Serial Edition
1x Cat5E ethernet cable
1x Documentation CD

Specifications

Power
Output power	500 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	540 J
Efficiency	98%
Output power capacity	0.75 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	72" (1.83 m)
USB port	Yes
SmartSlot	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Number of output IEC jumpers	2
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Status
Noise level	40 dB
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Output power	500 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	540 J
Efficiency	98%
Noise level	40 dB
Audible alarm(s)	Yes
Output power capacity	0.75 kVA
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	15.8 min
Typical backup time at full load	4.6 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Form factor	Tower
LED indicators	Status
Product colour	Black
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Cable length	72" (1.83 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	639.93
Compliance certificates	RoHS
Certificates
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Manual	Yes
Cables included	USB cable
Bundled software	Powershute Serial Edition
Sustainability
Sustainability certificates	Green Premium
Weight & dimensions
Package width	10.9" (278 mm)
Package depth	19.6" (499 mm)
Package height	11.9" (301 mm)
Weight	29.1 lbs (13.2 kg)
Width	5.43" (138 mm)
Package weight	31.3 lbs (14.2 kg)
Height	6.18" (157 mm)
Depth	14.1" (358 mm)
Packaging data
Quick installation guide	Yes
Manual	Yes
Cables included	USB cable
Package width	10.9" (278 mm)
Package depth	19.6" (499 mm)
Package height	11.9" (301 mm)
Bundled software	Powershute Serial Edition
Package weight	31.3 lbs (14.2 kg)
Logistics data
Products per pallet	24 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	639.93
