Siig CE-DK0111-S1 laptop dock/port replicator Docking USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black

USB-C, USB-A, ABS/Aluminum, Black

Description

Create a dual displays (DisplayPort/HDMI) workstation with one set of keyboard & mouse and MST technology, 100W PD, and multiple connections via 2 computers with USB-C input ports and DP 1.4 Alt mode to increase your work productivity.

Video Resolution
Supports one single display via 4K (3840x2160) @60Hz with DP 1.4 alt mode Ultra HD video resolution or dual displays via one 4K (3840x2160) @30Hz+one 1080p (2160x1080) @60Hz with DP 1.4 alt mode video resolution and 5.1-ch. surround sound.

Effortlessly Switch
Easily control/switch between two computers via the top power/switch button or 3.5mm switch cable

Security Lock
Keep your laptop safe and secure with a security lock when you work in a public place

3 Display Modes
Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays

Multiple Connectivity Ports
Adds two USB-C input ports with DP 1.4 Alt mode (Host), one DisplayPort video output port with MST technology, one HDMI video output port with MST technology, two USB-C 3.2 Gen 1 with 5V/1.5A charging ports (5Gbps), one USB-A 3.2 Gen 1 with 5V/1.5A charging port (5Gbps), two USB-A 3.2 Gen 1 ports (5Gpbs), one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one Kensington lock, one 3.5mm switch input port (for switch cable), one USB-C PD 100W (for PC1 charging only), one DC 20V/6A power jack (for PC2 charging only), and one power/switch button

USB-C/USB-A 3.2 Data Transfer
Provides two USB-C 3.2 Gen 1 with 5V/1.5A charging ports (5Gbps), two USB-A 3.2 Gen 1 ports (5Gbps), and one USB-A 3.2 Gen 1 with 5V/1.5A charging port (5Gbps) to enhance the performance and transfer capability of USB devices

Power Delivery
USB-C PD pass-through for charging PC 1 laptops, laptops, tablets, or smartphones with up to 100W, connectivity includes two USB-C 3.2 Gen 1 to USB-C cables
The included 120W power adapter ensures enough power for PC2 laptop charging (65W) and USB peripherals

1G Ethernet Data Transmission
Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port

3.5mm Headset Jack
Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection

Housing Design
ABS housing with binding aluminum strip design for reliable performance and increase efficiency
Built-in power and switch PC1/PC2 button with LED provide easy recognition of power status

Maximum Compatibility
Compatible with Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12 / 11 / 10.15 to 10.13

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	5
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Docking
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	1000BASE-T
Performance
Country of origin	China
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminum
Display modes	Extended, Mirror, Primary display
Technical details
Product colour	Black
Cable lock slot	Yes
Compliance certificates	CE, REACH, RoHS
User guide	Yes
Power
Power source type	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Output voltage	20 V
Output current	6 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 85%

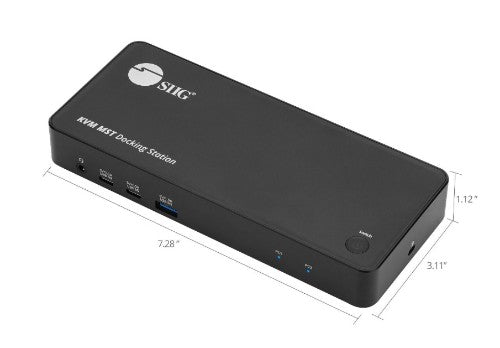

Weight & dimensions
Weight	8.78 oz (249 g)
Width	3.07" (78 mm)
Depth	7.24" (184 mm)
Height	1.06" (27 mm)
Package weight	2.45 lbs (1.11 kg)
Package width	8.03" (204 mm)
Package depth	9.8" (249 mm)
Package height	1.97" (50 mm)
Design
Country of origin	China
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Packaging data
Package weight	2.45 lbs (1.11 kg)
Package width	8.03" (204 mm)
Package depth	9.8" (249 mm)
Package height	1.97" (50 mm)

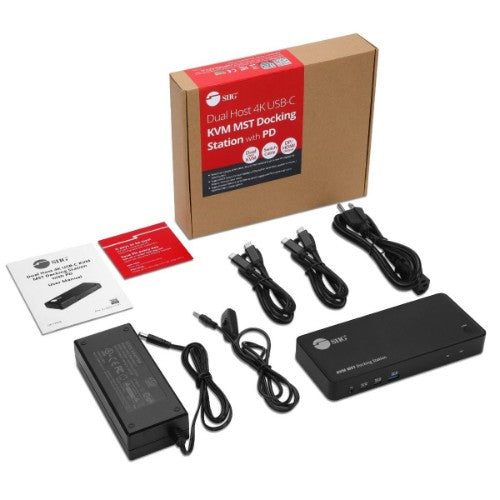

Packaging content
User guide	Yes
Cables included	3.5 mm to USB Type-C, AC, USB Type-C
