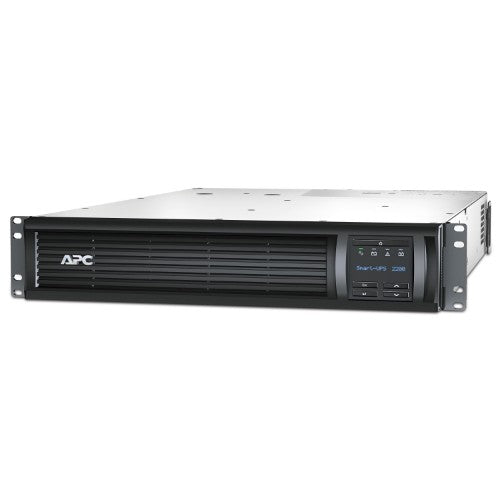

APC SMT2200R2X167 uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 10 AC outlet(s)

APC Smart-UPS, Line Interactive, 2200VA, Rackmount, 120V, 10x NEMA 5-15R outlets, SmartSlot, Auto Sense Voltage 120V/230V, AVR, LCD

Key Features

• 2200VA/1980W line interactive pure sine wave 2U rackmount UPS
• Ideal for servers, storage, networking, business VoIP, retail POS
• Automatic Voltage Regulation helps correct utility voltage
• Graceful shutdown using serial or USB cables via PowerChute Business Edition

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS with 2-post rack kit provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. It has a embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Power
Output frequency	50/60 Hz
Output power	1980 W
Input operation voltage (min)	100 V
Input operation voltage (max)	290 V
Output operation voltage (max)	120 V
Surge energy rating	1366 J
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Response time	6 ms
LED indicators	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Response time	6 ms
Output power	1980 W
Input operation voltage (min)	100 V
Input operation voltage (max)	290 V
Output operation voltage (max)	120 V
Surge energy rating	1366 J
Noise level	55 dB
Audible alarm(s)	Yes
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
Battery
Battery life (max)	5 year(s)
Battery capacity	480 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Design
Rack capacity	0U
Form factor	Rackmount
LED indicators	Yes
Product colour	Black
Certification	CSA, REACH, RoHS, WEEE
Control type	Buttons
Display type	LED
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output frequency	50/60 Hz
Doesn't contain	Mercury
Warranty period	3 year(s)
Compliance certificates	REACH, RoHS, WEEE
Certificates
Certification	CSA, REACH, RoHS, WEEE
Compliance certificates	REACH, RoHS, WEEE
Packaging content
Manual	Yes
Sustainability
Doesn't contain	Mercury
Weight & dimensions
Package width	38.6" (980 mm)
Package depth	23.6" (600 mm)
Package height	10" (254 mm)
Weight	93.5 lbs (42.4 kg)
Width	17" (432 mm)
Package weight	109.6 lbs (49.7 kg)
Height	3.39" (86 mm)
Depth	26.9" (683 mm)
Packaging data
Manual	Yes
Package width	38.6" (980 mm)
Package depth	23.6" (600 mm)
Package height	10" (254 mm)
Package weight	109.6 lbs (49.7 kg)
Logistics data
Warranty period	3 year(s)
