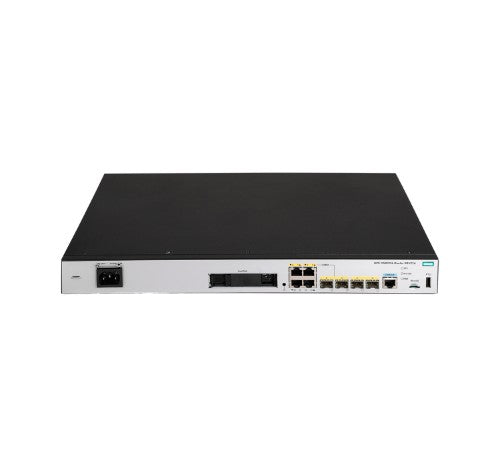

HPE FlexNetwork MSR3016 AC, Ethernet WAN, Gigabit Ethernet, Black
Description
HPE FlexNetwork MSR3016 AC. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. 3G standards: HSPA, WCDMA, 4G standard: LTE. Routing protocols: BGP4, OSPF, RIP-2, RIPng, VRRP, Management protocols: SNMPv1, SNMPv2, SNMPv3, IPv4 & IPv6 features: Dual stack IPv4/IPv6. Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, Authentication method: TACACS+, RADIUS. Processor frequency: 1200 MHz, Flash memory: 512 MB, Internal memory: 2048 MB
Specifications
| Ethernet LAN features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Memory |
|---|
| Flash memory |
512 MB |
| Internal memory |
2048 MB |
| Performance |
|---|
| Internal memory type |
DDR3 |
| Flash memory |
512 MB |
| Internal memory |
2048 MB |
| Built-in processor |
Yes |
| Processor frequency |
1200 MHz |
| Heat dissipation |
127 BTU/h |
| WAN connection |
|---|
| SFP WAN |
Yes |
| Ethernet WAN |
Yes |
| 3G/4G USB modem compatibility |
Yes |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Multicast support |
Yes |
| VLAN support |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Mobile network |
|---|
| 3G standards |
HSPA, WCDMA |
| 4G standard |
LTE |
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| Smart Interface Card (SIC) slots quantity |
4 |
| SFP module slots quantity |
2 |
| Protocols |
|---|
| Routing protocols |
BGP4, OSPF, RIP-2, RIPng, VRRP |
| Management protocols |
SNMPv1, SNMPv2, SNMPv3 |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Technical details |
|---|
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Processor frequency |
1200 MHz |
| Product colour |
Black |
| Heat dissipation |
127 BTU/h |
| Security |
|---|
| Authentication method |
TACACS+, RADIUS |
| Security algorithms |
128-bit AES, 192-bit AES, 256-bit AES |
| Access Control List (ACL) |
Yes |
| Features |
|---|
| Internal memory type |
DDR3 |
| Flash memory |
512 MB |
| Internal memory |
2048 MB |
| Built-in processor |
Yes |
| Processor frequency |
1200 MHz |
| Heat dissipation |
127 BTU/h |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Power |
|---|
| Power source type |
AC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
100 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 196850.4" (0 - 5000 m) |
| Weight & dimensions |
|---|
| Width |
17.3" (439 mm) |
| Depth |
14.2" (361 mm) |
| Height |
1.69" (43 mm) |
| Weight |
9.92 lbs (4.5 kg) |
