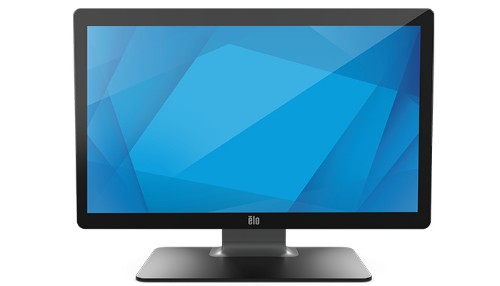

Elo Touch Solutions E659195 signage display 23.8" LED 225 cd/m² Full HD Black Touchscreen

23.8'' TFT LCD (LED), 1920 x 1080, 50 - 60 Hz, 16 msec, 225 nits, 16:9, PCAP, USB, VGA, HDMI, IEC 60601, IP-54, Black

Key Features

• DICOM 14. Ensures accurate and uniform image reproduction for reliable review
• Integrated Touch. TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves
• Built-to-Last. Backed by Elo’s 3-year standard warranty with optional EloCare service offerings
• Easy to Clean. Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays

Description

DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

DICOM 14 -
Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
- Nurse Station
- Patient Rooms
- Laboratory
- Pharmacy
- Operating Theatres
- Medical Carts

Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.

Specifications

Display
Display number of colours	16.78 million colors
Number of simultaneous touchpoints	10
Touchscreen	Yes
Display technology	LED
Display diagonal	23.8"
Display resolution	1920 x 1080 pixels
Display brightness	225 cd/m²
HD type	Full HD
Response time	16 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	24" (61 cm)
Vertical scan range	50 - 75 Hz
Supported graphics resolutions	640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
Native aspect ratio	16:9
Horizontal scan range	30 - 82 kHz
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
Touchscreen technology	Projected capacitive system
Audio
RMS rated power	2 W
Built-in speaker(s)	Yes
Design
Product colour	Black
VESA mounting	Yes
Anti-glare screen	Yes
Screen shape	Flat
Performance
International Protection (IP) code	IP54
Mean time between failures (MTBF)	50000 h
Power
Power consumption (off)	0.24 W
Power consumption (typical)	15.68 W
Power consumption (standby)	1.09 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
Weight & dimensions
Width (with stand)	17" (432.9 mm)
Height (with stand)	9.17" (233 mm)
Depth (with stand)	22.6" (574.6 mm)
Packaging data
Package width	20.7" (526 mm)
Package depth	26.8" (680 mm)
Package height	12.5" (318 mm)
Package weight	28.4 lbs (12.9 kg)
Cables included	AC, HDMI, USB, VGA
Packaging content
Cables included	AC, HDMI, USB, VGA
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95%
Technical details
VESA mounting	Yes
Power supply type	AC/DC
Number of simultaneous touchpoints	10
Display viewable area (HxV)	20.7 x 11.7" (527 x 296.5 mm)
Other features
Power supply type	AC/DC
Number of simultaneous touchpoints	10
Display viewable area (HxV)	20.7 x 11.7" (527 x 296.5 mm)
Width (with stand)	17" (432.9 mm)
Mean time between failures (MTBF)	50000 h
Height (with stand)	9.17" (233 mm)
Display technology	LED
Depth (with stand)	22.6" (574.6 mm)
Maximum refresh rate	60 Hz
