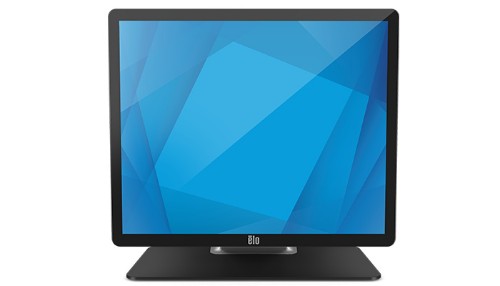

19", 1280 x 1024, 5:4, TFT, 225 nits, HDMI, VGA, USB, Black
Description
DICOM Medical Grade Touchscreen MonitorsThe 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 -Designed for Consistent Image ReviewGet the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with TouchFrom analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for HealthcareThe 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device ReadyWith a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Specifications
| Display |
|---|
| Display number of colours |
16.78 million colors |
| Panel type |
TFT |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| Display technology |
LCD |
| Display diagonal |
19" |
| Display resolution |
1280 x 1024 pixels |
| Display brightness |
225 cd/m² |
| HD type |
SVGA |
| Response time |
14 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display diagonal (metric) |
18.9" (48 cm) |
| Native aspect ratio |
5:4 |
| Anti-glare screen |
Yes |
| Maximum refresh rate |
70 Hz |
| Touchscreen technology |
Projected capacitive system |
| Ports & interfaces |
|---|
| HDMI ports quantity |
1 |
| Audio |
|---|
| RMS rated power |
2 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Wall mountable |
Yes |
| Performance |
|---|
| International Protection (IP) code |
IP54 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
8 |
| Power |
|---|
| Power consumption (off) |
0.37 W |
| Power consumption (max) |
16.36 W |
| Power consumption (typical) |
14.53 W |
| Power consumption (standby) |
0.79 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
F |
| Energy consumption (SDR) per 1000 hours |
14 kWh |
| Weight & dimensions |
|---|
| Width (with stand) |
16.9" (429.6 mm) |
| Height (with stand) |
16.9" (429.6 mm) |
| Depth (with stand) |
7.61" (193.4 mm) |
| Weight (with stand) |
13.9 lbs (6.3 kg) |
| Packaging data |
|---|
| Package width |
20.7" (527 mm) |
| Package depth |
10.2" (260 mm) |
| Package height |
19" (482 mm) |
| Package weight |
21.6 lbs (9.8 kg) |
| Cables included |
HDMI, USB, VGA |
| Packaging content |
|---|
| Cables included |
HDMI, USB, VGA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Technical details |
|---|
| VESA mounting |
Yes |
| Power supply type |
DC |
| Panel type |
TFT |
| Number of simultaneous touchpoints |
10 |
| Weight (without stand) |
9.48 lbs (4.3 kg) |
| Display viewable area (HxV) |
14.8 x 11.8" (374.8 x 299.8 mm) |
| Weight (with stand) |
13.9 lbs (6.3 kg) |
| Compliance certificates |
RoHS |
| Features |
|---|
| Wall mountable |
Yes |
| Other features |
|---|
| Power supply type |
DC |
| Panel type |
TFT |
| Number of simultaneous touchpoints |
10 |
| Weight (without stand) |
9.48 lbs (4.3 kg) |
| Display viewable area (HxV) |
14.8 x 11.8" (374.8 x 299.8 mm) |
| Width (with stand) |
16.9" (429.6 mm) |
| Viewable size, vertical |
11.8" (30 cm) |
| Viewable size, horizontal |
14.8" (37.5 cm) |
| Power consumption (max) |
16.36 W |
| Mean time between failures (MTBF) |
50000 h |
| LED indicators |
Power |
| Height (with stand) |
16.9" (429.6 mm) |
| Display technology |
LCD |
| Digital vertical frequency |
50 - 75 Hz |
| Digital horizontal frequency |
30 - 82 kHz |
| Depth (with stand) |
7.61" (193.4 mm) |
| Built-in camera |
No |
| Weight (with stand) |
13.9 lbs (6.3 kg) |
| Maximum refresh rate |
70 Hz |
| Energy efficiency scale |
A to G |
