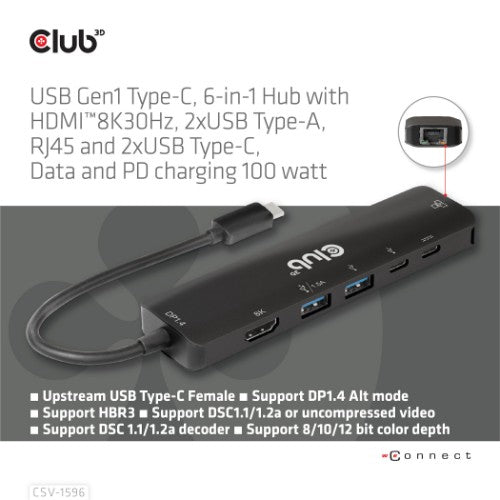

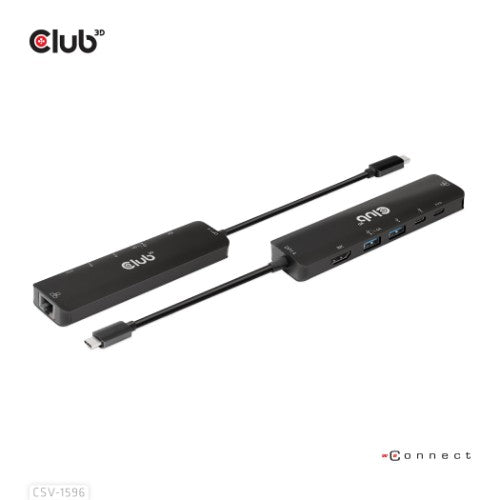

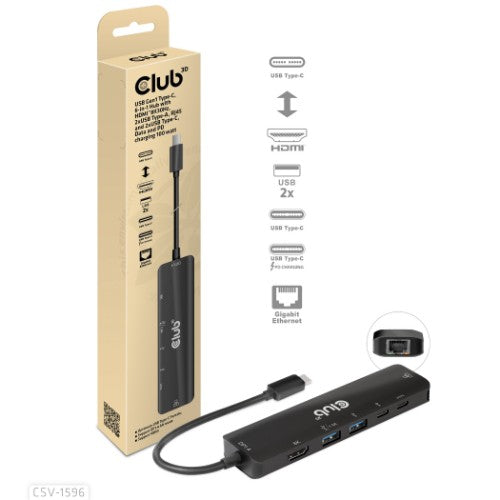

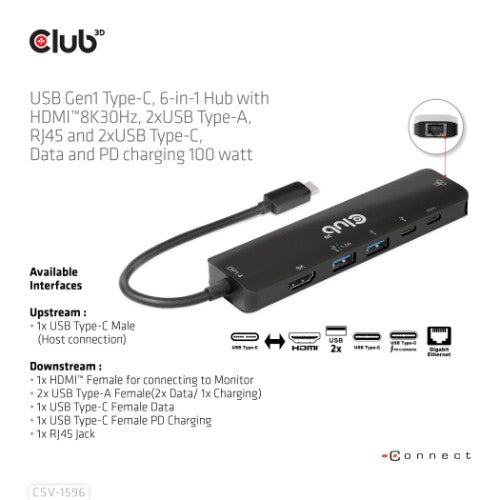

USB Gen1 Type-C, 6-in-1 Hub with HDMI 8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt
Description
The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| HDCP version |
1.4/2.3 |
| HDCP |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Number of displays supported |
1 |
| Product colour |
Black |
| Plug and Play |
Yes |
| Certification |
ROHS, FCC, CE EMI |
| HD type |
8K Ultra HD |
| Maximum refresh rate |
120 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| Hub interfaces |
HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Technical details |
|---|
| Product colour |
Black |
| Plug and Play |
Yes |
| Cable length |
11.8" (0.3 m) |
| Harmonized System (HS) code |
8473 3020 |
| Plastic packaging weight |
0.176 oz (5 g) |
| Power |
|---|
| Power consumption (max) |
7.5 W |
| Output voltage |
5 V |
| Output current |
1.5 A |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
3.14 oz (89 g) |
| Width |
4.96" (126 mm) |
| Depth |
1.26" (32 mm) |
| Height |
1.38" (35 mm) |
| Package weight |
4.8 oz (136 g) |
| Package width |
2.76" (70 mm) |
| Package depth |
1.38" (35 mm) |
| Package height |
12.6" (320 mm) |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Product colour |
Black |
| Certification |
ROHS, FCC, CE EMI |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
4.8 oz (136 g) |
| Package width |
2.76" (70 mm) |
| Package depth |
1.38" (35 mm) |
| Package height |
12.6" (320 mm) |
| Certificates |
|---|
| Certification |
ROHS, FCC, CE EMI |
| Packaging composition |
|---|
| Plastic packaging weight |
0.176 oz (5 g) |
| Paper/cardboard packaging weight |
1.48 oz (42 g) |
| Total plastic packaging weight |
0 oz (0 g) |
| Total paper/cardboard packaging weight |
0 oz (0 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
8473 3020 |
| Other features |
|---|
| Cable type |
Round cable |
| Cable length |
11.8" (0.3 m) |
