98", TFT LCD, 2158.848 x 1214.352, 3840 x 2160p, 1.07G, 500nits, 1200:1, 8ms, 4GB, 32GB, HDMI 2.1 x3, RS-232, WIFI slot, SPDIF x1, RJ45 x1, Type-A 2.0 x 1, 3.0 x1, 10w x 2, Android 11, 100 - 240V, 69.4kg, 87.12 x 49.94 x 3.11"
Key Features
- Wireless presentation for upgraded efficiency
- Single cable via USB-C with 65W power delivery
- 24/7 Sustainable video playback for continuous communication
- Remote device management with myViewBoard Manager
- ProAV compatibility with Crestron, Extron, and AMX
Description
With stunning 4K Ultra HD resolution, high brightness, and landscape and portrait modes, the CDE30 Series offers continuous and sustainable 24/7 display for both corporate and campus communication. Purpose-engineered for ease of use, the display is equipped with a Quad Core SoC to run multiple operations seamlessly, and its USB-C one-cable solution sorts for effortless connection with external devices. Designed for easy-to-operate continuous multimedia playback, the CDE30 Series offers cable-free screen casting and screen sharing through myViewBoard Display and ViewBoard Cast, which also supports Airplay and Chromecast. Remote management via the intuitive myViewBoard Manager makes changing content, broadcasting, and software updates a breeze. Available in 6 sizes ranging from 43" to 98", complete with daisy-chain compatibility, the CDE30 Series meets and exceeds the communication needs of any campus or corporate spaces.
CDE30 Series
Sleek Design with
Versatile Connectivity- Presentation Display
- Large Format Display
- Central Management and Control
- Environmentally Friendly
Connection Made EfficientThe CDE30 Series, with its USB-C connectivity, has been designed to enable ease of operation and upgraded efficiency. This all-in-one solution brings together single-cable speedy-data transfers and multimedia broadcasting while powering your connected device and providing it with fast and stable internet access.
Wireless Content Sharing
The CDE30 Series comes complete with cable-free sharing solutions. myViewBoard Display delivers instant browser-based castings for screen-mirroring with no cable or download necessary, making it perfect for quick presentations and guest users. For more advanced features, ViewBoard Cast offers split, extended, and grouped screen capabilities from any device. It also supports AirPlay and Chromecast so users can effortlessly share their screens.
Optional Windows Slot-in PC
Equipped with a slot-in PC operating on Windows OS, the CDE30 Series will further enhance your productivity. The mighty combination of dual-band Wi-Fi and Bluetooth, up to a powerful Intel® Core™ i7 Processor, 8GB (up to 64GB) RAM, and 256GB SSD storage offer you all the computing power you need to operate CPU-intensive applications.
Disclaimer:The feature is only available with certain model:CDE6530, CDE7530, CDE8630, CDE9830
Non-stop Operation Hours
Alongside its ability to run 24/7 for continuous message delivery, the CDE30 Series smoothly operates in both landscape and portrait modes to deliver the most efficient communication format. The display's brightness ensures captivating visual quality, and its daisy-chain compatibility caters for easy network topology and deployment
SoC-powered Performance

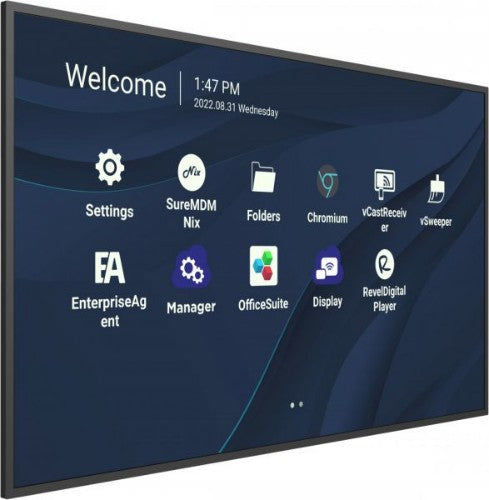

The CDE30's built-in Quad Core SoC with embedded Android 11 and capable memory can execute several tasks at once while providing smooth content playback without requiring a media player. This all-in-one digital signage solution reduces both costs and your carbon footprint, while delivering a top-notch performance without needing a PC or any additional cables.
Corporate Communication Simplified
ViewSonic myViewBoard Manager is a web-based software for IT teams and administrators that centralizes message broadcasting. With just one device, you can easily synchronize information on multiple Presentation Displays, aligning corporate communication on all levels. No matter whether it’s a general announcement, an emergency message, or a multimedia asset. You are guaranteed a reduced workload.
*For even more features, make sure to check myViewBoard Manager Advanced.
Insight Report and Remote Desktop
ViewSonic myViewBoard Manager offers better operational efficiency thanks to its browser-based centralized management system. IT admins can remotely track devices, apps, and input sources, as well as measure and optimize tool usage with clear metrics and insights reports. The Remote Desktop feature streamlines maintenance, allowing for instant support without requiring on-site IT services.
Disclaimer: Device usage status is only available with myViewBoard Manager Advanced.
Compatible with Creston, AMX, Extron
Compatible with Creston Connected V1, AMX, and Extron systems, the CDE30 Series allows for an always-on mode with complete remote control of all lightning, audio, displays, and other AV control systems both on-site and off-site.
Sustainable solutions
The CDE30 Series has been awarded EPEAT certification in the US — currently, the highest environmental rating achieved by any interactive flat panels — for meeting the required criteria on energy consumption, supply chain carbon emissions, and end-of-life management. Committed to sustainability, ViewSonic has been actively implementing advanced energy-efficient and eco-friendly practices across all its product lines.
Specifications
| Display |
|---|
| Display number of colours |
1.07 billion colors |
| Panel type |
TFT |
| LED backlighting type |
Direct-LED |
| Touchscreen |
No |
| Display diagonal |
98" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Contrast ratio (dynamic) |
5000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Native aspect ratio |
16:9 |
| Anti-glare screen |
Yes |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| DisplayPort version |
1.2 |
| HDMI version |
2.1 |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI output ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
65 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Audio |
|---|
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |

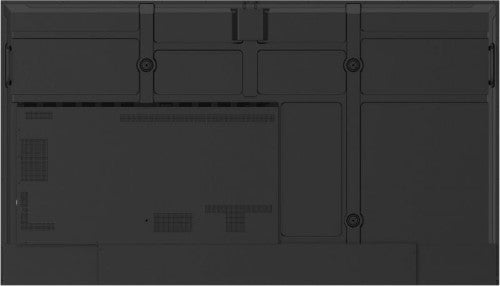

| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Wall mountable |
Yes |
| Power |
|---|
| Power consumption (off) |
0.5 W |
| Power consumption (typical) |
229 W |
| AC input voltage |
100 - 240 V |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
309 kWh |
| Performance |
|---|
| Wi-Fi |
Yes |
| Computer system |
|---|
| Processor cores |
4 |
| Operating system installed |
Android 11 |
| Built-in processor |
Yes |
| Processor architecture |
ARM Cortex-A55 |
| Weight & dimensions |
|---|
| Display width |
87.1" (2212.9 mm) |
| Display depth |
3.11" (79 mm) |
| Display height |
49.9" (1268.4 mm) |
| Display weight |
153 lbs (69.4 kg) |
| Packaging data |
|---|
| Package width |
92.9" (2360 mm) |
| Package depth |
56.1" (1425 mm) |
| Package height |
11" (280 mm) |
| Package weight |
199.1 lbs (90.3 kg) |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Manual |
Yes |
| Cables included |
HDMI, Power, RS-232, USB Type-C |
| Packaging content |
|---|
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Manual |
Yes |
| Cables included |
HDMI, Power, RS-232, USB Type-C |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A |
| Panel type |
TFT |
| DisplayPort version |
1.2 |
| LED backlighting type |
Direct-LED |
| OPS slot |
1 |
| Thin Client |
|---|
| Operating system installed |
Android 11 |
| Features |
|---|
| Wall mountable |
Yes |
| Other features |
|---|
| USB connector type |
USB Type-A |
| Panel type |
TFT |
| DisplayPort version |
1.2 |
| Wi-Fi |
Yes |
| USB 2.0 ports quantity |
1 |
| Manual |
Yes |
| Energy efficiency scale |
A to G |
