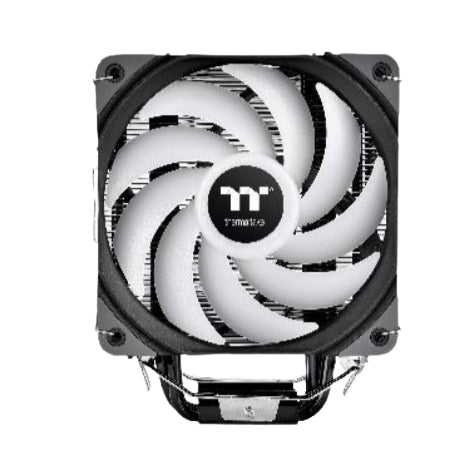

Thermaltake UX200 SE ARGB, Air cooler, 4.72" (12 cm), 800 RPM, 1800 RPM, 25 dB, 62.72 cfm
Description
Thermaltake UX200 SE ARGB. Type: Air cooler, Fan diameter: 4.72" (12 cm), Rotational speed (min): 800 RPM, Rotational speed (max): 1800 RPM, Noise level (high speed): 25 dB, Maximum airflow: 62.72 cfm, Maximum air pressure: 1.47 mmH2O, Bearing type: Hydraulic. Product color: Black, White
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Fan connector |
4-pin |
| Rotational speed (min) |
800 RPM |
| Rotational speed (max) |
1800 RPM |
| Bearing type |
Hydraulic |
| Thermal Design Power (TDP) |
170 W |
| Noise level (high speed) |
25 dB |

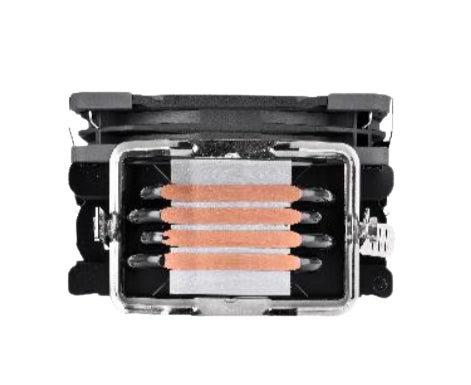

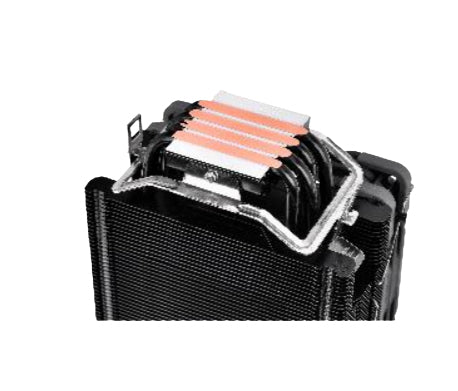

| Number of heat pipes |
4 |
| Type |
Air cooler |
| Fan diameter |
4.72" (12 cm) |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Maximum airflow |
62.72 cfm |
| Maximum air pressure |
1.47 mmH2O |
| Number of fans |
1 fan(s) |
| Number of fan blades |
9 |
| Fan's mean time to failure (MTTF) |
30000 h |
| Design |
|---|
| Fan connector |
4-pin |
| Number of heat pipes |
4 |
| Number of fans |
1 fan(s) |
| Product colour |
Black, White |
| Illumination LED |
Yes |
| Number of fan blades |
9 |
| Radiator material |
Aluminum |
| Base plate material |
Copper |
| Technical details |
|---|
| Thermal Design Power (TDP) |
170 W |
| Noise level (high speed) |
25 dB |
| Number of heat pipes |
4 |
| Type |
Air cooler |
| Fan diameter |
4.72" (12 cm) |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Maximum airflow |
62.72 cfm |
| Maximum air pressure |
1.47 mmH2O |
| Number of fans |
1 fan(s) |
| Fan connector |
4-pin |
| Illumination LED |
Yes |
| Ports & interfaces |
|---|
| Fan connector |
4-pin |
| Power |
|---|
| Rated voltage |
12 V |
| Starting voltage |
6 V |
| Thermal Design Power (TDP) |
170 W |
| Rated current |
0.3 A |
| Power supply |
4.32 W |
| Colour |
|---|
| Product colour |
Black, White |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
4.72 x 4.72 x 0.984" (120 x 120 x 25 mm) |
| Radiator width |
2.4" (6.1 cm) |
| Radiator depth |
4.8" (12.2 cm) |
| Radiator height |
6.14" (15.6 cm) |
