LGA 1700, 1200-3500 RPM, 56.84 CFM, 36.5 dB, 4-pin
Description

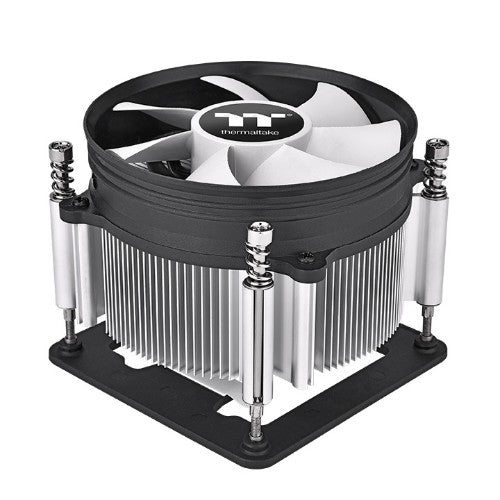

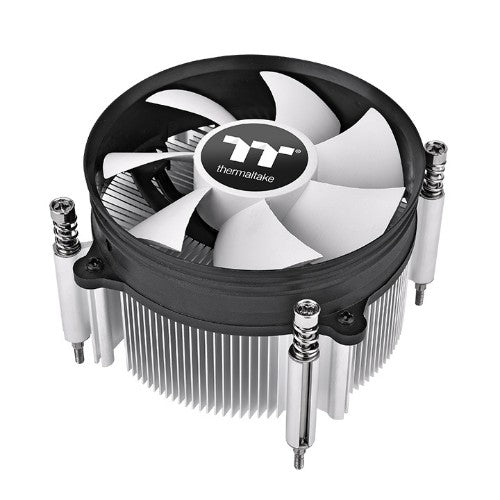

Thermaltake Gravity i3
Gravity i3 is a simple low-profile CPU cooler optimized for low power processors; with a compact size 92mm fan with a 7-bladed design and aluminium extrusion heatsink, the air cooler can dissipate heat up to 95W. Gravity i3 can only supports the latest Intel LGA 1700 Socket.

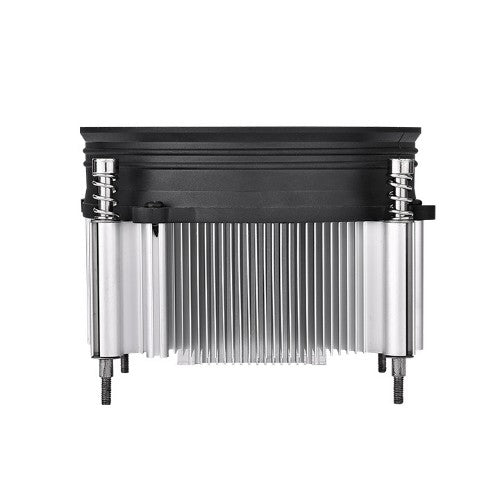

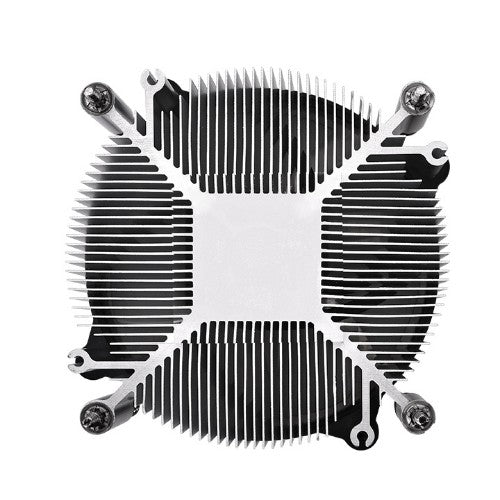

Aluminum Extrusion Design
Low-profile Gravity i3 has a perfect aluminum extrusion heatsink ratio for better heat dissipation of up to 95W.

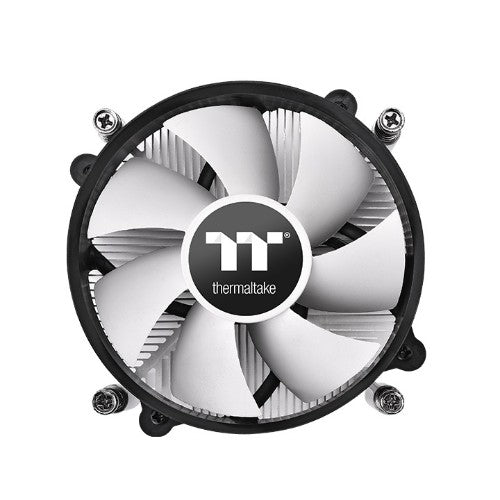

Compact Size Fan
7-bladed 92mm fan provides better cooling performance with low noise, plus, quick and easy installation.
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Fan connector |
4-pin |
| Rotational speed (min) |
1200 RPM |
| Rotational speed (max) |
3500 RPM |
| Thermal Design Power (TDP) |
95 W |
| Noise level (high speed) |
36.5 dB |
| Type |
Air cooler |
| Fan diameter |
3.62" (9.2 cm) |
| Supported processor sockets |
LGA 1700 |
| Maximum airflow |
56.84 cfm |
| Maximum air pressure |
3.01 mmH2O |
| Number of fans |
1 fan(s) |
| Mean time between failures (MTBF) |
40000 h |
| Quantity per pack |
1 pc(s) |
| Number of fan blades |
7 |
| Design |
|---|
| Fan connector |
4-pin |
| Number of fans |
1 fan(s) |
| Material |
Aluminum |
| Product colour |
Black, Stainless steel |
| Number of fan blades |
7 |
| Technical details |
|---|
| Thermal Design Power (TDP) |
95 W |
| Noise level (high speed) |
36.5 dB |
| Type |
Air cooler |
| Fan diameter |
3.62" (9.2 cm) |
| Supported processor sockets |
LGA 1700 |
| Maximum airflow |
56.84 cfm |
| Maximum air pressure |
3.01 mmH2O |
| Number of fans |
1 fan(s) |
| Material |
Aluminum |
| Fan connector |
4-pin |
| Ports & interfaces |
|---|
| Fan connector |
4-pin |
| Power |
|---|
| Rated voltage |
12 V |
| Starting voltage |
6 V |
| Thermal Design Power (TDP) |
95 W |
| Rated current |
0.25 A |
| Maximum current |
3 A |
| Colour |
|---|
| Product colour |
Black, Stainless steel |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
3.62 x 3.62 x 0.984" (92 x 92 x 25 mm) |
| Width |
3.8" (96.6 mm) |
| Depth |
3.8" (96.6 mm) |
| Height |
2.57" (65.4 mm) |
| Endurance |
|---|
| Mean time between failures (MTBF) |
40000 h |
| Packaging content |
|---|
| Thermal pad included |
Yes |

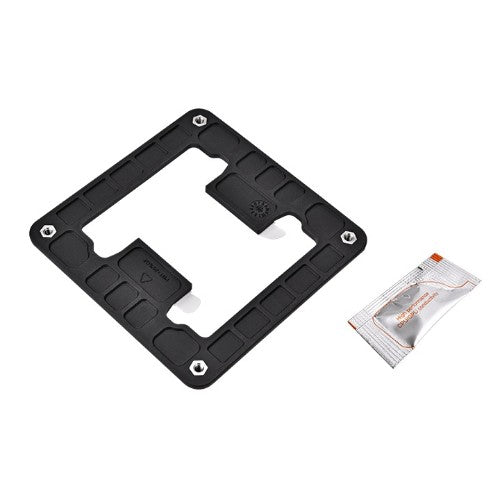

| Mounting kit |
Yes |
