StarTech.com USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure - Tool-free External M.2 PCIe/SATA NGFF SSD Aluminum Case - USB Type-C&A Host Cables - Supports 2230/2242/2260/2280 (M2-USB-C-NVME-SATA)
Key Features
- HIGH PERFORMANCE: External USB-C or USB-A NGFF storage solution for your PCIe M.2 NVMe or SATA M.2 AHCI SSD; This enclosure features USB 3.2 Gen 2 (10Gbps) with UASP support & PCI Express 3.0; Compatible with thunderbolt 3/4 host computers
- COMPATIBILITY: M.2 SATA or M.2 NVMe SSD enclosure comes with two separate 12in (30 cm) USB host cables to provide support for both USB Type-A and USB Type-C; OS Support includes Windows, Mac, Chrome, Linux, Ubuntu & iOS (iPhone 15 [Plus/Pro/Max] and up)
- TOOL-LESS INSTALLATION: The M2 SATA or M.2 NVMe SSD (solid state drive) adapter features driverless plug-and-play setup and a tool-less case design for hassle free drive installation
- M.2 COMPATIBILITY: Works w/M.2 PCIe NVMe (M-Key) & M.2 SATA (B+M-Key) based drives: 2230/2242/2260/2280 SSDs incl Samsung 850/860/870/950/960/970, Kingston, Seagate, Western Digital, HP & Intel; PCIe 4.0 SSDs (reduced speed); NOT COMPATIBLE W/22110mm
- LIGHTWEIGHT & PORTABLE: Compact aluminum housing (4.1x.14x0.5 in / 105x35x14 mm) protects the SSD & acts as a large heatsink for heat dissipation, ensuring consistency at peak performance levels
Description
Works with Both PCIe and SATA Based M.2 Drives | Supports 2230/2242/2260/2280 Drive Heights | Tool-less Drive Installation | USB-C and USB-A Host Cables Included
Turn your PCIe M.2 NVMe or SATA AHCI M.2 SSD into a highly portable, USB-based external storage solution. This enclosure features USB 3.1 Gen 2 (10Gbps) with UASP support & PCIe 3.0 delivering real read/write data transfer speeds up to 1GB per second. Working with both PCIe and SATA based drives, this enclosure ensures compatibility with many M.2 drives, supporting both M-Key (PCIe) and B+M-Key (SATA) drives sized 2230/2242/2260/2280. The enclosure is also forward compatible with PCIe 4.0 based drives, at reduced PCIe 3.0 performance.
USB 3.1 Gen 2 10Gbps (also known as USB 3.2 Gen 2x1) is backward compatible with USB 3.1 Gen 1 5Gbps (also known as USB 3.0), USB 2.0, and USB 1.1.
All-in-One M.2 and USB Solution
With compatibility for both PCIe NVMe and SATA based M.2 drives, this enclosure solves the common challenge of identifying which enclosure is compatible with your M.2 drive. Regardless of whether your M.2 drive is SATA or PCIe NVMe based, you can rest assured that this enclosure will provide a high-performance solution for turning your M.2 drive into a portable external enclosure. For further compatibility the enclosure works with multiple drive lengths supporting 2230, 2242, 2260 and 2280mm drives including Samsung (850, 860, 870, 950, 960, 970) Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives.

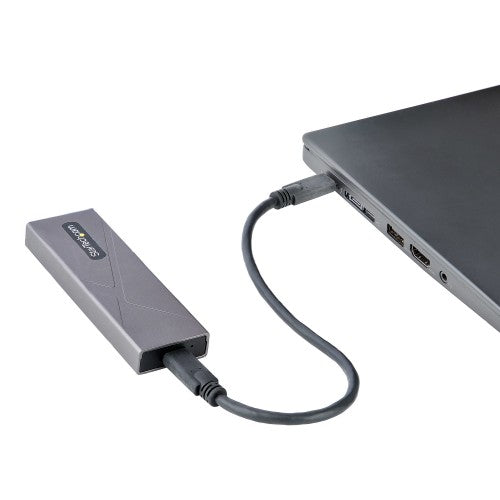

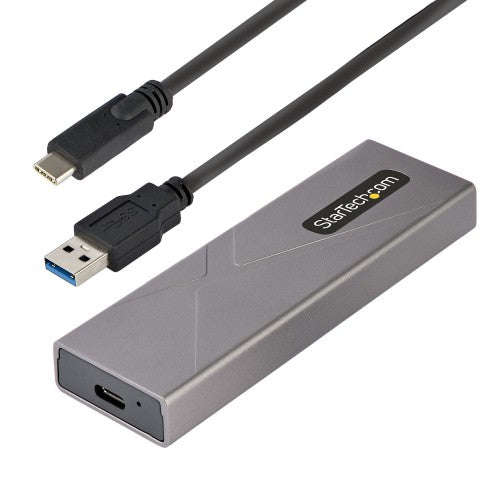

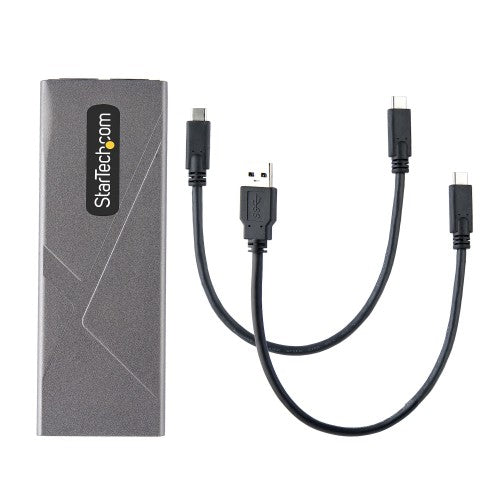

For multiplatform support this enclosure, the enclosure features a USB-C host connection, and includes two different 12 in. (30 cm) host cables, a USB-C to USB-C cable and a USB-C to USB-A cable. This combined with the backward compatibility of the USB protocol, ensures that this M.2 enclosure will work with virtually any computer, whether it's USB-A, USB-C or Thunderbolt 3/4.
Tool-Free Drive Installation

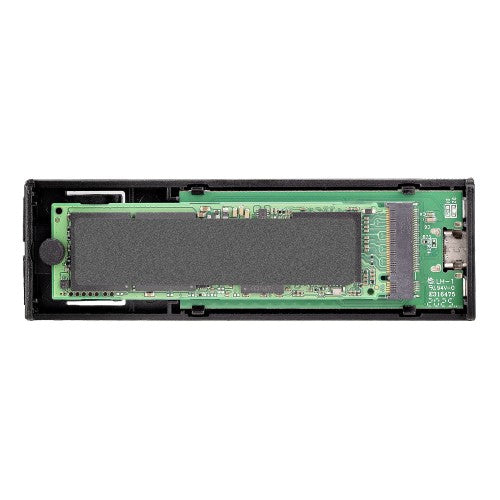

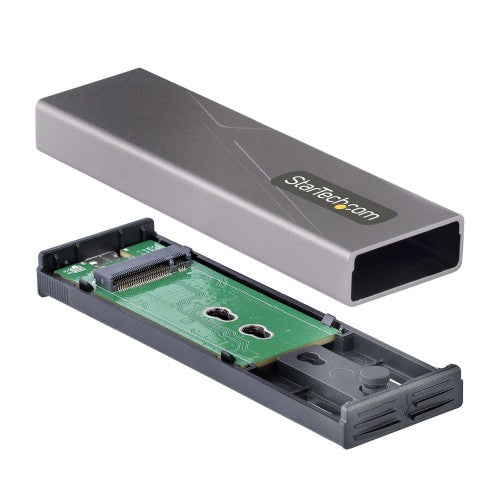

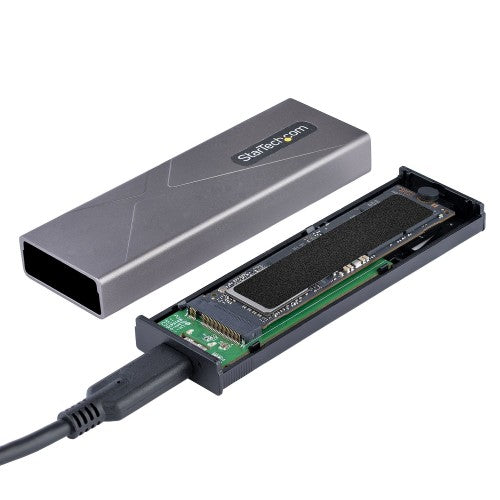

The external M2 SATA or M.2 NVMe SSD enclosure case supports driverless plug-and-play installation and features tool-less drive installation, so you can install your drive with no tools required.
Unparalleled Performance
Leverage the high speeds of your M.2 NVMe or SATA drive, with this external SSD enclosure. It delivers USB 3.2 Gen 2x1 maximum theoretical throughput of 10Gbps, which is twice the throughput of USB 3.2 Gen 1x1 at 5Gbps. The enclosure also supports PCIe 3.0 which when combined with an M.2 NVMe drive takes full advantage of the throughput available to USB 3.2 Gen 2x1.
This fan-less aluminum enclosure features ventilation holes for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance and protect your drive from overheating damage.
Durable and Portable
This slim, pocket-sized enclosure for PCIe NVMe or SATA based M.2 drives is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.
M2-USB-C-NVME-SATA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Storage |
|---|
| Number of storage drives supported |
1 |
| Storage drive size |
M.2 |
| Supported storage drive interfaces |
M.2 |
| Supported storage drive lengths |
30,42,60,80 mm |
| Ports & interfaces |
|---|
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| USB connectivity |
Yes |
| USB connector type |
USB Type-C |
| USB connector gender |
Female |
| USB ports quantity |
1 |
| Integrated USB cable |
No |
| Technical details |
|---|
| Material |
Aluminum |
| LED indicators |
Activity, Power |
| Data transfer rate |
10 Gbit/s |
| Product colour |
Gray |
| Chipset |
Realtek - RTL9210B |
| Cable length |
11.8" (0.3 m) |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| Harmonized System (HS) code |
84733080 |
| Design |
|---|
| Product type |
SSD enclosure |
| Material |
Aluminum |
| LED indicators |
Activity, Power |
| Product colour |
Gray |
| Cable length |
11.8" (0.3 m) |
| Performance |
|---|
| UASP support |
Yes |
| Mean time between failures (MTBF) |
112000 h |
| Data transfer rate |
10 Gbit/s |
| Chipset |
Realtek - RTL9210B |
| Power |
|---|
| Power source type |
USB |
| Packaging data |
|---|
| Package weight |
2.65 oz (75 g) |
| Package width |
6.69" (170 mm) |
| Package depth |
5.59" (142 mm) |
| Package height |
1.1" (28 mm) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
1.83 oz (52 g) |
| Width |
1.38" (35 mm) |
| Depth |
4.17" (106 mm) |
| Height |
0.551" (14 mm) |
| Package weight |
2.65 oz (75 g) |
| Cable length |
11.8" (0.3 m) |
| Package width |
6.69" (170 mm) |
| Package depth |
5.59" (142 mm) |
| Package height |
1.1" (28 mm) |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| Logistics data |
|---|
| Master (outer) case width |
14.3" (364 mm) |
| Master (outer) case length |
12" (305 mm) |
| Master (outer) case height |
16.3" (415 mm) |
| Products per master (outer) case |
40 pc(s) |
| Harmonized System (HS) code |
84733080 |
