Description

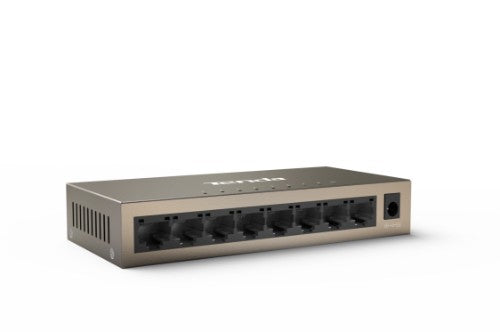

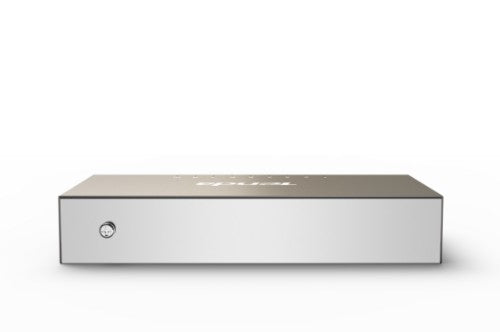

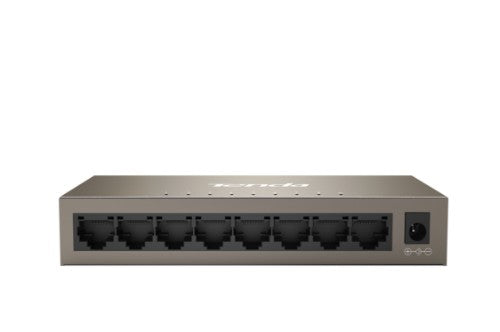

TEG1008MTEG1008M is a high-performance 8-port full Gigabit desktop Ethernet switch designed for Tenda's high-speed cascading scenarios for small and medium-sized surveillance, small and medium-sized businesses. Designed with a mini steel shell, it does not take up space and has a strong heat dissipation. Provides 8 10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments. The TEG1008M supports desktop/wall mount installation, plug and play, no setup, easy to use, and is ideal for improving network performance.
Gigabit Speed8 gigabit ports ensure the speed of the transmission of large files and improve transmission efficiency.
Support 9-12V DC Input9-12V DC input design,support centralized power supply and monitor power supply.
Wallmount & Plug-n-playsupport desktop and wallmount,plug-n-play,easy to use.
Metal Sheel , Stable OperationFull-metal & larger shell ensure effective cooling.
Specifications
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Cable types supported |
Cat5, Cat5e |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| MAC address table |
4000 entries |
| Switching capacity |
16 Gbit/s |
| Store-and-forward |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Certification |
CCC, CE , FCC |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
190 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
5 W |
| DC input voltage |
9 - 12 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
5.51" (140 mm) |
| Depth |
2.62" (66.5 mm) |
| Height |
0.996" (25.3 mm) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Performance |
|---|
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CCC, CE , FCC |
| Compliance certificates |
RoHS |
| Indication |
|---|
| LED indicators |
Yes |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
