StarTech.com 3ft (1m) USB to Serial Cable, DB9 Male RS232 to USB Converter, Prolific IC, USB to Serial Adapter for PLC/Printer/Scanner/Switch, USB to COM Port Adapter, Windows/Mac (1P3FP-USB-SERIAL)
Key Features
- USB TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this USB to serial adapter. Secure the cable using the screw-lock nuts located on the male serial DB9 connector. Reach peripherals with extended cable length 3 ft (0.91 m)
- DEVICE COMPATIBILITY: Use this USB to RS232 serial adapter to reliably connect, configure, and monitor serial devices. Compatible with barcode readers/scanners, network switches, receipt printers, PLCs, medical devices, oscilloscopes, scales, etc

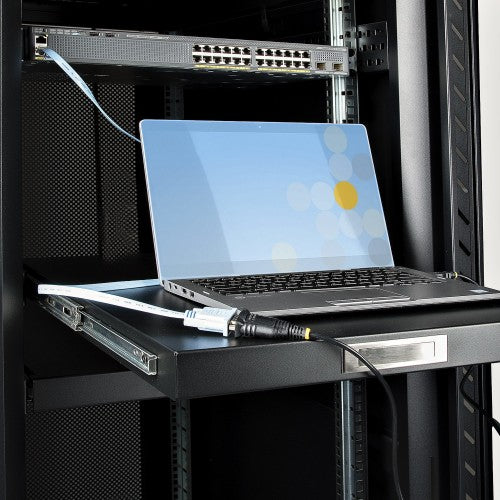

- APPLICATIONS: This USB to serial cable is ideal for IT applications such as server rooms, industrial control/automation, logistics, POS, AV installations, laboratories, etc. Continue using legacy hardware with modern systems, using this USB to RS232 cable
- USB TO SERIAL ADAPTER SPECS: 3ft (91cm) Cable Length / Max Baud 921.6 Kbps / 512 Byte FIFO / Supports Windows, macOS, and Linux / Prolific PL2303 Chipset / Odd/Even/Mark/Space/None Parity Modes / 5/6/7/8 Data Bits
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to serial port adapter is backed for 3-years, including free lifetime 24/5 multilingual technical assistance
Description
USB to Serial Cable | 921.6 Kbps | For Servers/Printers/Barcode Readers/AV | Prolific Chipset | Windows/Mac/Linux

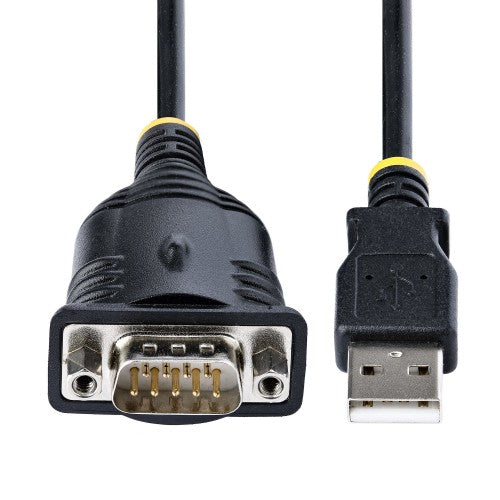

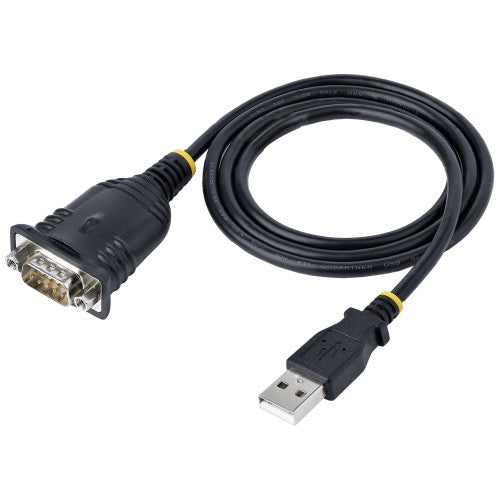

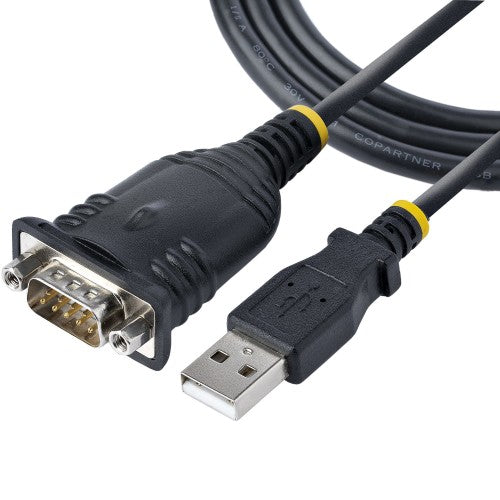

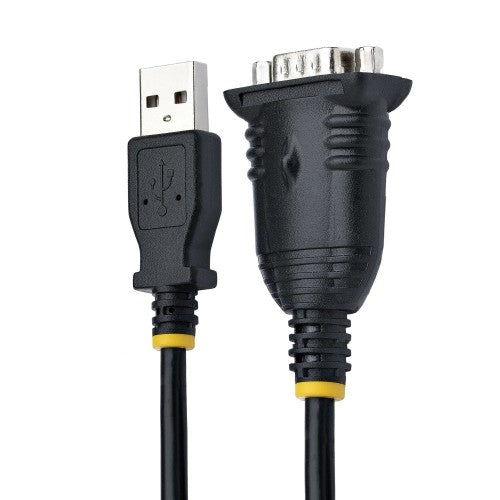

The 1P3FP-USB-SERIAL 1 Port USB to Serial Adapter lets you add an RS-232 DB9 serial COM port to your laptop or desktop computer, allowing it to control and communicate with a serial peripheral device.
Accessible Connectivity
The USB to RS232 cable is a convenient connectivity solution that bridges the gap between current and legacy technologies. The small footprint, data rate of up to 921.6 kbps, and 3 ft (0.91 m) cable length makes it the ideal solution for the IT industry, point of sales (POS), industrial applications, AV, and office setups.
Connect with Ease
This adapter cable allows you to add an RS-232 DB9 COM port by connecting it to the commonly found USB Type-A port, located on your host device. This USB 2.0 converter is compatible with other USB revisions. It supports Windows, macOS, and Linux (including the latest versions) for maximum compatibility.
1P3FP-USB-SERIAL is backed for 3-years by StarTech.com, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
USB Type-A |
| Connector 1 |
DB-9 |
| Cable length |
35.8" (0.91 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| USB version |
2.0 |
| Technical details |
|---|
| Product colour |
Black |
| Cable length |
35.8" (0.91 m) |
| Compliance certificates |
CE, RoHS |
| Design |
|---|
| Product colour |
Black |
| Cable length |
35.8" (0.91 m) |
| Performance |
|---|
| Chipset |
Prolific - PL2303RA |
| Stop bits |
1, 1.5, 2 |
| Flow Control type |
DTR/DSR, No, RTS/CTS, XON/XOFF |
| Data bits |
5, 6, 7, 8 |
| Baud rate |
921.6 Kbit/s |
| FIFO (First In, First Out) |
512 B |
| Compatible operating systems |
Windows 7, 8.1, 10, 11
Windows Server 2016, 2019
macOS 10.11 to 10.15, 11.0, 12.0, Mac OS X 13.0 Ventura
Linux 4.15.x LTS Versions Only
Chrome OS |
| Product colour |
Black |
| Parity bit |
Even, Mark, No, Odd, Space |
| System requirements |
|---|
| Compatible operating systems |
Windows 7, 8.1, 10, 11
Windows Server 2016, 2019
macOS 10.11 to 10.15, 11.0, 12.0, Mac OS X 13.0 Ventura
Linux 4.15.x LTS Versions Only
Chrome OS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 100 °C |
| Relative humidity |
20 - 80% |
| Operating temperature (T-T) |
0 - 80 °C |
| Weight & dimensions |
|---|
| Width |
1.77" (45 mm) |
| Weight |
1.38 oz (39.2 g) |
| Height |
0.63" (16 mm) |
| Depth |
1.34" (34 mm) |
| Packaging data |
|---|
| Package width |
8.66" (220 mm) |
| Package height |
7.87" (200 mm) |
| Package depth |
5.59" (142 mm) |
| Package weight |
3.6 oz (102.2 g) |
| Packaging content |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
100 pc(s) |
| Master (outer) case width |
22.4" (570 mm) |
| Master (outer) case length |
14" (355 mm) |
| Master (outer) case height |
11.4" (290 mm) |
